Vdwall LVP615S - Page 31

LVP615S
使用说明
31
knob
6.1.2 Set output image parameters
LED screen real resolution can be arbitrary. So we need set
LVP615S to output the same image as the led screen. Then the LED
screen can display whole image.

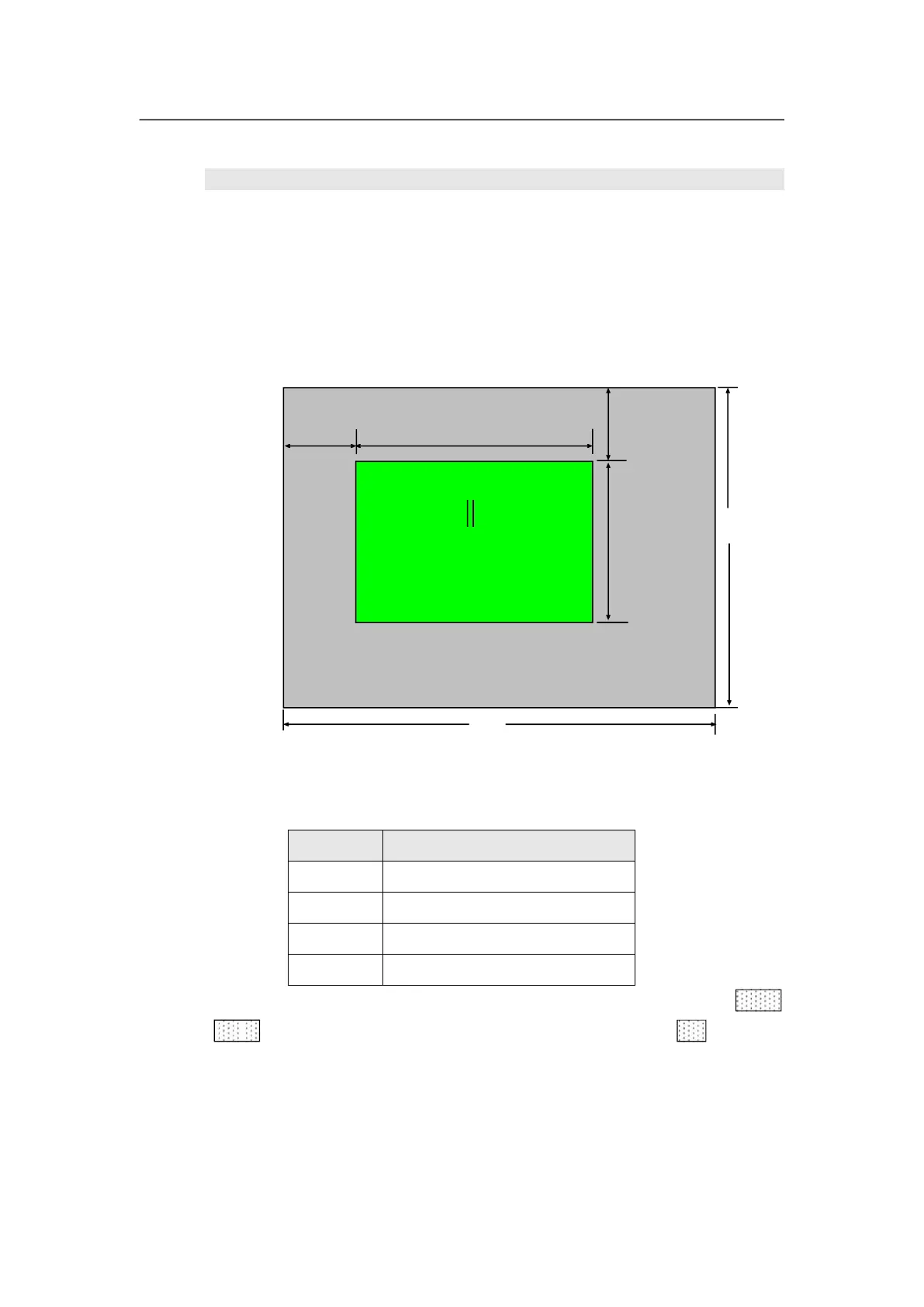

As shown in the above picture: the size and location of output
image of LVP615S can be defined in 4 parameters:
Note
：
current set parameters can be changed by rotating knob.
rotating speed can decide the step value. Press“OK”button to
save the set parameters.
1920
LVP615S output resolution = 1920×1080
Out vert height
Our vert_start
（
0
，
0
）
Out hori start_LL Out_hori_width
LED screen
LVP615S out image area
1080
Item NO.
Item name
1.2
Out_hori_width
1.3
Out_vert_height
1.4
Out_hori_start
1.5
Out_vert_start
