Setup and Operation Manual Setup Mode Categories
27
Printer Address

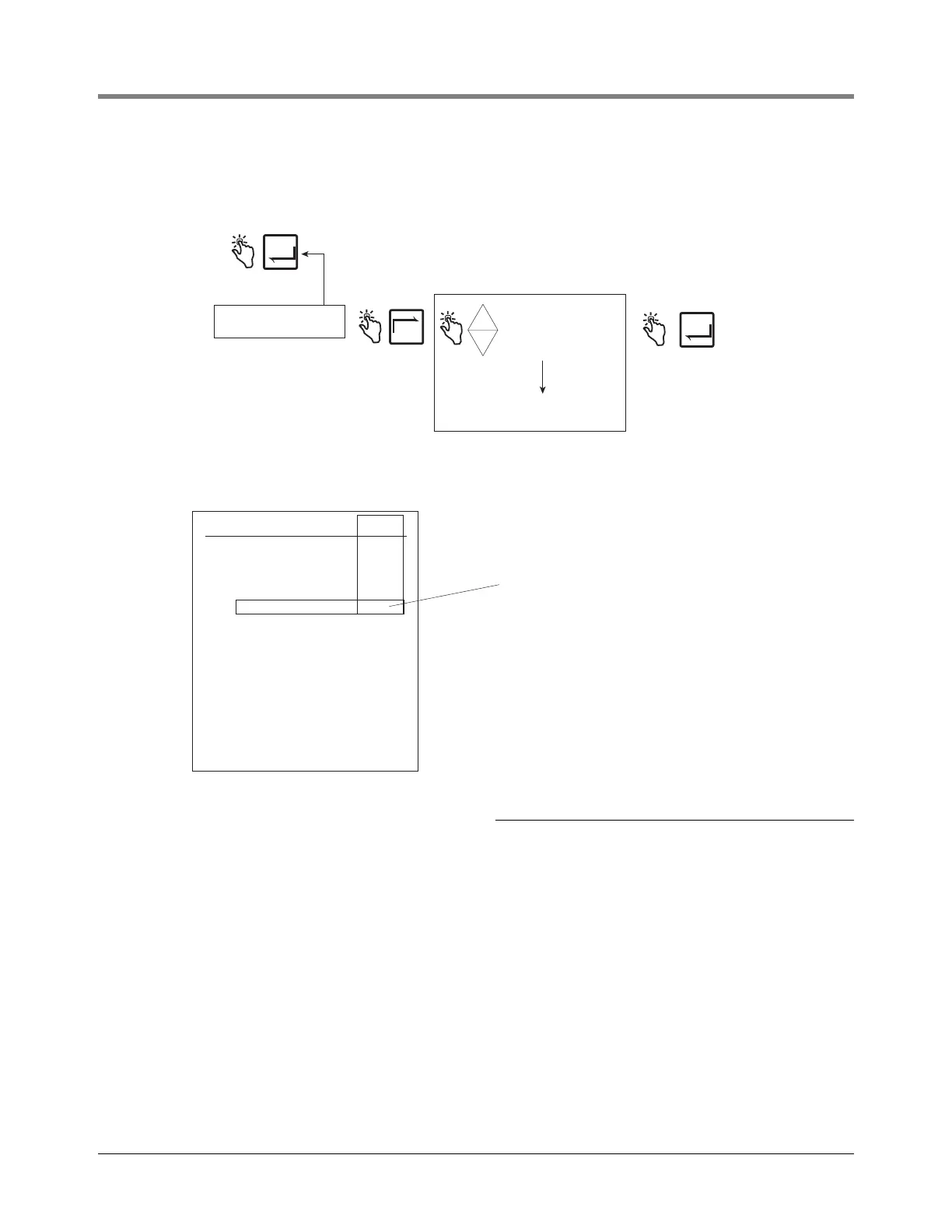

Figure 29 illustrates Printer Address setup choices.
Figure 29. Printer Address Setup
Press ENTER to accep
choice and return to
PRINTER ADDRESS.
ress ENTER to return
o SYSTEM ADDRESS
E
N
T
E
R
E
N
T
E
R
PRINTER ADDRESS LOCAL PRINTER 1
LOCAL PRINTER 2
SET PRINTER 1
SET PRINTER 32
N
E
X
T
-
+
This menu selects the printer for this Display Head. To select printer on Host IB (the IB to which this Display Head is wired),
use Local Printer 1 for printer on Port 1 (if assigned) or use Local Printer 2 for printer on Port 2 (if assigned). Use port address
from table below to print to a printer connected to an IB other than the one to which this Display Head is wired.
IB ADDRESS PORT 1 PORT 2
1 1 2
2 3 4
3 5 6
4 7 8
5 9 10
6 11 12
7 13 14
8 15 16
9 17 18
10 19 20
11 21 22
12 23 24
13 25 26
14 27 28
15 29 30
16 31 32
For example, if this Display Head is wired
to IB 3 and you would like to print to a
printer wired to Port 2 of IB 5, select
Set Printer 10 from the menu above.
To Next Page
