Special Mag Probe Installation Kits
In addition to the Mag Probe installation kits shipped with each probe (containing floats, spacer rings, cable, etc.),
your installation may also require one or more of the special kits described in this section.
AST Installation Kit
This kit is recommended when installing Mag Probes into an above ground storage tank (AST). This kit contains a
length of flexible conduit, connectors, etc., for easier probe access. The kit contents are listed in Table 1 and
shown in Figure 3.

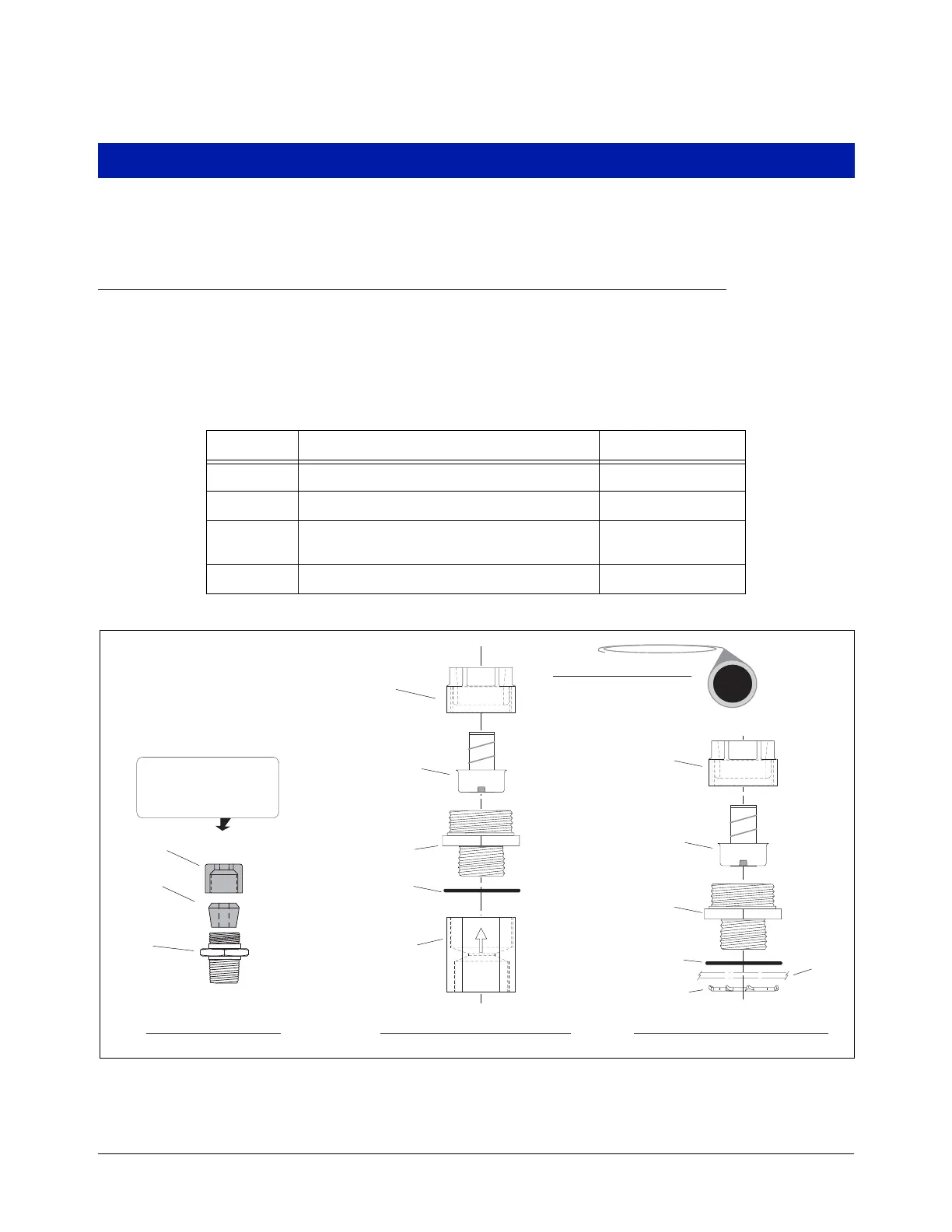

Figure 3. Mag Probe AST Installation Kit
Table 1. Mag Probe AST Installation Kit - Part No. 312020-984
Quantity Description Part Number
5 feet 3/8” Flexible Conduit 576008-294
1 3/8” Adapter Nut 329972-002
2
3/8” Straight Liquidtite Connectors And
Related Parts 576008-295
1 Cord Grip Group 331028-001
Locking nut
J-box
O-ring
Body
fitting
Ferrule
Nut
Nut
Ferrule
Body
fitting
O-ring
Adapter Nut
(Connects to riser cap)
3/8'' Flexible Conduit
3/8'' Liquidtight Connector Assembly
At Riser Cap
3/8'' Liquidtight Connector Assembly
At J-Box
(Plastic coated 5-foot
length, 0.72 '' OD x 0.42'' ID)
probes/astkit.eps
Cord Grip Fitting
Body
Cord Grip
Nut
Note: watch orientation
of bevels and tapers
when assembling these
cord grip components.
Bushing
