Mag Probe Installation UST Installation - Vapor Extractor Riser W/O Coupling Adapter

WARNING! If Ball Float Check Valve was part of your Overfill Protection System, you now need to

consider another form of overfill protection (i.e. TLS console alarm, a drop tube with overfill

protection valve or some other accepted means).

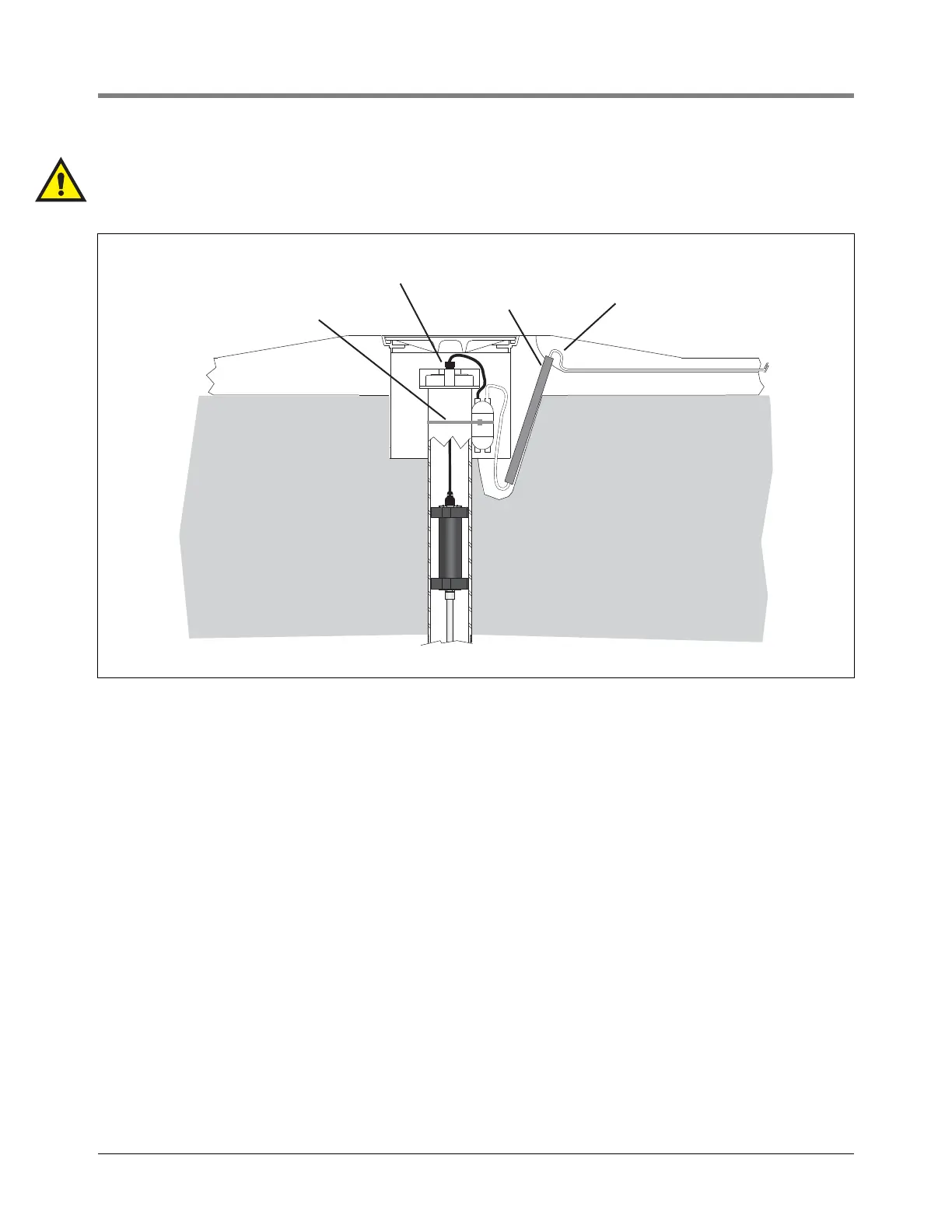

Figure 14. Mag Probe Vapor Extractor Riser Installation - W/O Coupling Adapter

879-18.eps

Tie wrap securing splice

enclosure to riser

Riser cap with cord grip

Flex Conduit

Direct Burial

Cable
