Special Mag Probe Installation Kits Riser Cap Kit for Mag Probe Installations
9
Riser Cap Kit for Mag Probe Installations
The cap on the riser containing the Mag Probe must be modified to allow the probe’s cable to exit the riser. This
modification requires making a 1/2”-14 NPT tapped hole in the cap for a cord grip. Two types of drilled and
tapped Riser Cap kits are available for purchase, or you may be able to modify the existing riser cap.
CAP AND CORD GRIP KIT
This Riser Cap kit (Table 4) contains a non-metallic cap which screws onto the 4” NPT riser (Figure 6). The cap
comes drilled and tapped with a cord grip.

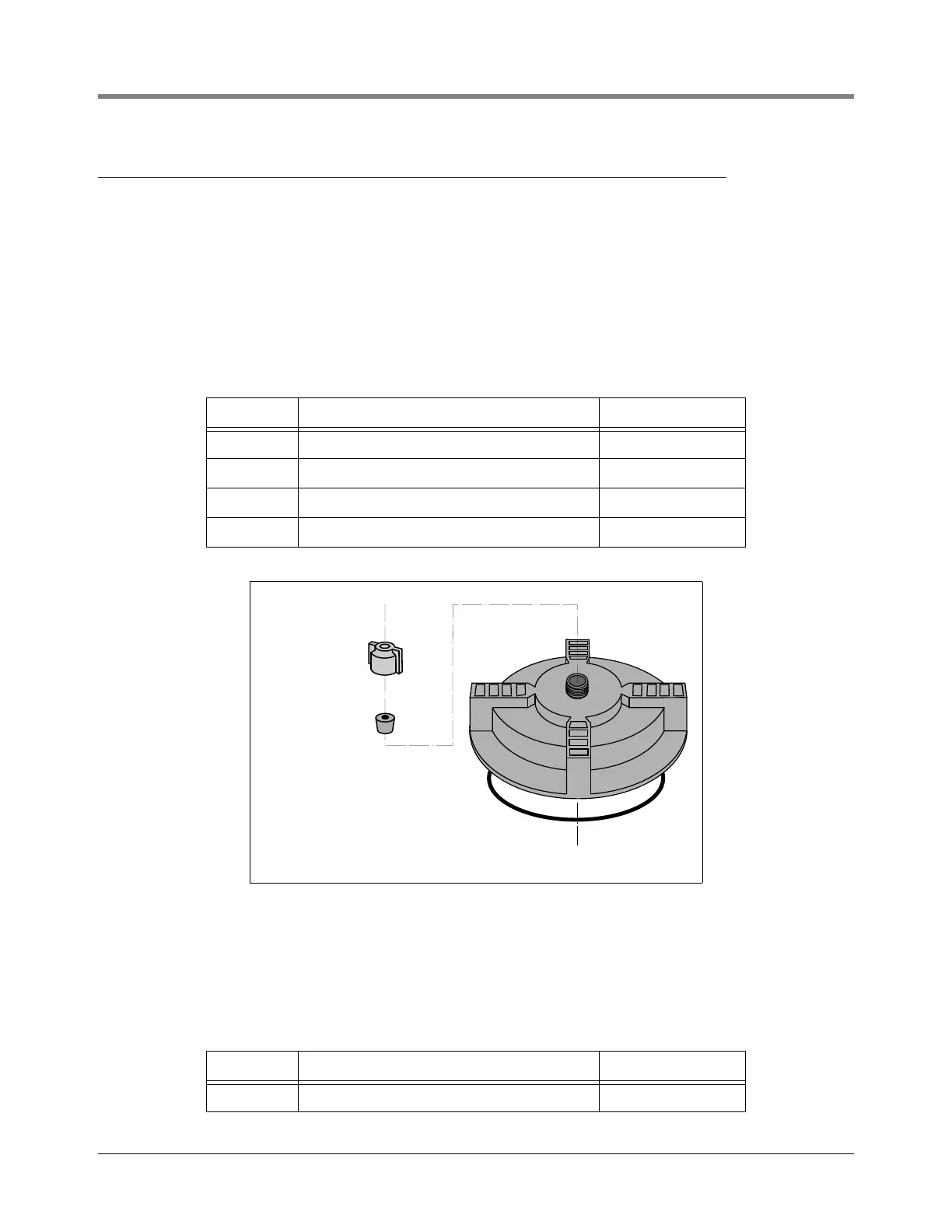

Figure 6. Cap And Cord Grip Kit
METAL CAP AND RING KIT
This riser cap kit contains an adapter ring which screws onto the 4”NPT riser and a quick-release metal cap which
clamps onto the ring (Table 5). The cap comes drilled and tapped with a cord grip (Figure 7).
Table 4.- Cap and cord grip kit - Part No. 330020-282
Quantity Description Part Number
1 Cap Riser 331106-001
1 Gasket 331140-001
1 Bushing - Cord Grip 330787-001
1 Nut - Cord Grip 330594-001
Table 5.- Metal cap and ring kit - Part No. 312020-952
Quantity Description Part Number
1 Adapter Ring And Gasket 514100-332
probes\risrcap.eps
4" NPT Riser Cap and Gasket
Cord Grip Bushing
Cord Grip Nut
