Special Mag Probe Installation Kits Vapor Extraction Riser Kit W/ Coupling Adapter

Vapor Extraction Riser Kit W/ Coupling Adapter

This kit contains parts needed to install a Mag Probe into a Vapor Extractor Riser that has a Coupling Adapter

(parts listed in Table 2 and shown in Figure 4):

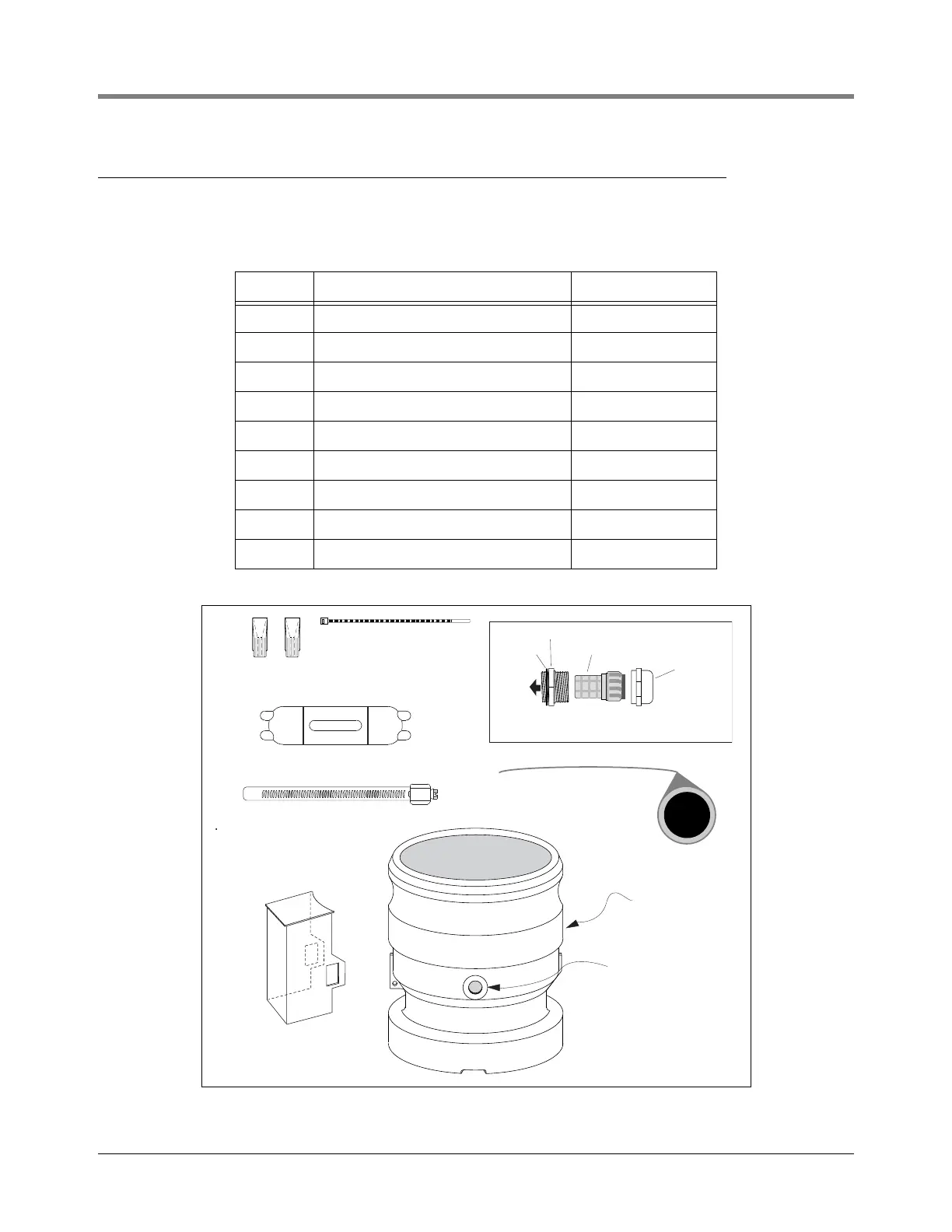

Figure 4. Mag Probe Vapor Extractor W/coupling Adapter Installation Kit

Table 2. Vapor Extraction Riser Kit (w/ coupling adapter) - Part No. 846500-001

Quantity Description Part Number

2 Wire Nut 576008-461

1 Cable Tie 576008-482

1 Splice Enclosure 514100-357

1 Splice Kit Instructions Manual 576013-861

1 PG7 / 1/4” Cord Grip Fitting 576008-637

1 Modified OPW Adapter 331448-001

1 Shield -Fitting 331449-001

1 4” Hose Clamp 576008-638

12 inches Flex Conduit 576008-294

probes\vapradpt.eps

1/4 NPT tapped hole

for cord grip fitting

Modified OPW

Adaptor

Fitting - PG7 / 1/4" NPT Cord Grip

Shield - Fitting

4" Hose Clamp

12 Inches Flexible Conduit

Splice Enclosure

Cable Tie

Wire Nuts

O-ring

Threaded Fitting

Nylon Splined Bushing

Dome Nut

This end

screws

into OPW

Adaptor
