Special Mag Probe Installation Kits Riser Cap Kit for Mag Probe Installations
10

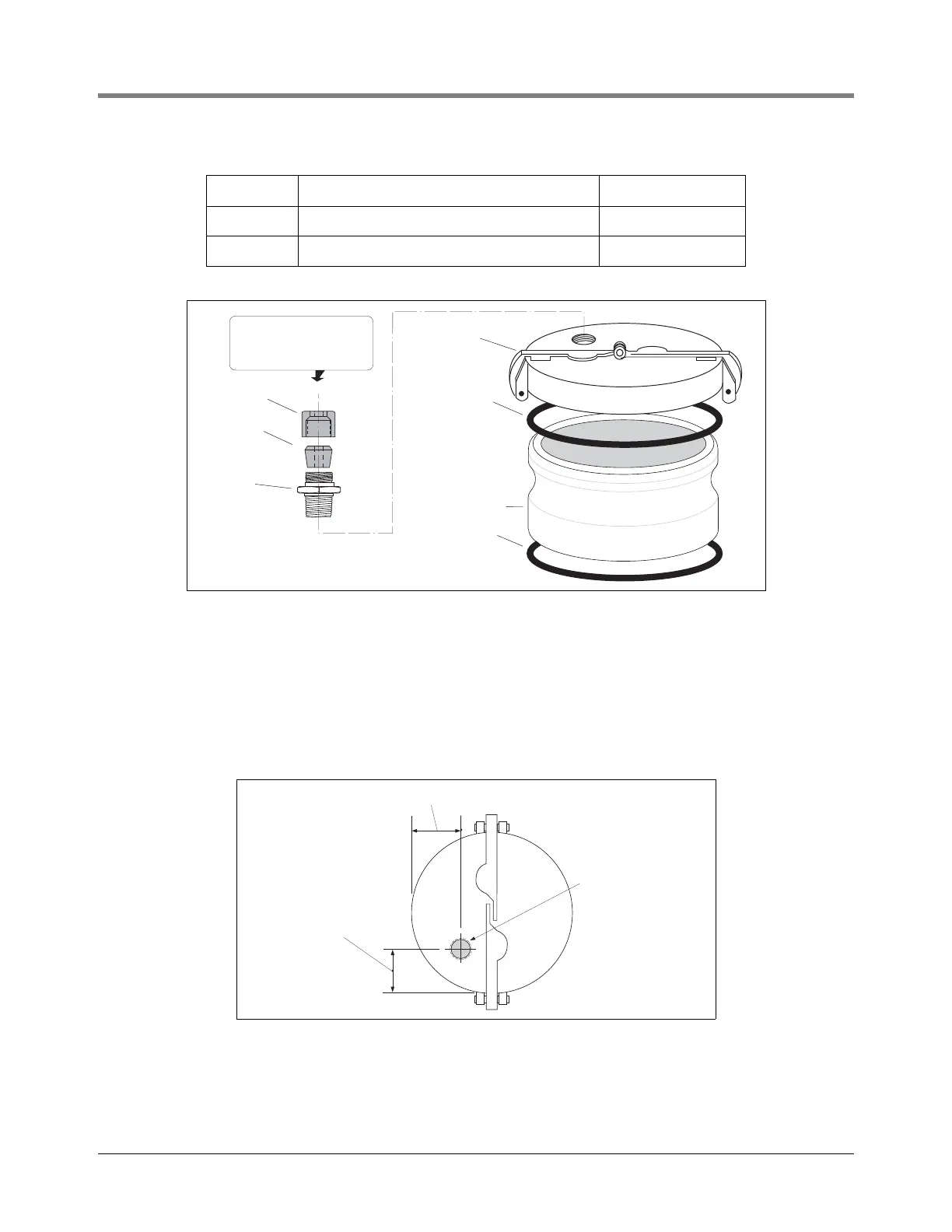

Figure 7. Metal Cap And Ring Kit
Modifying an Existing Metal Cap
In order to ensure that the riser cap seals properly to the probe cable and riser, we recommend that you purchase
one of the kits available for this purpose. Riser Caps from other manufacturers may require modification. If you use
your own metal riser cap, you must drill and tap it for a cord grip fitting (P/N 331028-001) as follows.
1. Remove the cap to a non-hazardous location.
2. Drill and tap the cap for a 1/2”-14 NPT cord grip thread [Figure 8].
Figure 8. Modifying An Existing Metal Riser Cap
1 Cap And Gasket 327869-003
1 Group Cord Grip 331028-001
Table 5.- Metal cap and ring kit - Part No. 312020-952
Quantity Description Part Number
Cord Grip Fitting
Body
Cord Grip
Nut
Adapter ring
Cap gasket
Metal cap
w/1/2" NPT
tapped hole
Note: watch orientation
of bevels and tapers
when assembling these
cord grip components.
Bushing
Ring gasket
probes\cap&ring.eps
1.438 ±0.062 (36.53 ±1.6)
1.625 ±0.062 (41.27 ±1.6)
1/2" - 14 NPT hole
probes\prbricp.eps
