Torques
Max. torques
Ʋ Mounting screws, mounting strap on
sensor housing
4 Nm (2.950 lbf ft)
Ʋ Flange screws, compression ange
DN 80
5 Nm (3.689 lbf ft)
Ʋ Terminal screws, adapter ange -
antenna
2,5 Nm (1.844 lbf ft)
Ʋ Flange screws, adapter ange DN 100 7 Nm (5.163 lbf ft)
Max. torques for NPT cable glands and Conduit tubes
Ʋ Plastic housing 10 Nm (7.376 lbf ft)
Ʋ Aluminium/Stainless steel housing 50 Nm (36.88 lbf ft)
Input variable
Measured variable The measured quantity is the distance between the
end of the sensor antenna and the product surface. The
reference plane for the measurement is the lower side of
the ange.
3
4
2
1

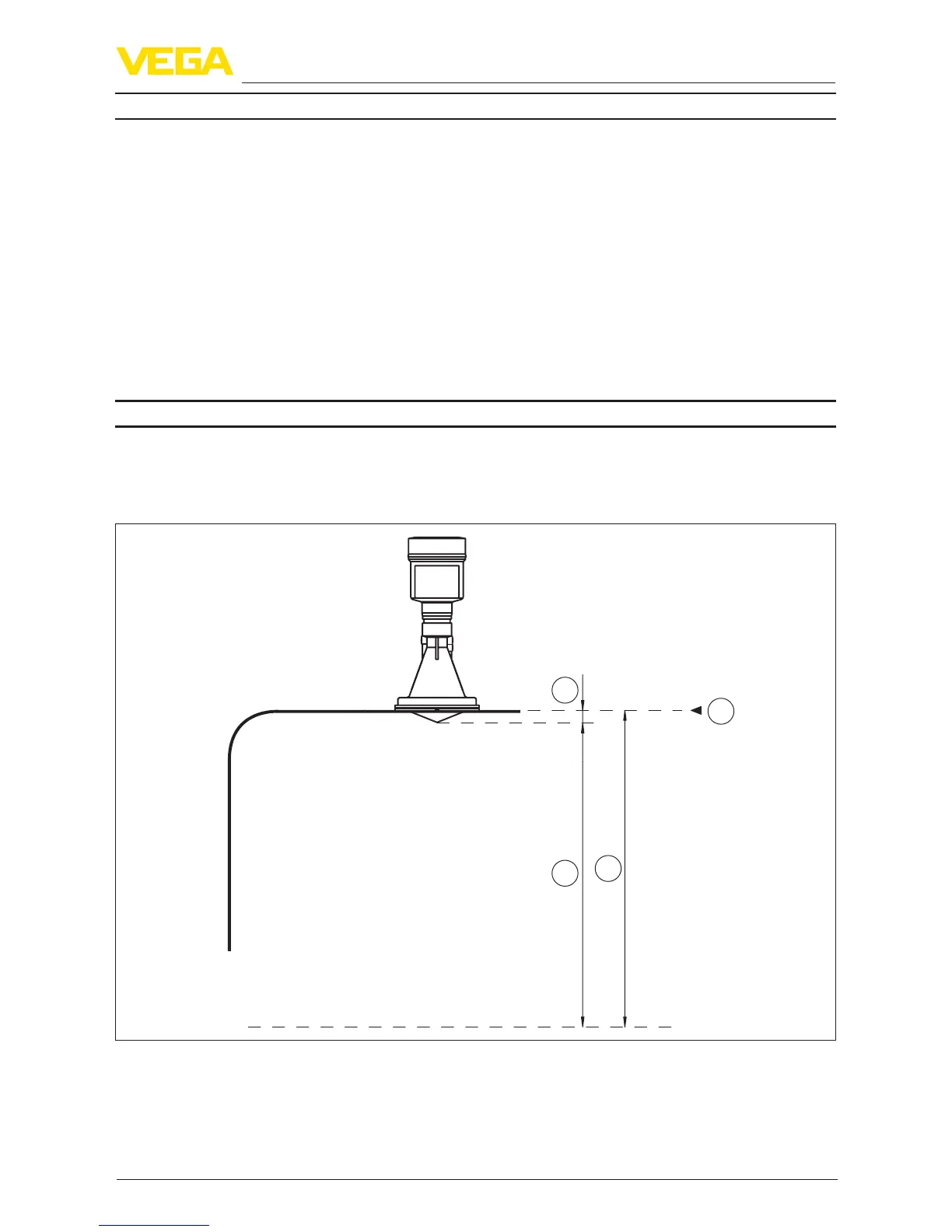

Fig. 53: Data of the input variable
1 Reference plane
2 Measured variable, max. measuring range
3 Antenna length
4 Utilisable measuring range
