8 | 3578 • CB500 VENDOR
Adjust the back spacer, latch striker or gate assembly to achieve the required
dimension. The Vend Rack has been factory set for most 20-oz. bottles or 12-oz. cans.
If vending 16.9-oz water bottles, remove Filler (4211816) from the back of the inner
door and install it in the Vend Rack. Follow instructions on Filler decal.
The vend rack has been factory set for most 20-oz bottles or 12-oz cans.

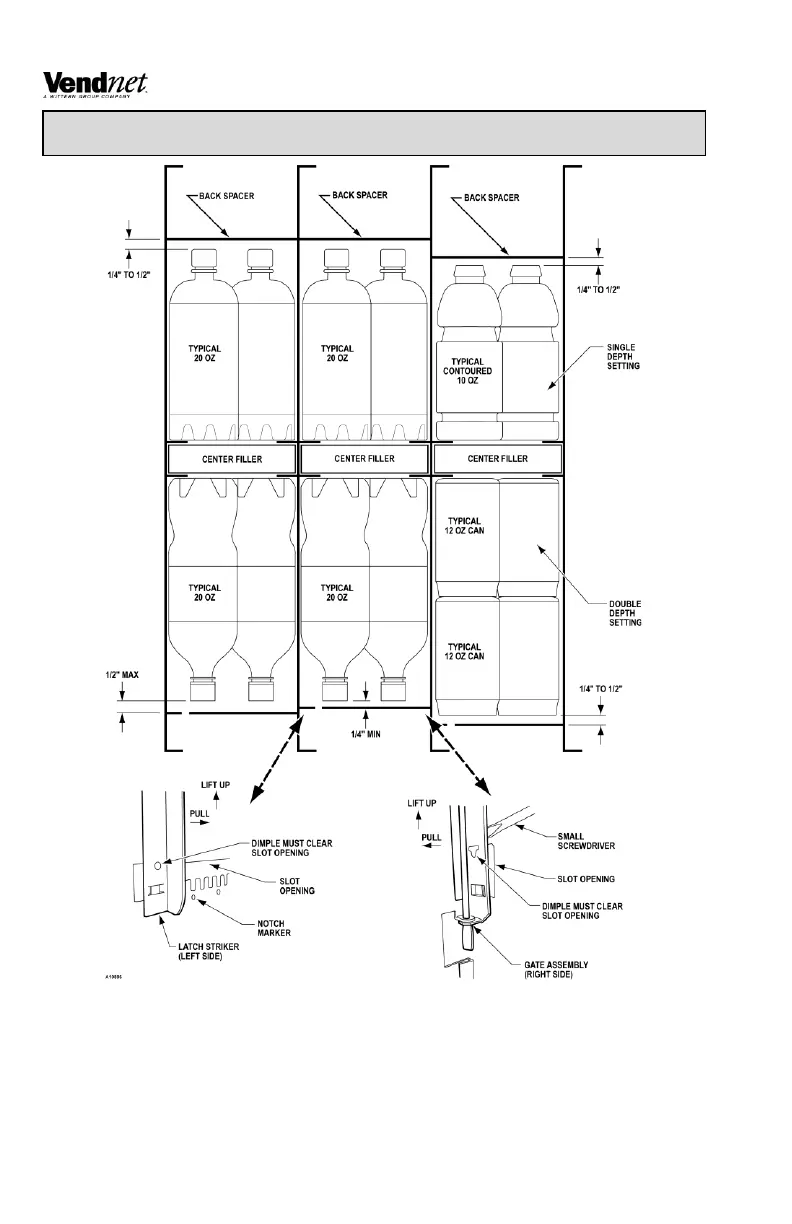

Figure 4. Column Depth
