2.1 Integrated Control
BOOTING SEQUENCE
The unit booting sequence is similar to a personnal computer boot sequence.
Each time the unit is plugged after being unplugged, or after a power failure, the
unit will perform a 30-second booting sequence before starting to operate.
During the booting sequence, the integrated control LED will light GREEN for 5
seconds, and then will turn RED. During this RED light phase, the unit is checking
and resetting the motorized damper position. Once the motorized damper position
completely set, the RED light turns off and the booting sequence is done.
NOTE: No command will be taken until the unit is fully booted.
2.
Controls

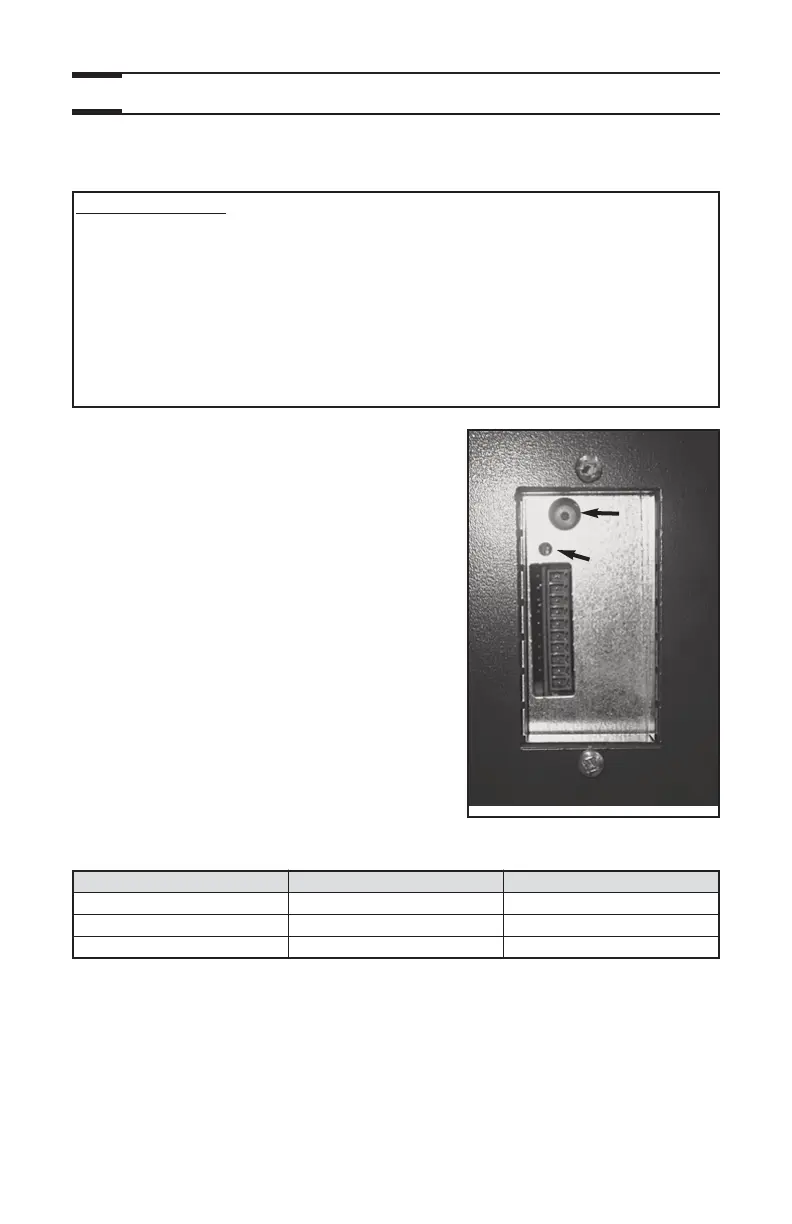

All units are equipped with an integrated control,
located on the upper left side of the unit.
Use the push button (1) to control the unit.
The LED (2) will then show on which mode the
unit is in.
Refer to table below to see how to operate the unit using its integrated control.
PRESS ON PUSH BUTTON LED COLOR RESULTS
ONCE AMBER UNIT IS ON LOW SPEED
TWICE GREEN UNIT IS ON HIGH SPEED
THREE TIMES NO LIGHT UNIT IS OFF
1
2
VE0220
If a problem occurs during the unit operation, its integrated control LED (2) will
blink. The color of the blinking light depends on the type of error detected. Refer to
Section 4
Troubleshooting
on last page for further details.
NOTE: WHEN USING MAIN CONTROL, THE INTEGRATED CONTROL MUST
BE TURNED OFF.
