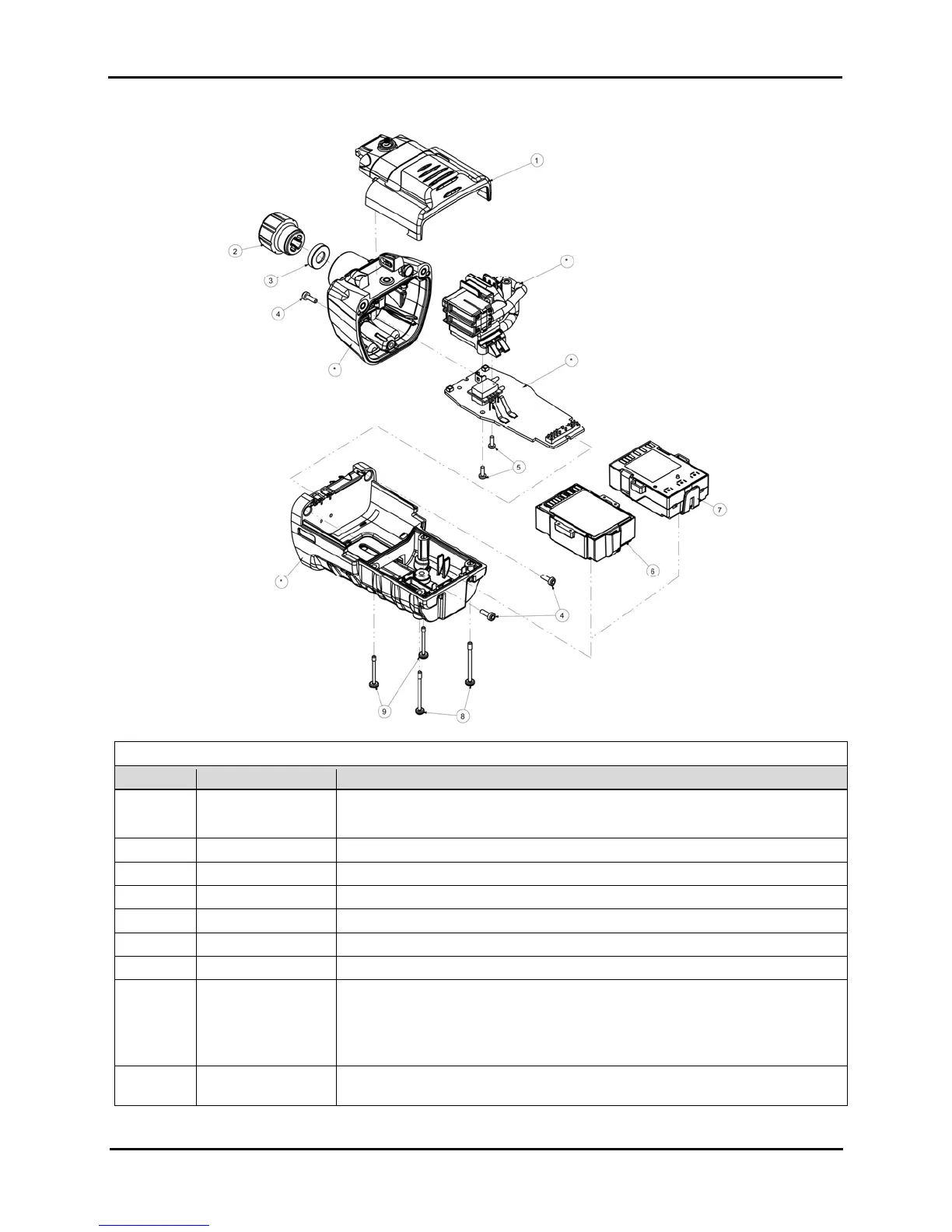

VENTIS MX4 PUMP MODULE THREE-DIMENSIONAL DIAGRAM
1 17151150-X0 Ventis MX4 Pump Door Assembly
X = Pump Door Assembly Color, where: 0 = Black, 1 = Orange
(captive screw torque value: 55 oz. in. or .39 n.m . +/- 10%)
2 17129909 Pump Inlet Filter Cap
2 17141581 Pump Inlet-Filter Cap for use 6’ extendable probe
2 17141599 Filter Cap, 1/8 NPT Female
3 17152395 Water Barrier
4 17151275 Screw, Torx (torque value: 55 oz-in or .39 N.m +/- 10%)
5 17052558 Screw (torque value: 25 oz-in or .17 N.m +/- 10%)
6 17148313-Y Extended Range Lithium-ion Battery Pack
Y = Approval where:
1 = UL, CSA, ATEX, IECEx, INMETRO, GOST-R, GOST-K, and KOSHA
2 = MSHA
3 = China Ex
4 = ANZEx
7 17150608 Alkaline Battery Pack: UL, ATEX, IECEx, ANZEx, and INMETRO approvals
(CSA, China KA and China MA approved for diffusion monitor only.)
