ELECTRICAL INSTALLATION
11 B001686

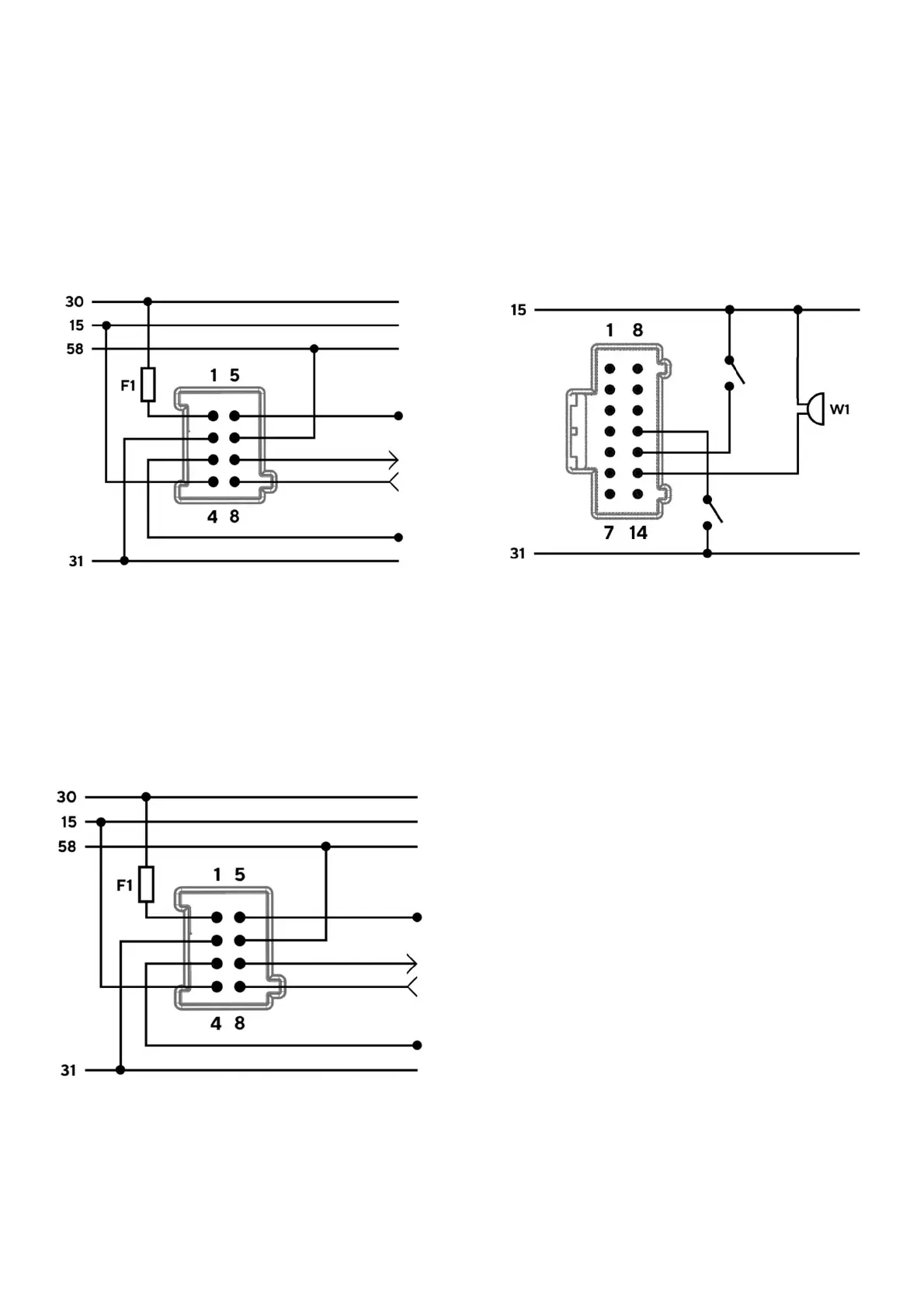

CONNECTION DIAGRAMS
TACHOMETER WITH LCD
Designations in the wiring diagrams:
30
–
Term. 30
–
steady
-
state plus 12 V
31
–
Term. 31
-
ground
15
–
Term. 15
–
connected (ignition) plus
F1
–
Fuse 5A quick
-
response
58
–
Term. 58
-
lighting
W1
–
Alarm output (max. 100 mA)
TACHOMETER WITHOUT LCD
Designations in the wiring diagrams:
30
–
Term. 30
–
steady
-
state plus 12 V
31
–
Term. 31
-
ground
15
–
Term. 15
–
connected (ignition) plus
F1
–
Fuse 5A quick
-
response
58
–
Term. 58
-
lighting
Sensor
signal
to PC
interface
Sensor
ground
Mode
key
Config
key
Sensor
signal
to PC
interface
Sensor
ground
