Veratron VIEWLINE A2C59512390 User Manual

CONFIGURATION WITH LCD
13 B001686
SETTING THE UNIT AND ALARM THRESHOLD
1. Activate T. 30 (8
-
pin
-
Pin1)
2. Deactivate T. 15 (8-pin - Pin4)
3. Press and hold Mode key (14-pin - Pin 12)
4. Activate T. 15
5. Release Mode key

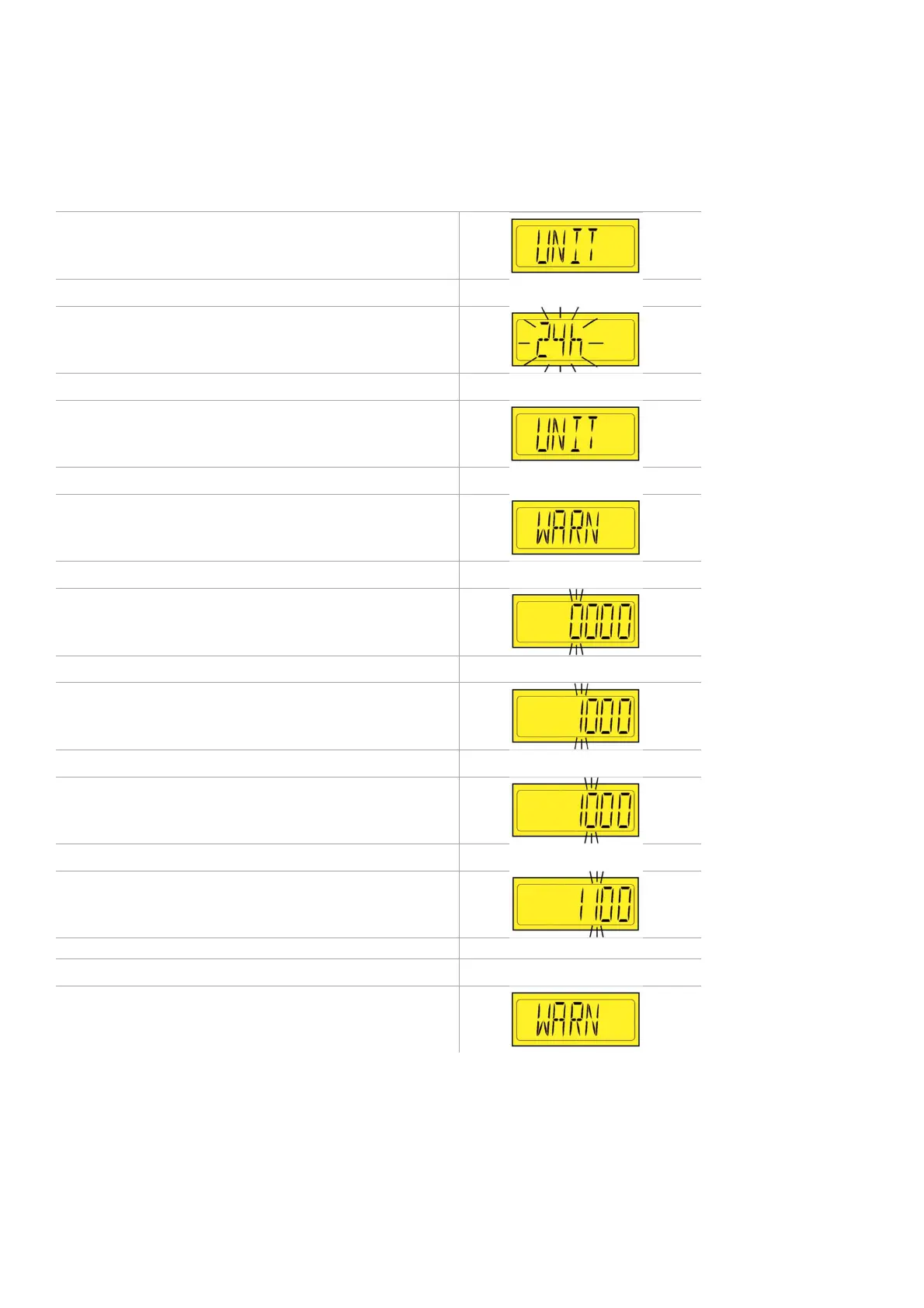

Press and hold Mode key.
By briefly pressing the Mode key, you can switch
between 24h and 12h (AM/PM) clock format.
Press and hold Mode key.
Press Mode key briefly.
Press and hold Mode key.
Set alarm threshold is displayed; the first digit
flashes.
Press Mode key briefly.
The flashing digit increases by 1. If the flashing digit
is “9”, the display returns to “0”.
Press and hold Mode key.
The next lower digit flashes.
Press Mode key briefly.
The flashing digit increases by 1. If the flashing digit
is “9”, the display returns to “0”.
Continue until the complete alarm threshold is set.
Press and hold Mode key.
Deactivate T. 15. This saves the unit and the alarm
threshold in the display.

Veratron VIEWLINE A2C59512390 Specifications

General

Brand	Veratron
Model	VIEWLINE A2C59512390
Category	Measuring Instruments
Language	English
