SETUP
Cable Connections
P400/P400 P
LUS INSTALLATION GUIDE 21
Powered USB
Connection
A PoweredUSB cable allows for devices to obtain power through their USB host
instead of requiring an independent power supply or external AC adapter.
Connect the cable (VPN - CBL282-033-01-A) to the P400 and plug the male USB
connector into the corresponding USB port of the connecting device.

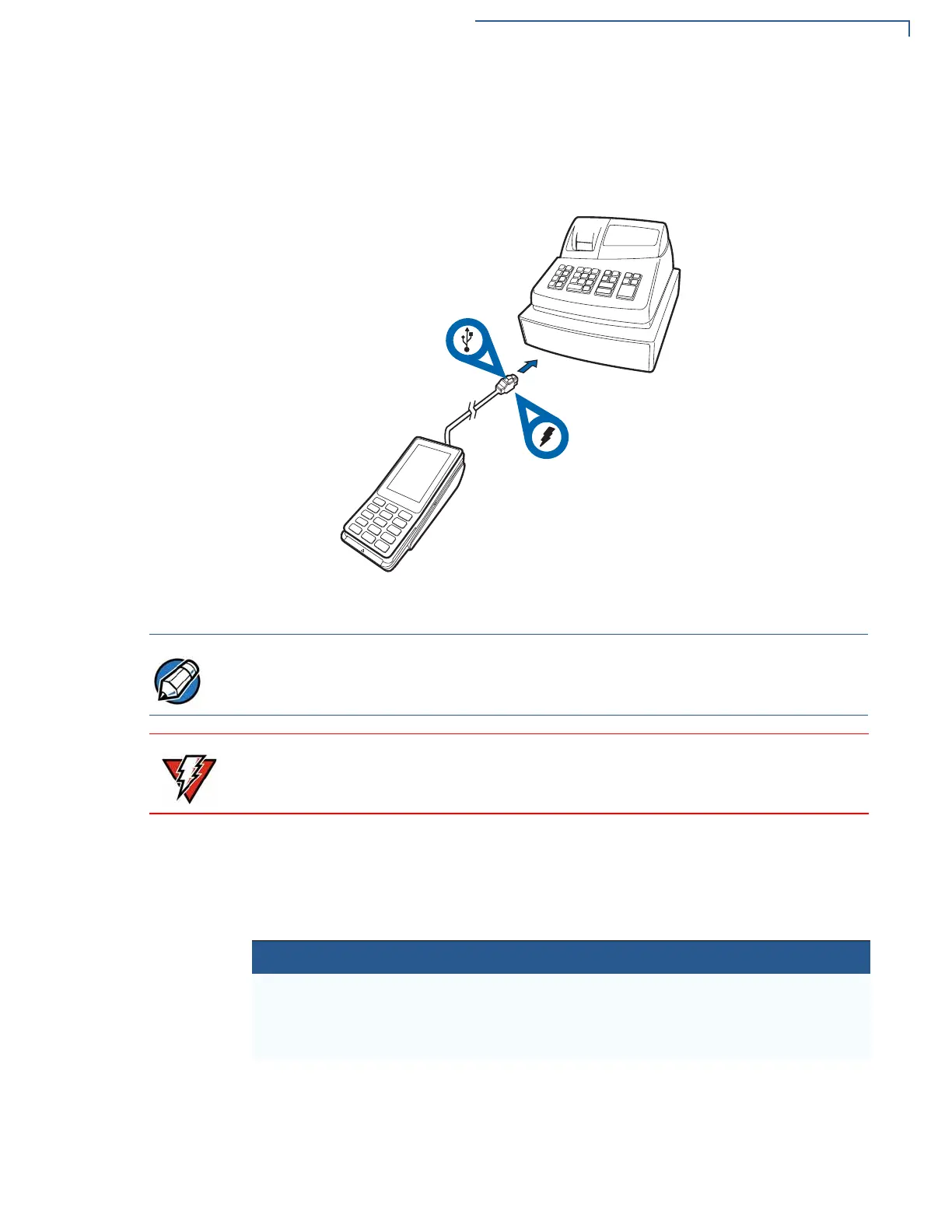

Figure 13 Connecting to USB-Based Host via PoweredUSB.
Ethernet
Connection with
External Power
Brick
To connect the terminal to other devices via Ethernet, use the cable with a
junction box that provides a standard RJ-45 LAN socket, a mini-USB port, and a
standard DC jack for an external power connection.
The junction box comes in these configurations:
There are two variants of PoweredUSB, one with 12 V DC output and another with
24 V DC. The P400 only supports 12 V DC option.
Incorrect power sequence may degrade the SoC Host port.
Cable Configuration Part Number
Ethernet with RS232 Junction box with RJ-45 socket (for
connecting PINPad to LAN
infrastructure), MOD-8 socket & DC-in
jack
CBL282-006-01-B
