DEVICE SETUP
Device Features
16 E280 INSTALLATION GUIDE
Device Features
Familiarize yourself with the features before continuing with the installation
process.

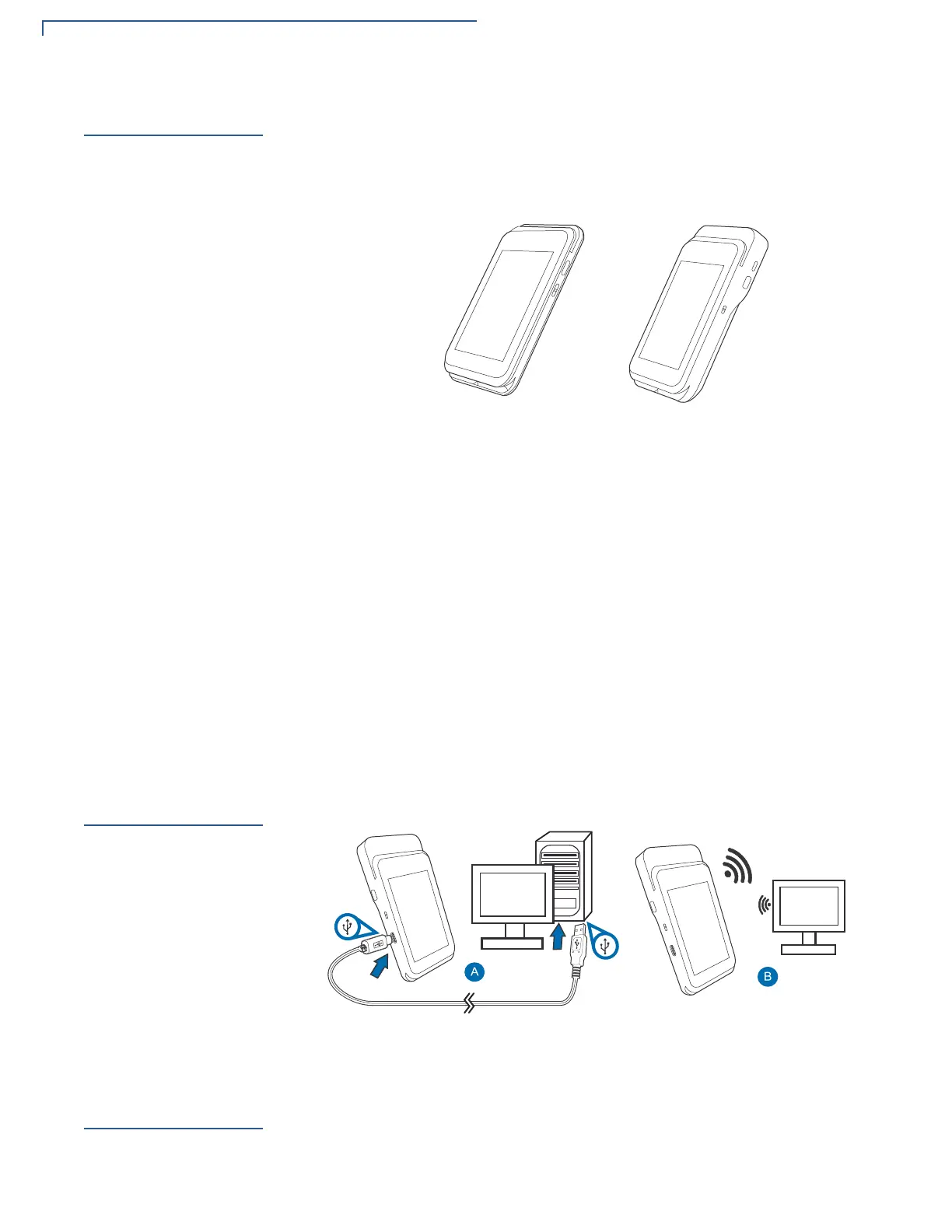

Figure 2 e280 and e280s V2 Device Features (Front Panel)
Front Panel
The front panel includes the following features:
• The e280/e280s V2 device has a colored capacitive-touch LCD Display.
• A smart card reader is built into the bottom of the device to process smartcard-
based debit or credit transactions. For directions on how to use a smart card,
see
Using the Smart Card Reader.
• A magnetic card reader is built into the top part of the device for performing
debit or credit card transactions. The card can be swiped from either direction.
To ensure a proper read of the magnetic swipe card, insert the magnetic card
from left to right, magnetic stripe facing the back using the proper direction,
with the magnetic stripe facing up. For directions on how to use a magnetic
card, see
Using the Magnetic Card Reader.
Examining
Connection Port
The e280 device has one primary USB-C port for power-up and download.
Figure 3 The e280s V2 Primary USB-C Port
Using the
Battery
The e280 device uses a single cell Li-ion battery. The internal logic of the battery
prevents both overcharging and undercharging (a fault condition in which the
battery level goes well below the minimum acceptable charge and the battery
becomes unusable).
