SETUP
Connection Ports
16 M400 INSTALLATION GUIDE
Connection
Ports
The terminal has two ports available: USB Type C port for power and
communications connection, and a Micro-USB port connector.
Connecting Cables
and other Devices
To connect required cable connections and other devices:

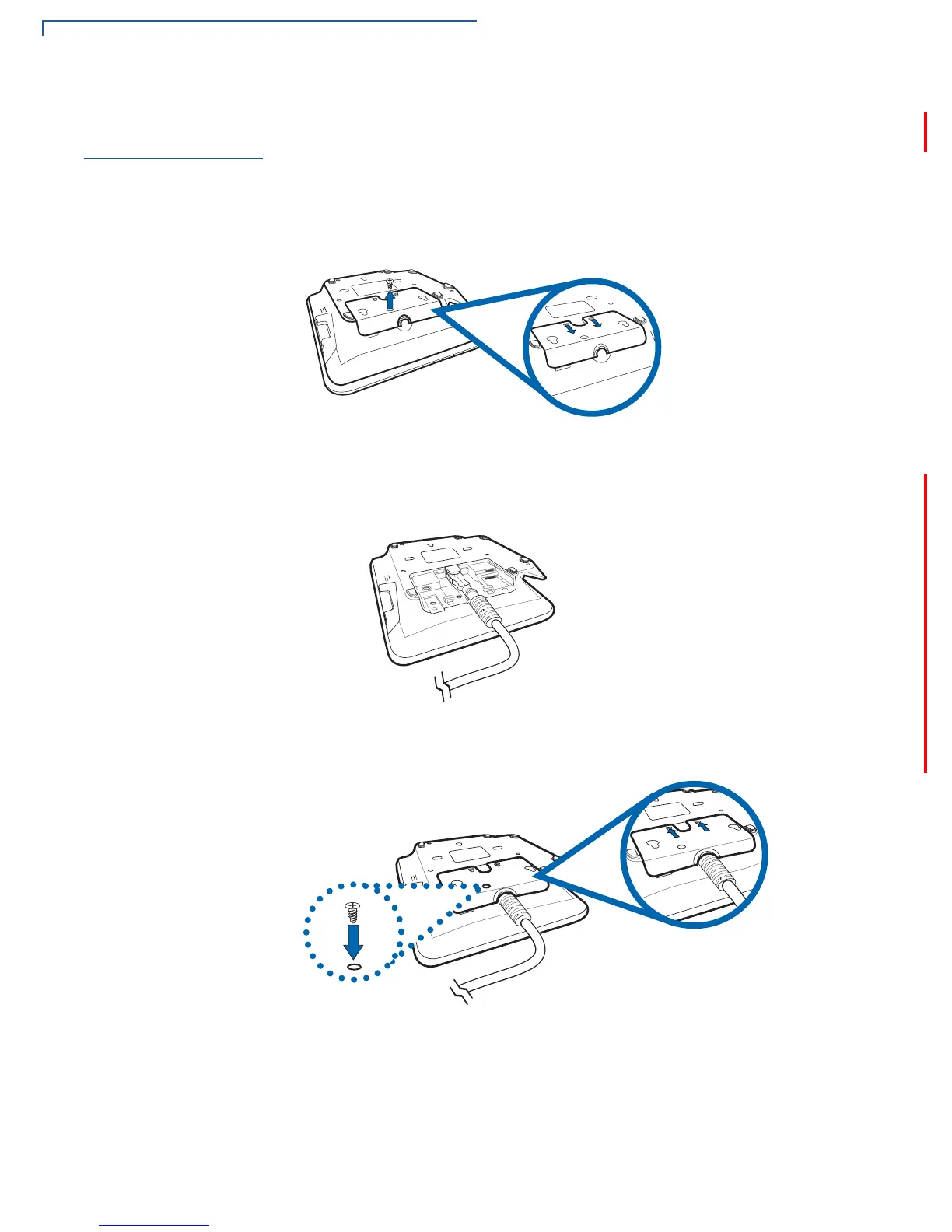

1 Unscrew and remove cable cover as shown below.
Figure 3 Removing Cable Cover
2 Connect required cable connections or optional devices. Attaching the USB C
Cable provides multiple connection options. See Figure 7 for reference.
Figure 4 USB Type C Cable Connected on the Rear of the Unit
3 Close cable compartment as shown below (optional).
Figure 5 Closing Cable Compartment with Cable Cover
