Getting Started Guide - Moneris UX 301 with Direct Connect 6
2.3 Connecting the components
2.3.1 Connect UX301 to UX100

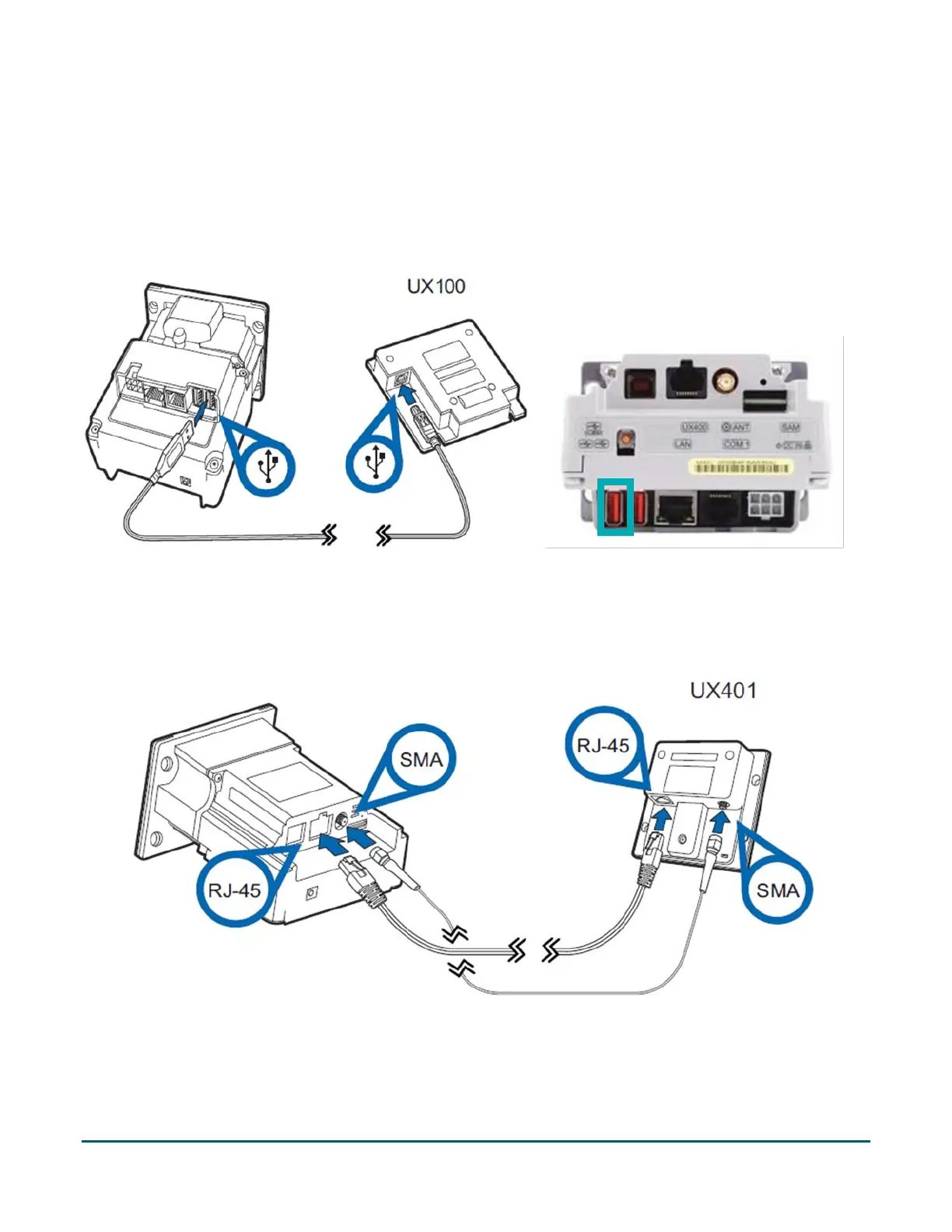

Connect the UX301 to the UX100, as shown in the following illustration, using the USB cable (CBL000-
045-01-A) provided. There are 2 USB ports next to the LAN port on the UX 301. Use the USB port that
is further away from the LAN port.
2.3.2 Connect UX301 to UX401 Contactless Reader
Connect the UX301 to the UX401 contactless card reader, as shown in the following illustration, using the RJ-45
(CBL159-302-03-A) and SMA (CBL159-313-02-A) cables provided.
