DEVICE SETUP
Loading Paper Roll in the Device
V210 I
NSTALLATION GUIDE 19
2 Remove the old card, if any, and install the MSAM card by carefully sliding it
into the slot (with the gold contacts facing downward) until fully inserted.

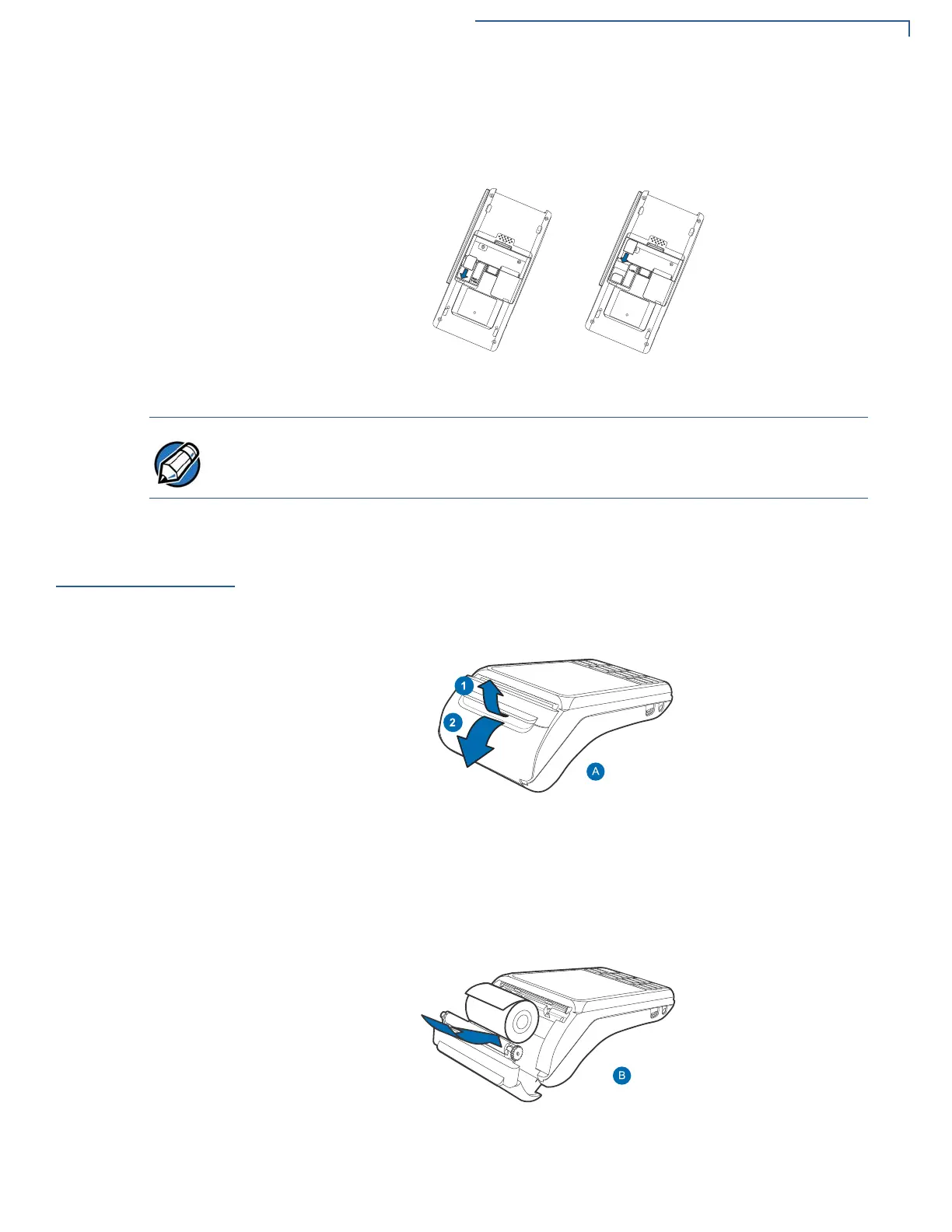

Figure 8 Insert Mini MSAM
Loading Paper
Roll in the
Device
Use the following steps to load a roll of 57mm x 40mm thermal printer paper into
the compartment.
1 Unlock the paper compartment by pulling up the latch and swinging the door
downwards.
Figure 9 Opening Printer Paper Door
2 Load the paper roll as shown in Figure 10, with the edge of the paper on the
top of the roll.
Figure 10 Procedure for Loading Paper Roll
Insert the card with the card’s gold contacts facing away from you, towards the
unit.
