DEVICE SETUP
Using the Smart Card Reader
V210 I
NSTALLATION GUIDE 23
The Full-Feature Base features the following:
Using the Smart
Card Reader
The smart card transaction procedure can vary depending on the application.
Verify proper procedure with your application provider before performing a smart
card transaction.

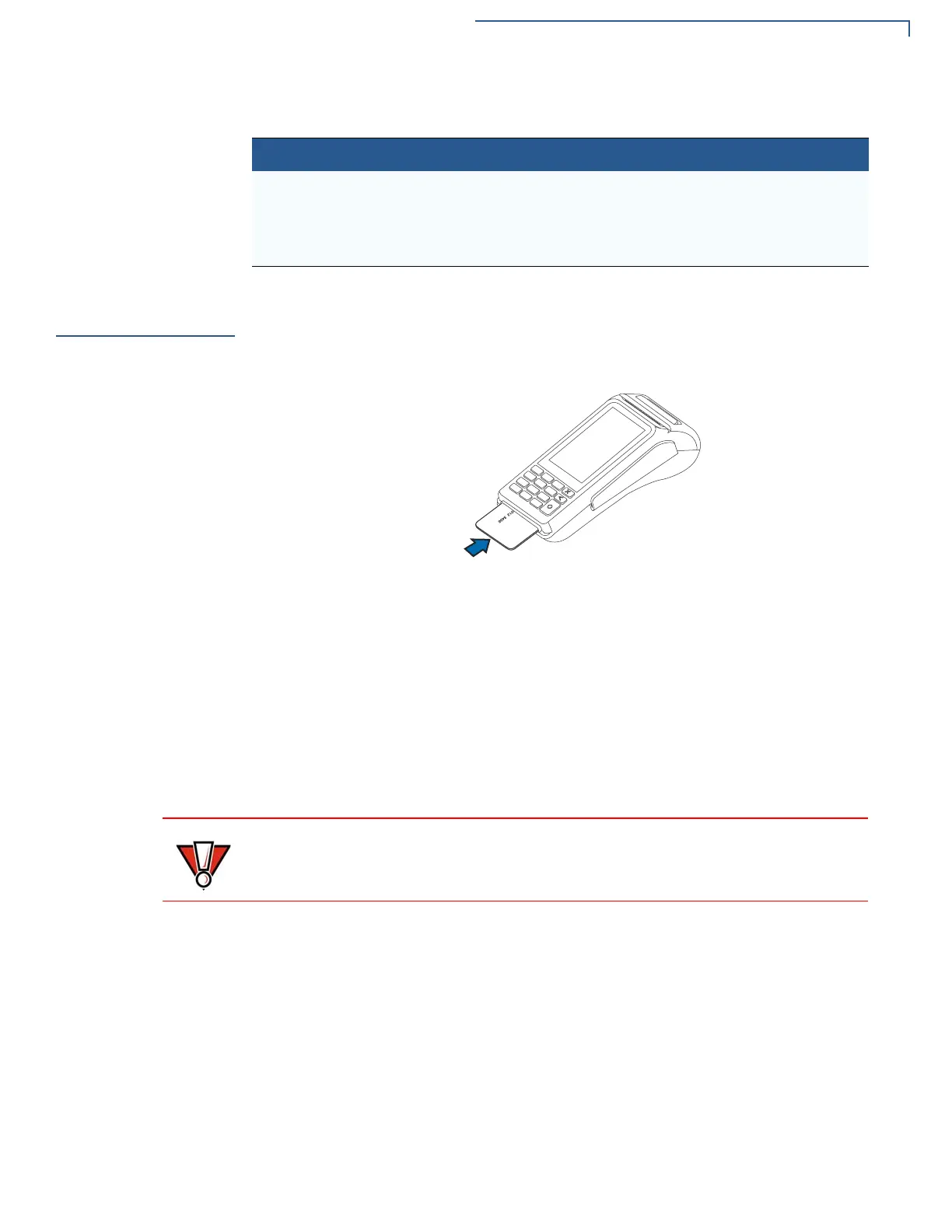

Figure 14 Using the Smart Card Reader
Conducting a Smart
Card Transaction
To conduct a smart card transaction:
1 Position the smart card with the gold contacts facing upward.
2 Insert the card into the smart card reader slot in a smooth, continuous motion
until it seats firmly.
3 Remove the card when the display indicates the transaction is completed.
Cable Configuration
Ethernet port RJ-45 socket (for connecting PINPad to LAN infrastructure)
RS232 port RS232 socket (for connecting PINPad to LAN infrastructure),
MOD-8 socket, Mini USB & DC-in jack
USB ports Mini USB and type A USB
Leave the smart card in the card reader until the transaction is completed.
Premature removal can void the transaction.
