INSTALLATION
2-2
VersaPulse Select Service Manual
0621-499-01 12/95
®
®
LIFTING BAR (2)
Rear lifting bolts
(2, 5/8ths)
Front lifting bolts
(2, 3/4ths)
As the bolts turn, the lifting bar is raised or lowered. The system
ships with the lifting bar up. The bar must be lowered and removed,
then the system is rolled down the wooden ramps to remve it from
the crate base.
Removable
wooden ramp (2)

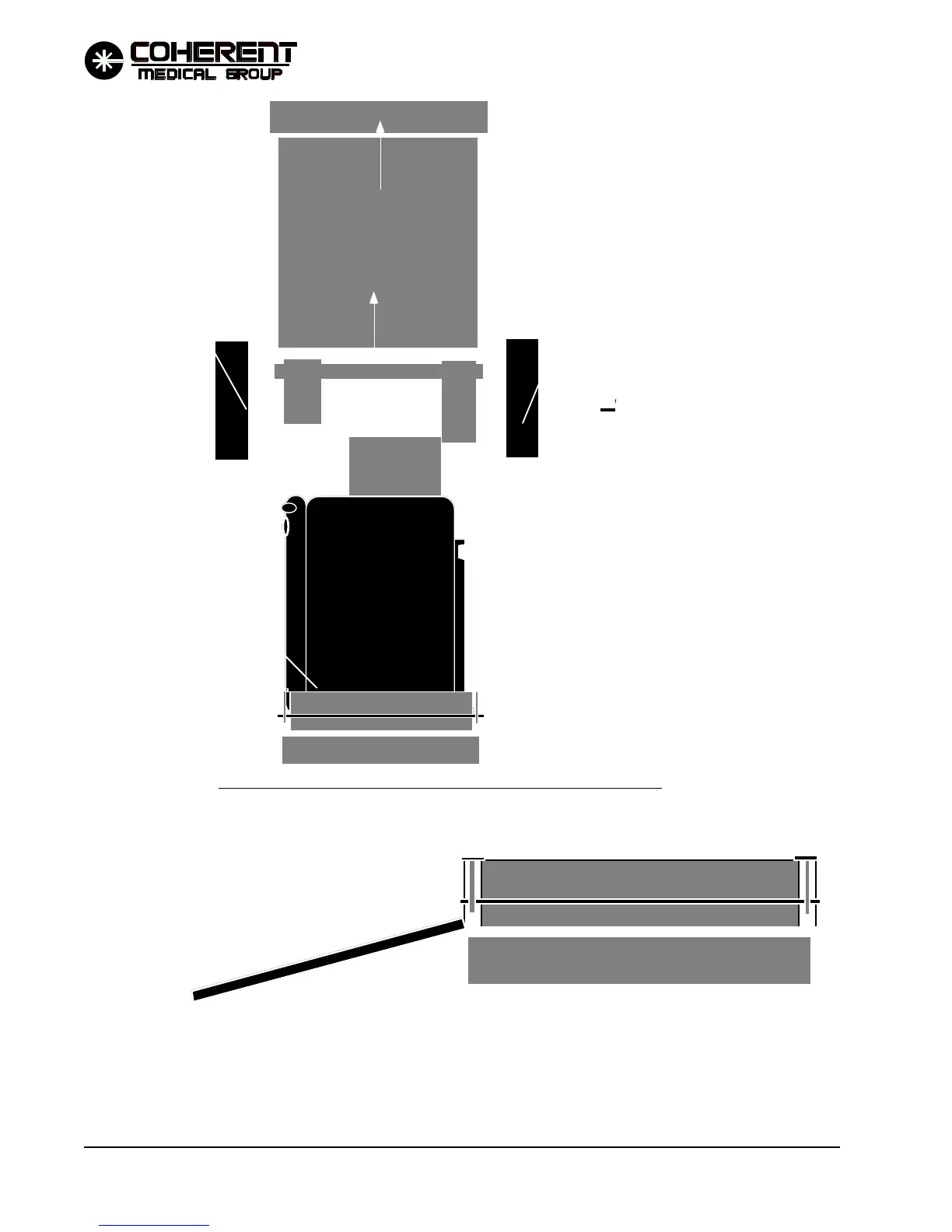

FIGURE 2.1 SHIPPING CRATE
Accessories
CARDBOARD SIDE COVER
CARDBOARD TOP COVER
STRAP
STRAP
WOODEN
BASE
FOAM
WOODEN RAMPS
03/94
