VX-1210 OPERATING MANUAL 5
Battery Compartment
This compartment houses allows installation of the FNB-66LI Lithium-Ion Battery
Pack.
CHG Jack
This 4-pin jack allows connection to the optional CD-17 Charger.
AUX Jack (Option)
This optional 9-pin DB-9 jack provides AFSK input/output and CW keying to allow
easy interfacing to data communications modem devices.
Note: The protective cover over the CHG jack and AUX jacks must be removed to access
the jacks. Replace it back over the jacks when they are not in use, to protect the inside of
the transceiver from dust and water.

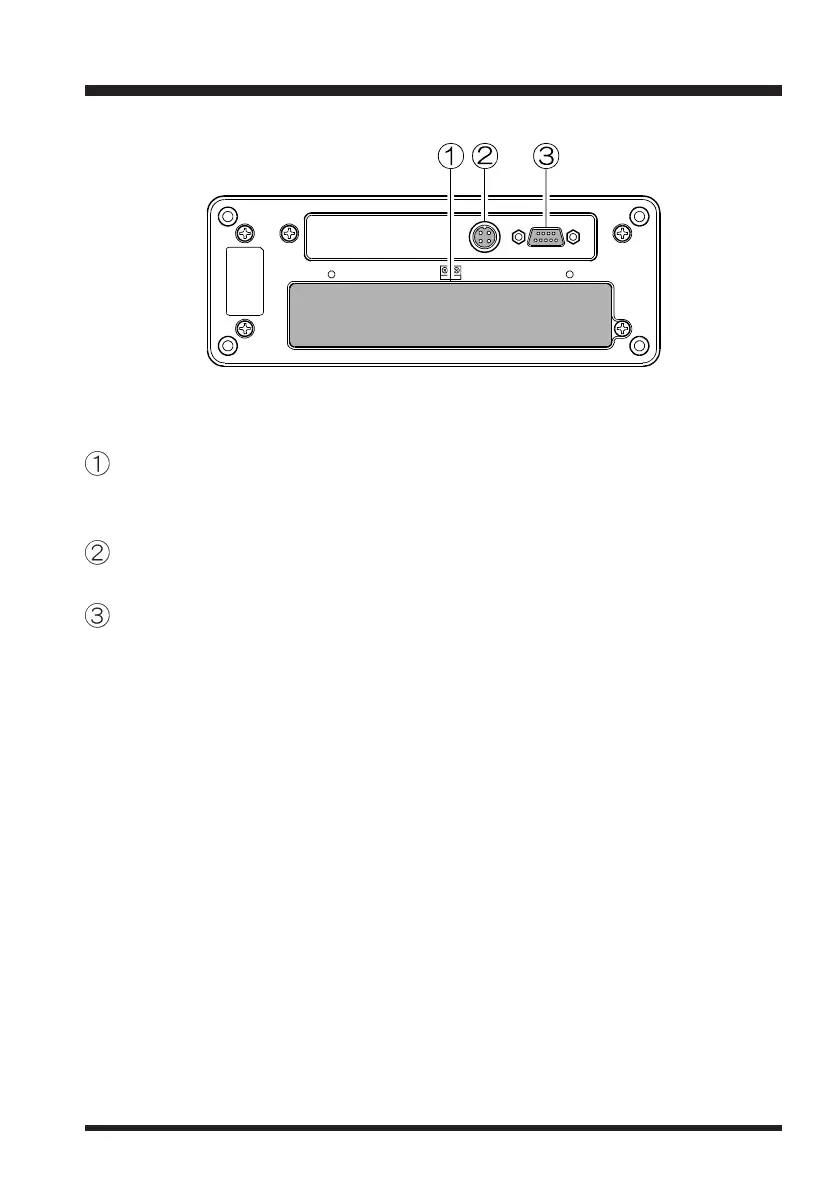

Rear Panel Connectors
To Next Page
