VX-1210 OPERATING MANUAL 7
BATTERY CHARGING
It is necessary to charge the Battery Pack fully before its first use.
1. Install the Battery Pack into the transceiver. Ensure that the transceiver is switched off.

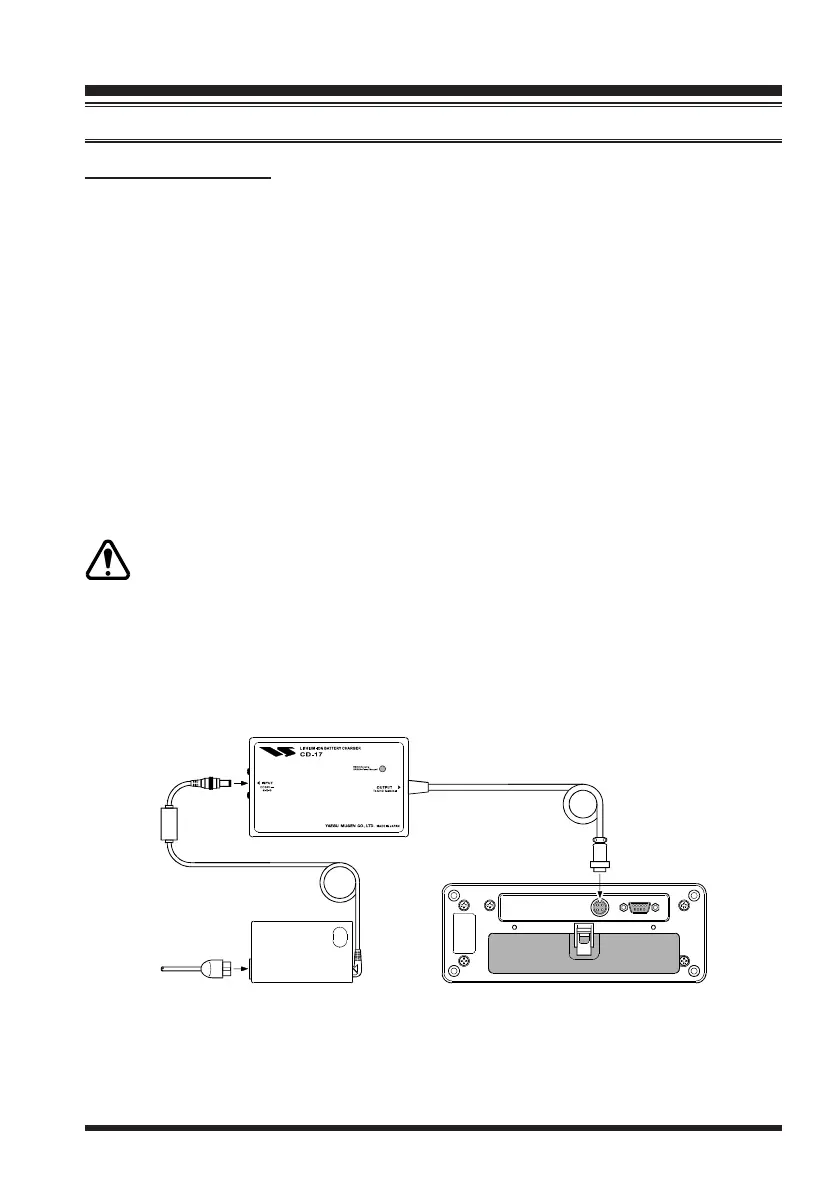

2. Connect the cable plug from the PA-26 AC Adapter into the INPUT jack on the CD-
17 Charger, then insert the cable plug from the CD-17 Charger into the CHG termi-
nal on the bottom of the transceiver.
3. Connect the AC cable into the AC jack on the PA-26 AC Adapter, then plug the PA-
26 AC Adapter into the AC line outlet.
4. The LED indicator on the CD-17 Charger will glow red (Charging) while the battery
is being charged. When charging is completed, the red LED indicator will change to
green (Fully Charged). A fully-discharged pack will be charged completely in about
five hours.
5. Unplug the cable from the CHG terminal, then disconnect the PA-26 AC Adapter
from the AC line outlet.
Do not connect an improper Charger into the CHG terminal.
Do not forget to replace the protective cover.
In rare instances, the CD-17 LED indicator may glow Green (apparently indicat-
ing “Fully Charged”) immediately when you charge a fully-discharged pack. If
this should happen, unplug the cable from the CHG terminal, wait a few seconds,
then re-insert the cable plug into the CHG terminal. Normal charging should then
begin.
Operation
BEFORE YOU BEGIN
