8 VX-1210 OPERATING MANUAL
Operation
PRELIMINARY STEPS
1. Install a charged Battery Pack onto the transceiver,
as described previously.

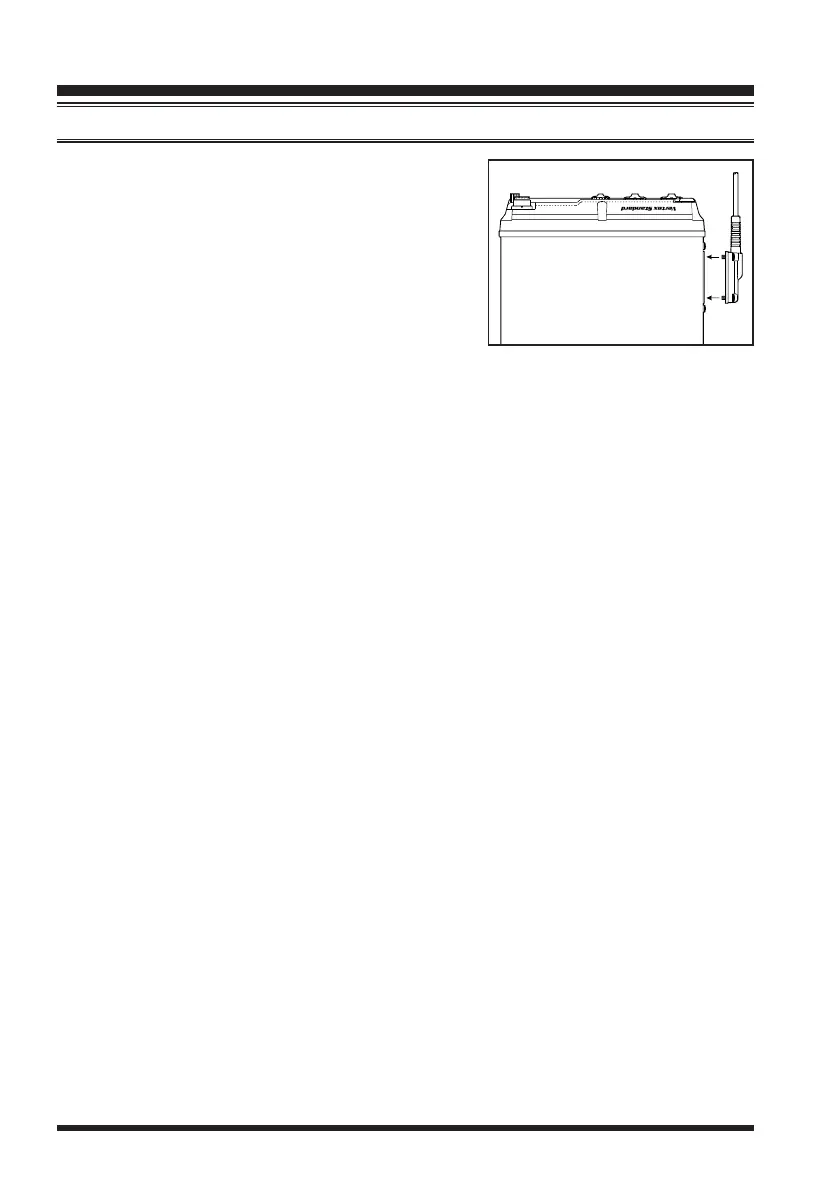

2. Connect the MH-50B7A Speaker/Microphone onto
the transceiver; align the connector of the MH-
50B7A to the connector on the left side of the trans-
ceiver body, then secure the connector using the
screws supplied with the MH-50B7A Speaker/Mi-
crophone.
3. If you use this transceiver with the optional YA-30 antenna kit, set up the YA-30
antenna first, then connect the coaxial plug from the YA-30 to the ANT jack of the
transceiver.
Ú
:
When using the YA-30 dipole antenna, the built-in antenna tuner is not used.
4. If you use this transceiver with the optional whip antenna (YHA-61 or FHA-27w/
GN-1210), connect the whip antenna onto the ANT jack of the transceiver, then con-
nect a good earth ground onto the GND terminal of the transceiver using heavy braided
cable.
Note: The VX-1210 can be used either with a Dipole Antenna (like the YA-30), or the
whip antenna (like the YHA-61), depending on the programming of the transceiver by
your Vertex Standard dealer. For further details, contact your Vertex Standard dealer.
