VX-4000 VHF Low-band Service Manual
6A-7
ACE
Side A

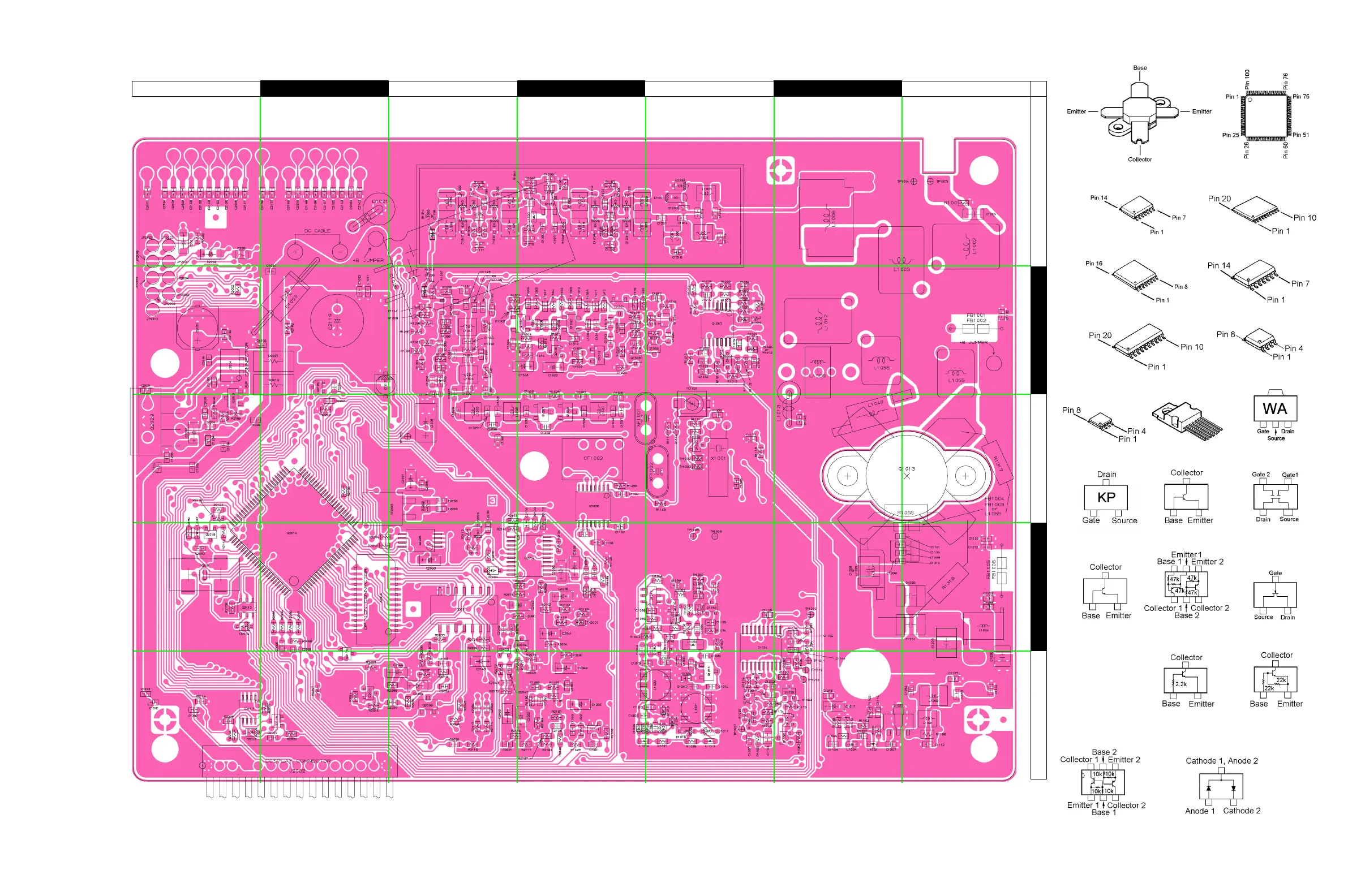

Parts Layout
MAIN Unit (Lot 8 ~)
1
2
3
F
BD G
4
5
MC2850 (A7)
(D1033, 2003, 2004)
HSM88AS (C1)
(D1501, 1510)
2SC4154E (LE)
(Q2018, 1036, 1037)
2SC5107-O (MFO)
(Q1018)
2SC4215Y (QY)
(Q1029, 1504, 1505
1509, 2130)
2SC4226 (R22)
(Q1014)
RT1N241M (N2)
(Q1011, 1016, 2011
2116, 2119)
IMH6 (H6)
(Q1017)
3SK131 (V12)
(Q1501, 1502)
3SK240 (UN)
(Q1012, 1025)
2SK508 (K52)
(Q1015, 1507, 1508)
2SA1602A (MF)
(Q1035)
BU4066BF
(Q2007)
DTC323TK (H02)
(Q2006, 2012)
CXA1846N
(Q2014)
HN58X2432TI
(Q2028)
IMD3 (D3)
(Q2112)
MB90F583B
(Q2019)
SA7025DK
(Q1024)
TDA7240AV
(Q2029)
NJM2902V
(Q1007)
2SK3074 (WA)
(Q1020)
2SK2035 (KP)
(Q1034)
2SC3240-21
(Q1013)
TA31136FN
(Q1026)
TC4W53FU
(Q2117)
