VX-4000 VHF Low-band Service Manual
6A-8
gb

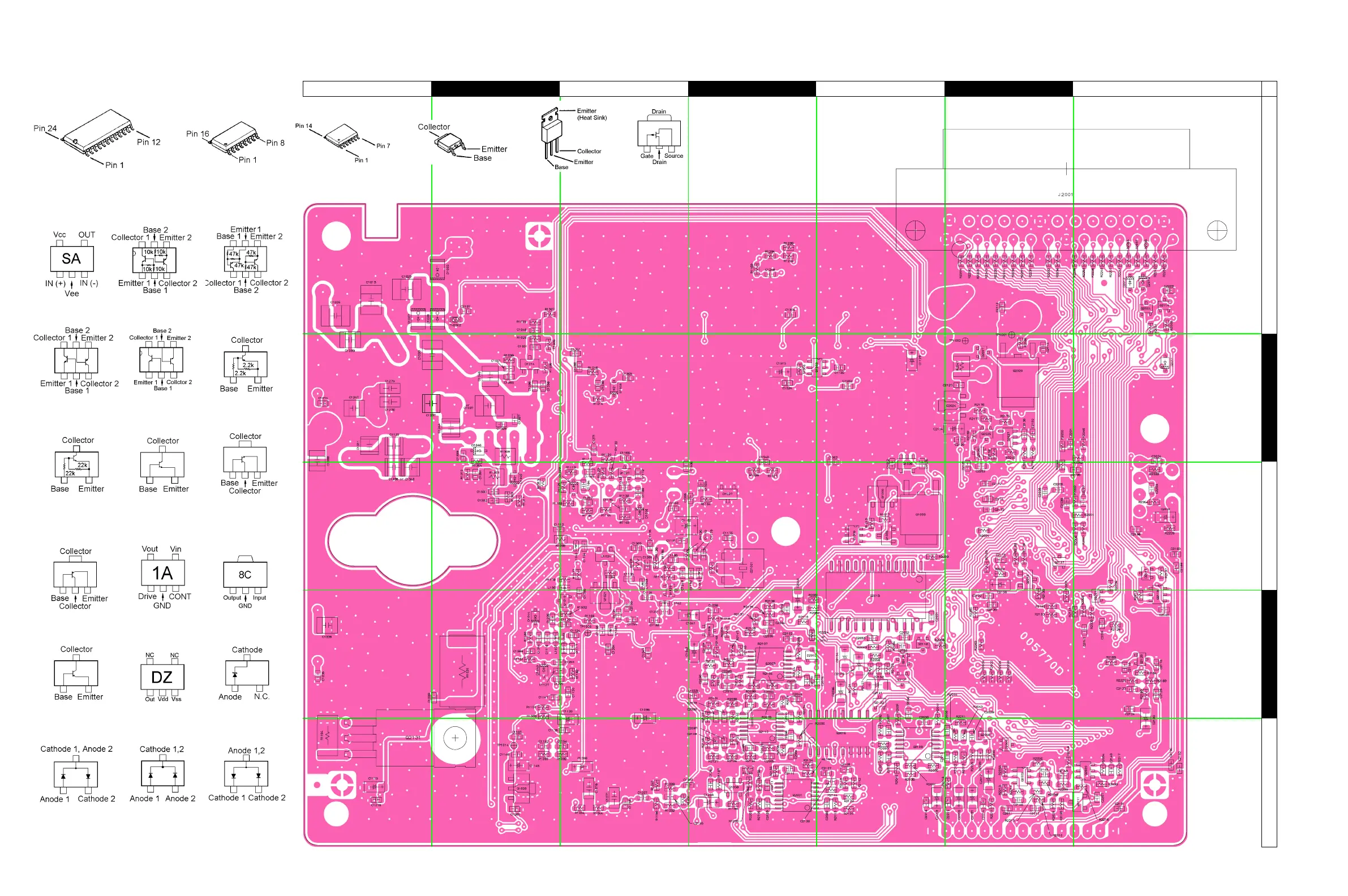

Side B
MAIN Unit (Lot 8 ~)
a dc fe
1
2
3
4
5
RT1N241M (N2)
(Q2004, 2008, 2026
2114, 2118, 2120
2121, 2122, 2125
2127)
DTB123EK (F12)
(Q1005, 2015, 2111)
NJM2902V
(Q2001, 2003, 2108
2110)
IMH6 (H6)
(Q1009)
NJM78L05UA (8C)
(Q1023, 2024)
MM1216ENRE (1A)
(Q1030)
IMZ1 (Z1)
(Q2002)
IMX1 (X1)
(Q2009)
MX165CDW
(Q2013)
BU4053BCF
(Q2016)
2SJ327Z
(Q2020)
S-80735SN (DZ)
(Q2027)
IMD3 (D3)
(Q1503, 2115)
2SC4154E (LE)
(Q1008, 1027)
2SC4215Y (QY)
(Q1019)
2SB1132R (BA)
(Q1006)
2SC5415E (EA)
(Q1021)
2SA1602A (MF)
(Q2025)
HSM88AS (C1)
(D1011, 1014)
MC2850 (A7)
(D2002, 2006, 2010)
1SS321 (F9)
(D1024)
MC2846 (A4)
(D2001, 2007)
HZM5.6NB2 (562)
(D1027)
TA75S01F (SA)
(Q1038)
2SC3133-21
(Q2131)
2SB1201STP
(Q1003)
