METTLER TOLEDO 2158/2160/2162 Vertex Floor Scales Service Manual
(11/96)
Applied Weight Allowable Error
0 - 500 Divisions
501 - 2000 Divisions
2001 - 10000 Divisions
± 1/2 Division
± 1 Division
± 1-1/2 Divisions
Load Cells
Stainless steel cantilever beam load cells are provided in all 2158, 2160,
and 2162 Vertex floor scales with integral 4-conductor, shielded, color
coded cable (See note). All load cells 2,500 lb and less have a built-in
overload stop to prevent damage due to accidental overloads. The load
cell suspension utilizes a rocker pin inserted between the cell and a fixed
receiver in the frame (see Figure 1-c). Individual load cell capacities
used in the Models 2158, 2160, and 2162 include:
Scale Platform Capacity of Each Minimum Approved
Capacity Load Cell Graduation Size
(lb) (lb) (lb)
1000 500 0.2
2500 1250 0.5
5000 2500 1.0
10000 5000 2.0
20000 10000 5.0
1-b

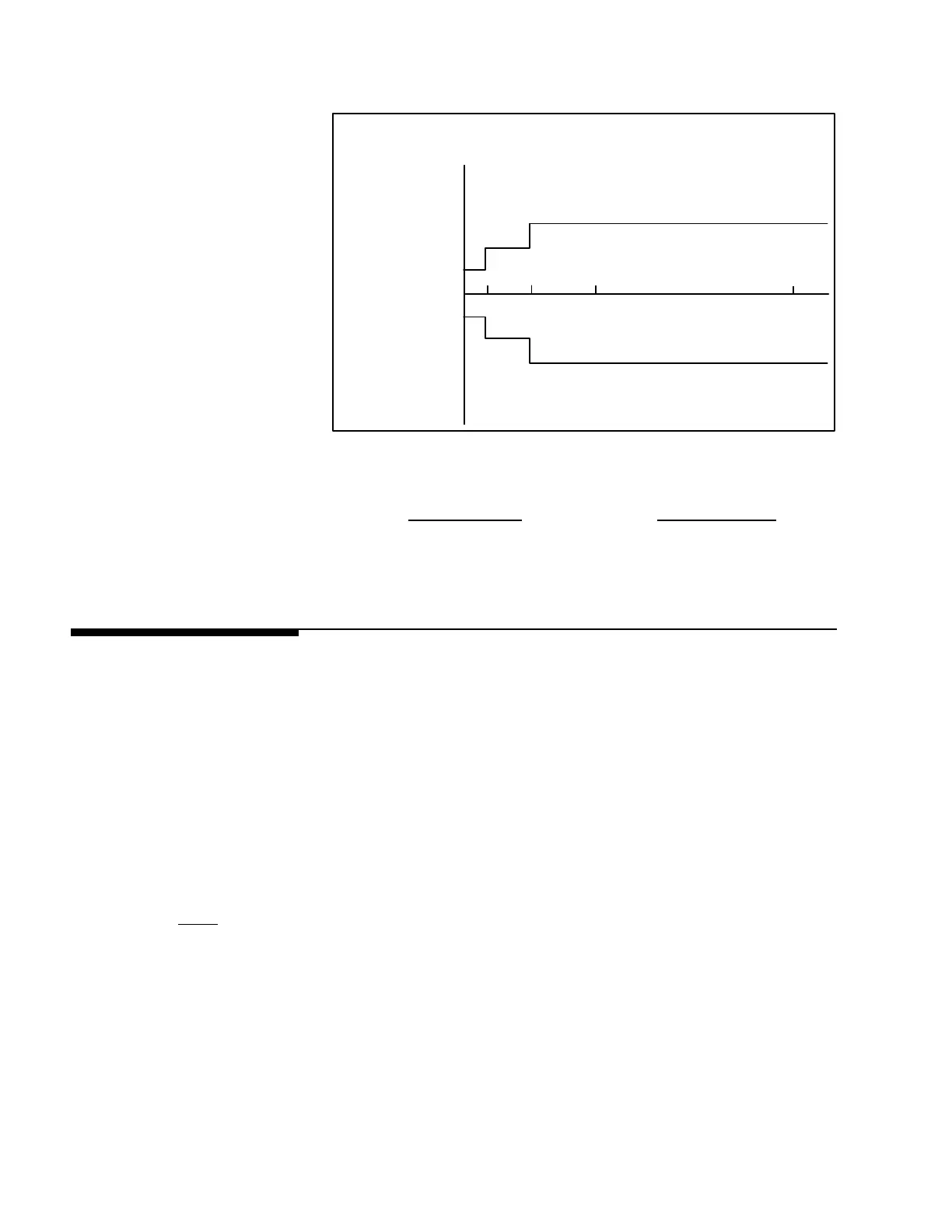

: OIML Weighing Tolerances (Model 2158 only)
OIML Tolerance Chart
+2.5
+2.0
+1.5
+1.0
+0.5
0
-0.5
-1.0
-1.5
-2.0
500d 2000d 4000d 10,000d
Number
of
Divisions
Note: Scales 4’ x 6’ and smaller use
7.5’ long cables. Scales larger than 4’
x 6’ and all 20k capacity scales use
15’ long cables. Do Not mix cables of
different lengths within a platform.
