Vertex 2158 - Route;Attach Instrument Cable

Chapter 3: Installation (Top-of-Floor)
Route/Attach Instrument Cable
(11/96)
3-3
Route/Attach
Instrument Cable
Remove the junction box access cover plate from platform.
A loose coil of instrument cable is located inside the platform channel, on
either side of the J-Box assembly.
Thread the instrument cable through the hole provided in the scale frame
and platform, continuing through the inside of the platform channel,
stopping at the junction box (see Figure 3-c).
Scale Platform
Frame
Instrument Cable Access Hole
(Typical two holes per corner)
Conduit
Quick-Pit
Top of Floor
Ramp
Top of Floor
Frame
Alternate instrument cable
access hole in ramp application
Ramp Attachment Hole
Vertex
(with ramp)
Scale Platform
Instrument Cable Access Hole
(Typical two holes per corner)
Vertex (without ramp)
Frame
Ramp Attachment Hole
Top of Floor
Instrument Cable

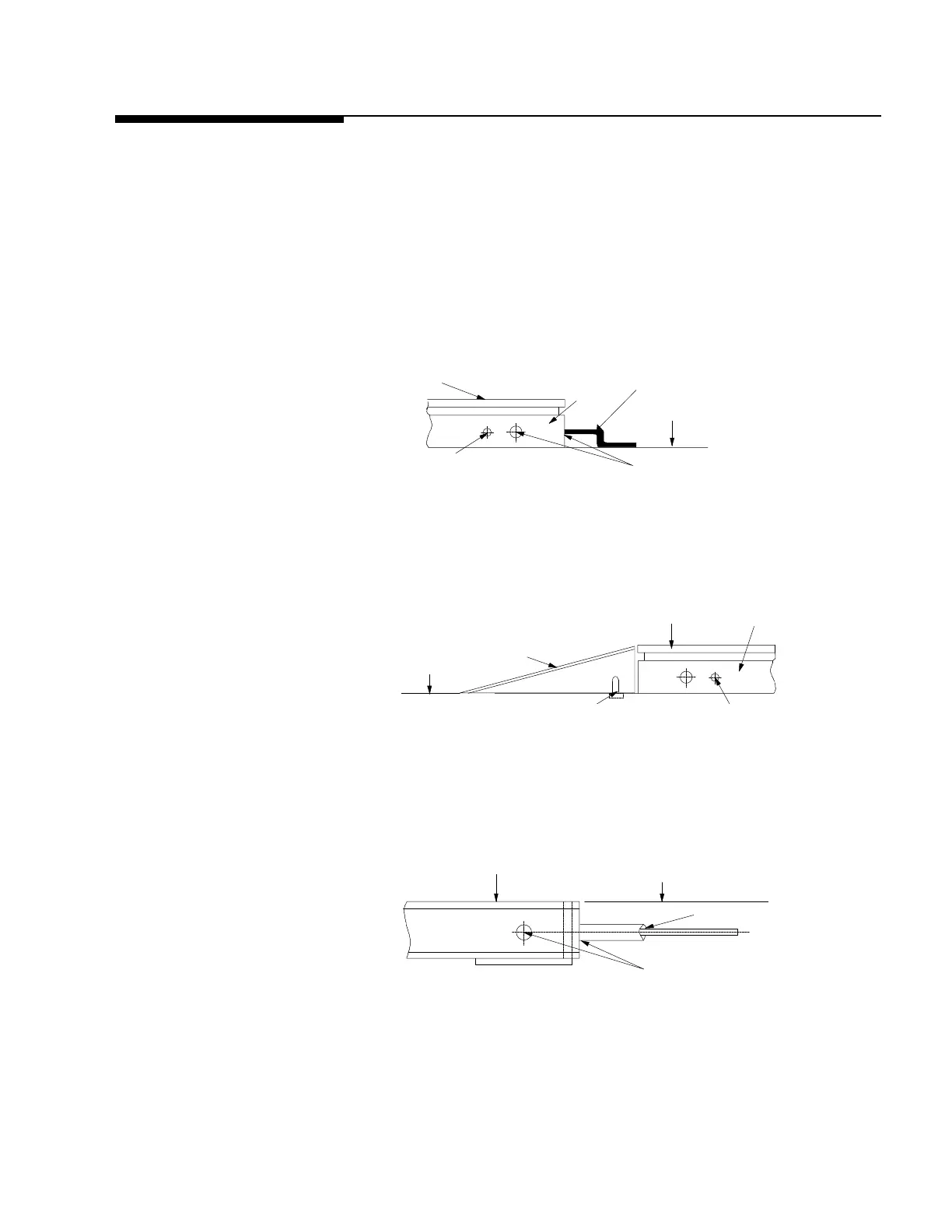

Figure 3-c: Instrument Cable Access Locations
