METTLER TOLEDO 2158/2160/2162 Vertex Floor Scales Service Manual
(11/96)
Remove the junction box lid. Loosen the instrument cable connector,
thread the cable through the connector (pull enough cable to reach the
“input” terminal), reinstall and tighten (see Figure 3-e).
Junction Box Wiring
Wire the instrument cable to the terminal marked "INPUT" for model
2158 and 2160 (see pages 3-5 through 3-8 ).
Place desiccant bag inside junction box.
Reinstall junction box lid. Make sure that the rubber gasket is clean and
correctly located. Tighten all screws and check that all cord grip caps
are tight.
Reinstall the platform access plate.
In-Correct
Load
Cell
Correct
Load
Cell

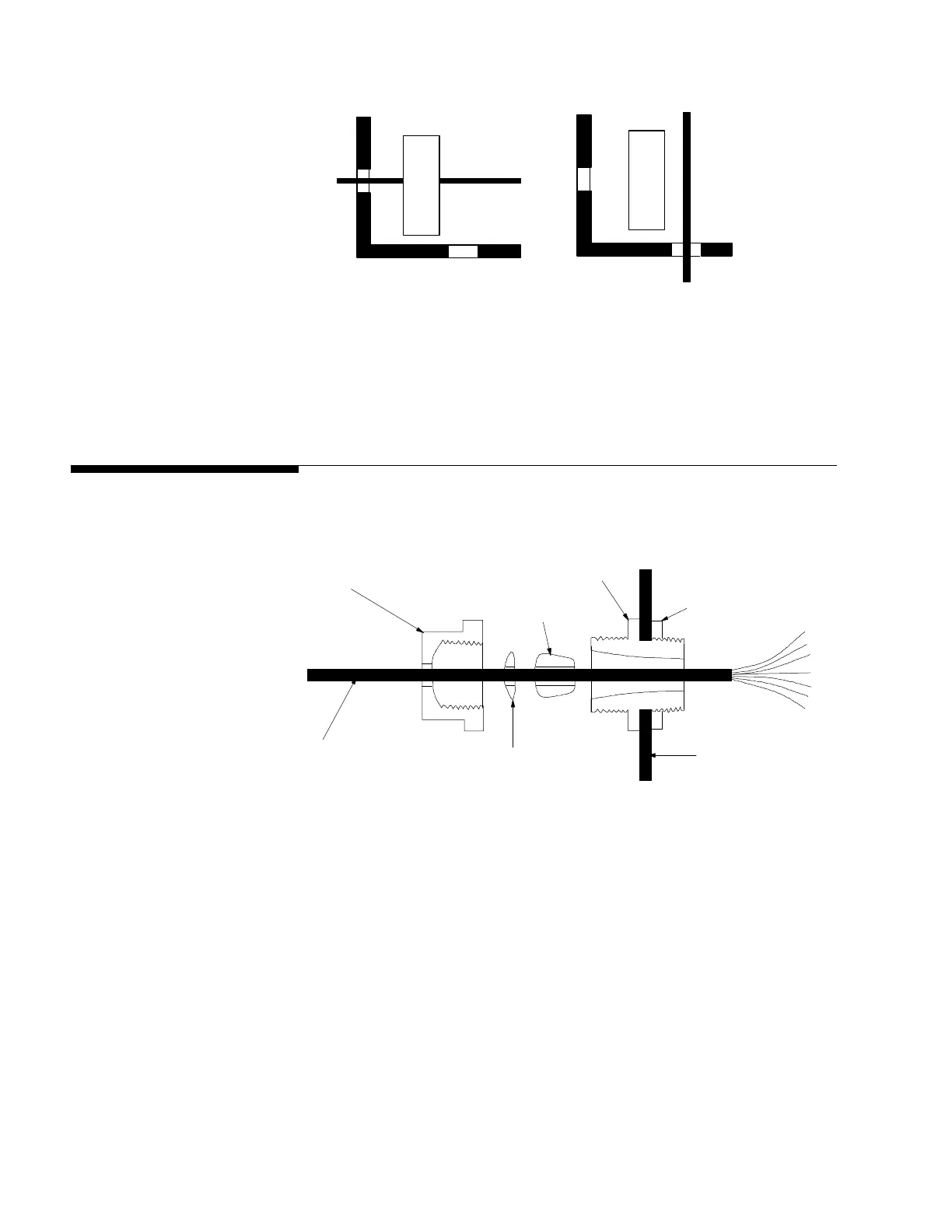

Figure 3-d: Cable Incorrect and Correct
Cord Grip Cap
Nut
Spherical Washer
Junction Box Enclosure
Instrument Cable
Rubber Grommet
Body Insert
Figure 3-e: Cord Connector Details
