Chapter 5: Optional Scale Guard Installation
(11/96)
5-1
5 Optional Scale Guard Installation
Scale Guards are used with the standard top-of-floor Vertex frame to
provide protection against accidental forklift hits, etc. Scale Guards are
available for all sizes and capacities of standard Vertex scales.
Locate the Scale Guard a minimum of 3/8" from the side of the frame. If
the scale capacity is 1k-5k the 3" leg of the guard should be vertical. If
the scale capacity is 10k then the 3-3/8" leg should be vertical (equal to
platform deck height). 20k scales use a 4” tall guard. It is important
that the Scale Guard not contact the scale platform.
Two 9/16" diameter holes are provided for anchoring the Scale Guards to
the floor. Using the holes as a drill template, install 1/2" anchors into the
floor (anchors and anchor bolts by others). Insert the 1/2" anchor bolts
and tighten to secure the Scale Guard to the floor (see Figure 5-a).
Scale Guard
Platform
Frame
Anchor
Top of Floor
3/8" Min.
3" (1-5k)
3-3/8" (10k)
4" (20k)
3" (10k)
3-3/8" (1-5k)
4" (20k)

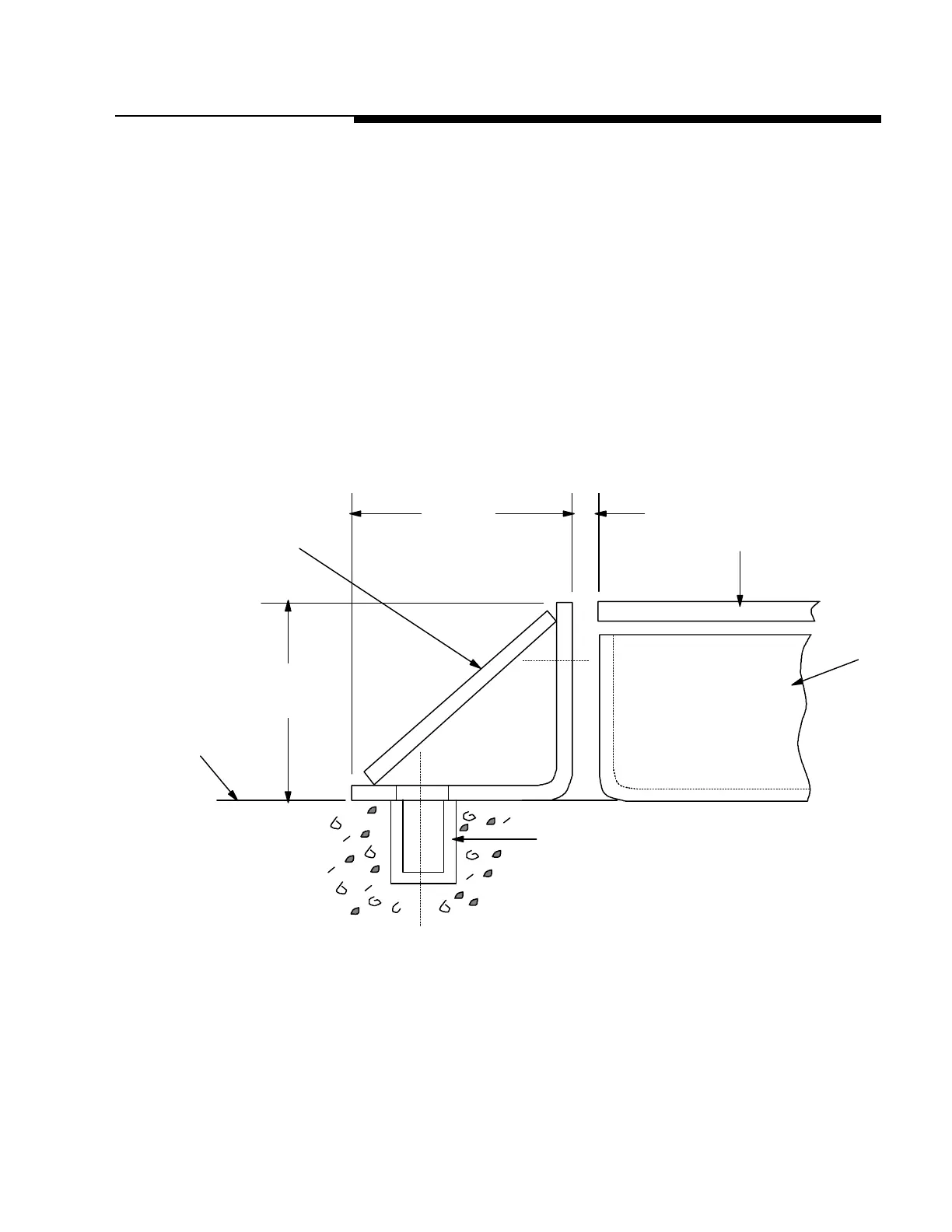

Figure 5-a: Scale Guard Installation Details
