Vertex 2158 - Chapter 11: Service Parts

Chapter 11: Service Parts
Load Cell Replacement Procedure
(11/96)
11-1
11 Service Parts

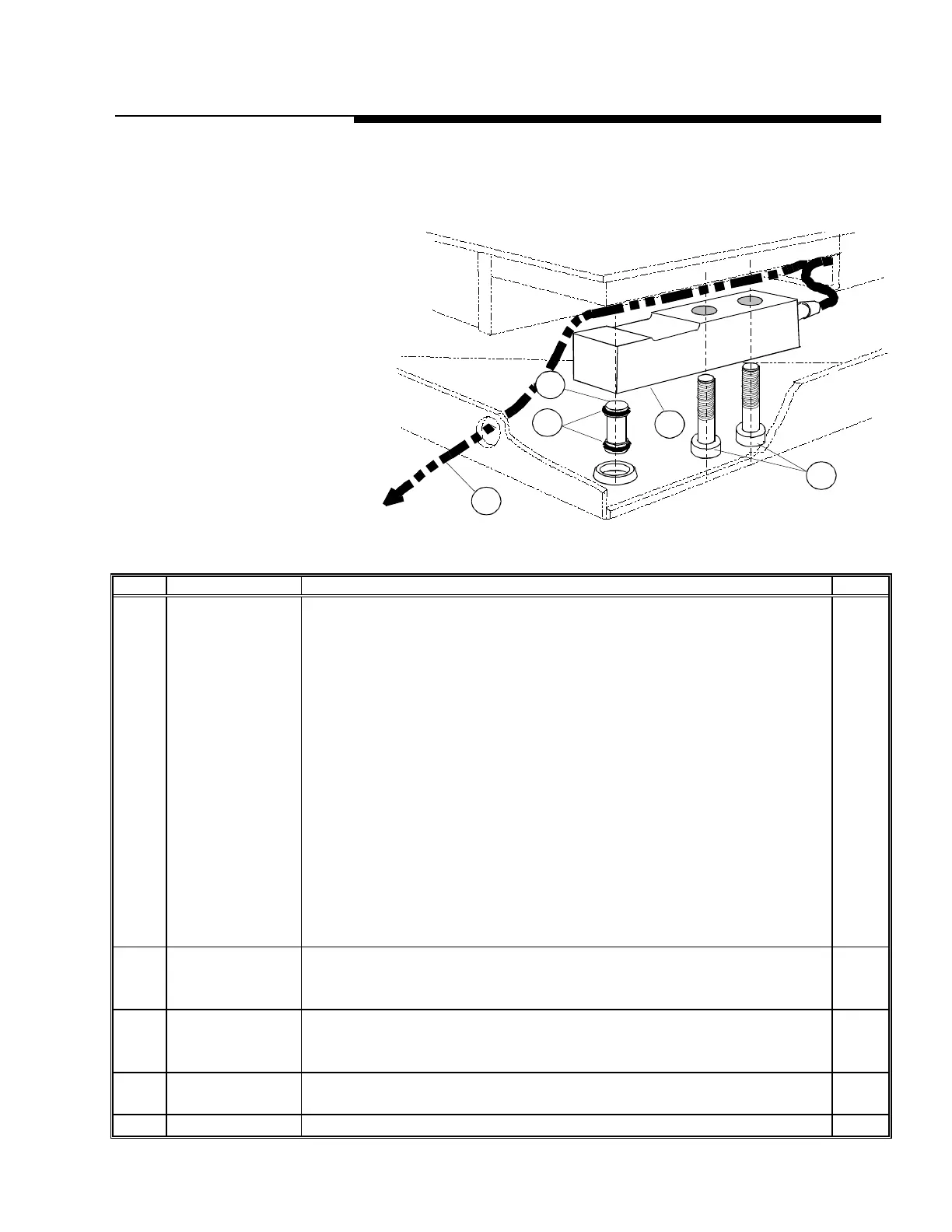

Load Cell and Rocker Pin Assembly
Ref. # Part Number Description Qty.
1 TB600529-2
TB600529-3
TB600363-1
TB600363
TB600342
TB600342-1
TB600343
TB600343-1
TB600364-1
TB600454-2
TB600454
TB600455-2
TB600455
TB600456-2
TB600456
TB600457-2
TB600457
500 lb load cell (5000d) with 7.5 ft. cable
500 lb load cell (5000d) with 15 ft. cable 5 x 7 platform ONLY
1250 lb hermetic load cell (5000d) with 7.5 ft. cable
1250 lb hermetic load cell (5000d) with 15 ft. cable 5 x 7 platform ONLY
2500 lb load cell (5000d) with 15 ft. cable 5 x 7 platform ONLY
2500 lb hermetic load cell (5000d) with 7.5 ft. cable
5000 lb load cell (5000d) with 15 ft. cable 5 x 7 platform ONLY
5000 lb hermetic load cell (5000d) with 7.5 ft. cable
10000 lb hermetic load cell (5000d) with 15 ft. cable
550 kg C3 R60 OIML with 7.5 ft. cable
550 kg C3 R60 OIML with 15 ft. cable 5 x 7 platform ONLY
1100 kg C3 R60 OIML with 7.5 ft. cable
1100 kg C3 R60 OIML with 15 ft. cable 5 x 7 platform ONLY
2200 kg C3 R60 OIML with7.5 ft. cable
2200 kg C3 R60 OIML with 15 ft. cable 5 x 7 platform ONLY
4400 kg C3 R60 OIML with 7.5 ft. cable
4400 kg C3 R60 OIML with 15 ft. cable 5 x 7 platform ONLY
4
2 MZ0901010333
MZ0901010409
MZ0901010430
1/2-13 bolt x 1 3/4” Lg. (.5 - 2.5k load cell)
1/2-13 bolt x 2” Lg. (5k load cell)
3/4-10 bolt x 2 1/2” Lg. (10k load cell)
8
3 TN200050
MN21018
TN201975
Rocker pin (.5 - 5k load cell)
Rocker pin (5k load cell)
Rocker pin (10k load cell)
4
4 MZ0909000005
MZ0090000050
O-ring (.5 - 5k load cell)
O-ring (10k load cell)
8
5 510624370 24 ga., 6 conductor, shielded home run cable Varies
1
2
3
4
To Indicator
5
Note: Proper overload gap:
500 lb cell - .009” to .015”
1250 lb cell - .012” to .018”
2500 lb cell - .017” to .023”
*Note: Torque load cell
bolts to 100 ft-lb (1-5 cell)
or 250 ft-lb (10k cell)
