METTLER TOLEDO 2158/2160/2162 Vertex Floor Scales Service Manual
(11/96)
Support Frames
“Standard”
Above-Floor Frame

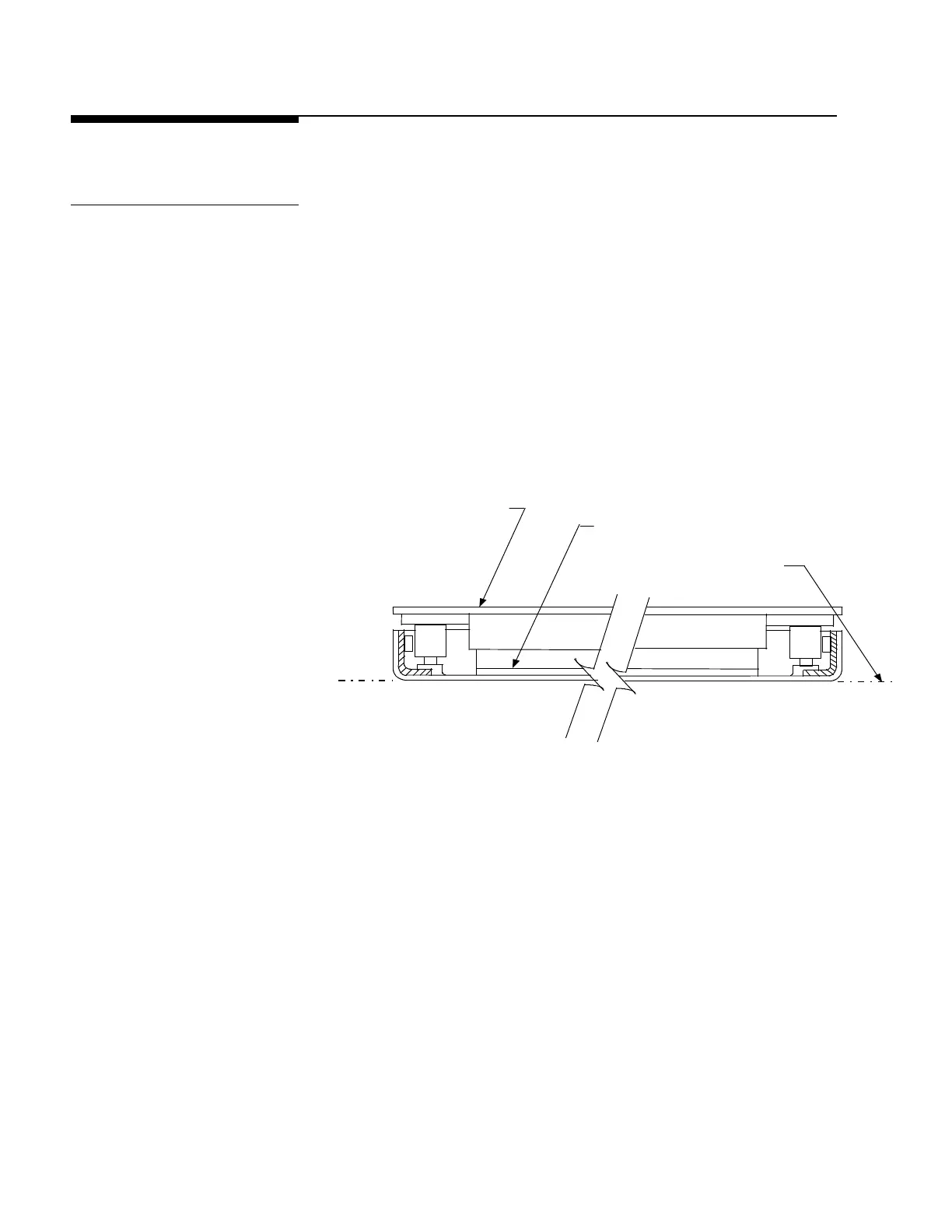

Standard Vertex platforms utilize a formed angle frame with all sides
turned under the scale for a fully captured assembly (see Figure 1-d).
Vertex scales are primarily used for top-of-floor installations and can be
used with optional ramps with access to all four sides of the scale. In
addition, optional scale guards can be mounted around the perimeter of
the standard frame to provide protection in high-traffic areas. Standard
Vertex frames may be used for in-floor applications, however, a Quick-
Pit frame is recommended.
Vertex Scale Platform
Vertex Scale Frame
Floor Line
