Chapter 1: Specifications
Support Frames
(11/96)
"Quick-Pit" In-Floor Frame
The Quick-Pit frame option provides a unitized scale assembly
eliminating the need for additional pit coping when in-floor installations
are required. The upper flange of the rugged C-channel frame acts as the
pit coping around the perimeter of the weigh platform.
• Pits are correct depth
• Pits are always square
• No field assembly or welding of coping
• Ease of construction, no pit forming required
• Ability to move the scale in the future
Forklift Channel Frame
The Forklift Channel frame is used when scale portability is required.
The rugged C-channel construction and fork blade guides ensure safe
lifting and transport.
Truck Dock Frame
The Truck Dock frame option offers maximum scale protection in high-
traffic above-floor applications. The heavy duty C-channel frame is
compatible with all standard ramps to allow access to any side of the
scale.

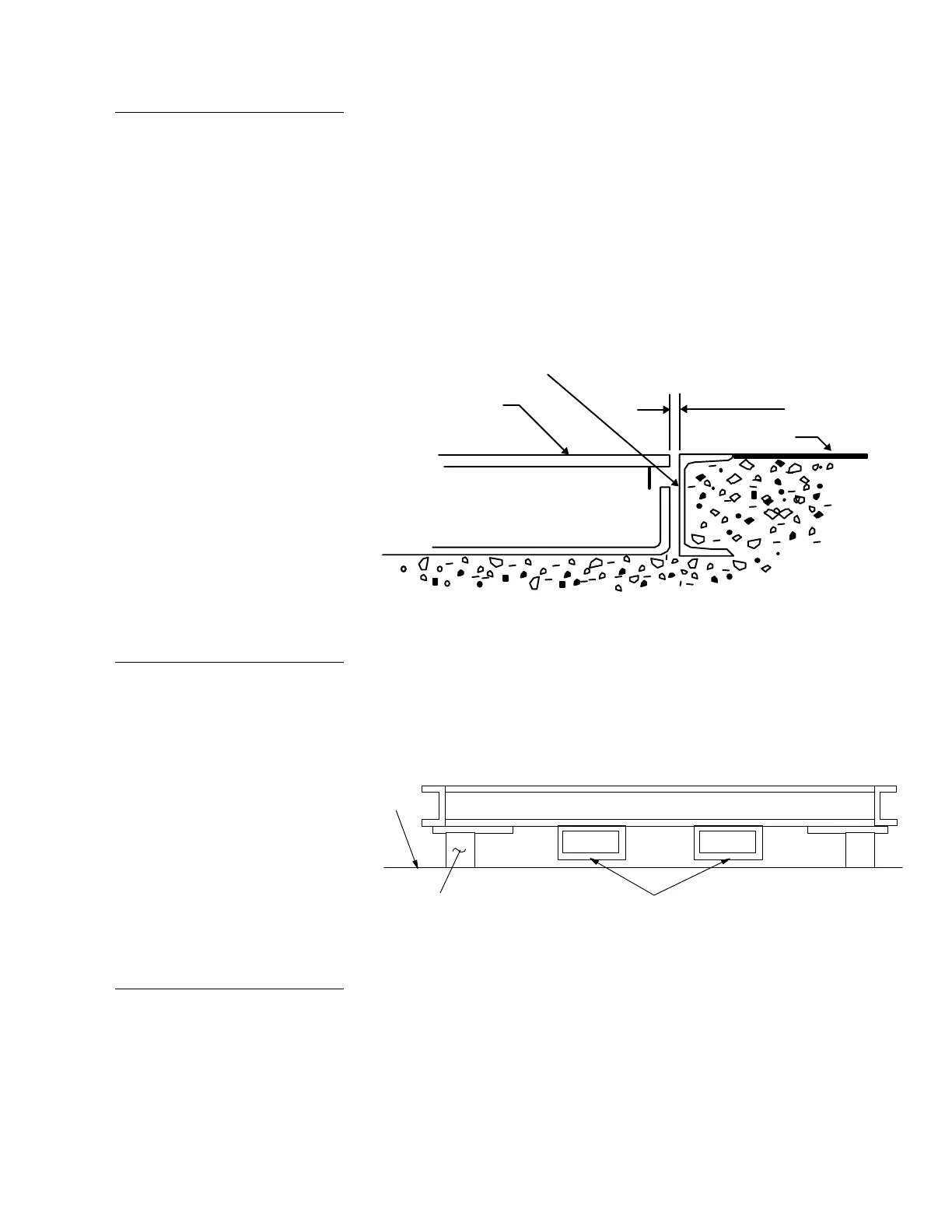

Figure 1-e: Quick Pit Frame
Floor
Frame Support
Fork Blade Guides
Figure 1-f: Forklift Channel Frame
