Chapter 8: Calibration
Scale Calibration
(11/96)
Reapply the test weight(s) to the location with the highest recorded
reading, adjust that load cell pair of potentiometers to match the
reading of the location with the lowest recorded value.
5. Repeat the procedure until all location readings are the same, or
within the scale tolerances specified.
6. Repeat Step 1, to verify shift tolerances.
7. Leaving all hook latches open, reinstall junction box lid and access
cover plate.
Scale Calibration
It is recommended to calibrate the scale using a test weight equal to the
scale capacity. With the proper test weight, continue with the calibration
of the weighing system in accordance with the instructions provided in
the manual of your digital indicator.
W 3
W 2
W 5
P 7 P 8
P 1 P2
ST 2 ST 3
SA 1
P 3 P 5
-SIG +SIG
-EXC +EXC
-SEN +SEN
8
7
6
5
4
3
2
1
LC 4
LC 3
LC 2
LC 1
Hook Switches
Potentiomter Pair LC 1
Potentiomter Pair LC 2
Potentiomter Pair LC 3
Potentiomter Pair LC 4
LC 1
LC 4
LC 3
LC 2

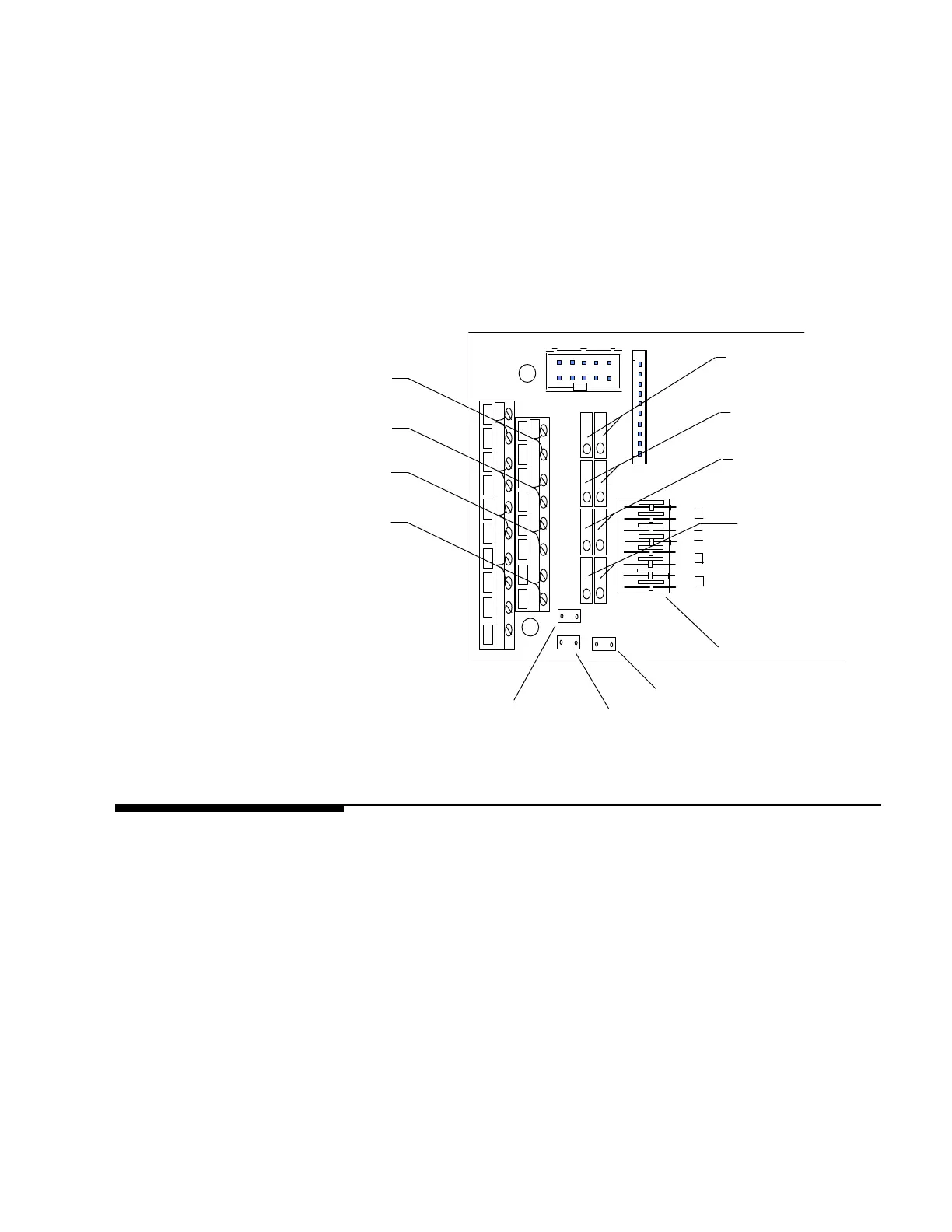

Figure 8-b: 2162 ID Net Potentiometer Adjust
