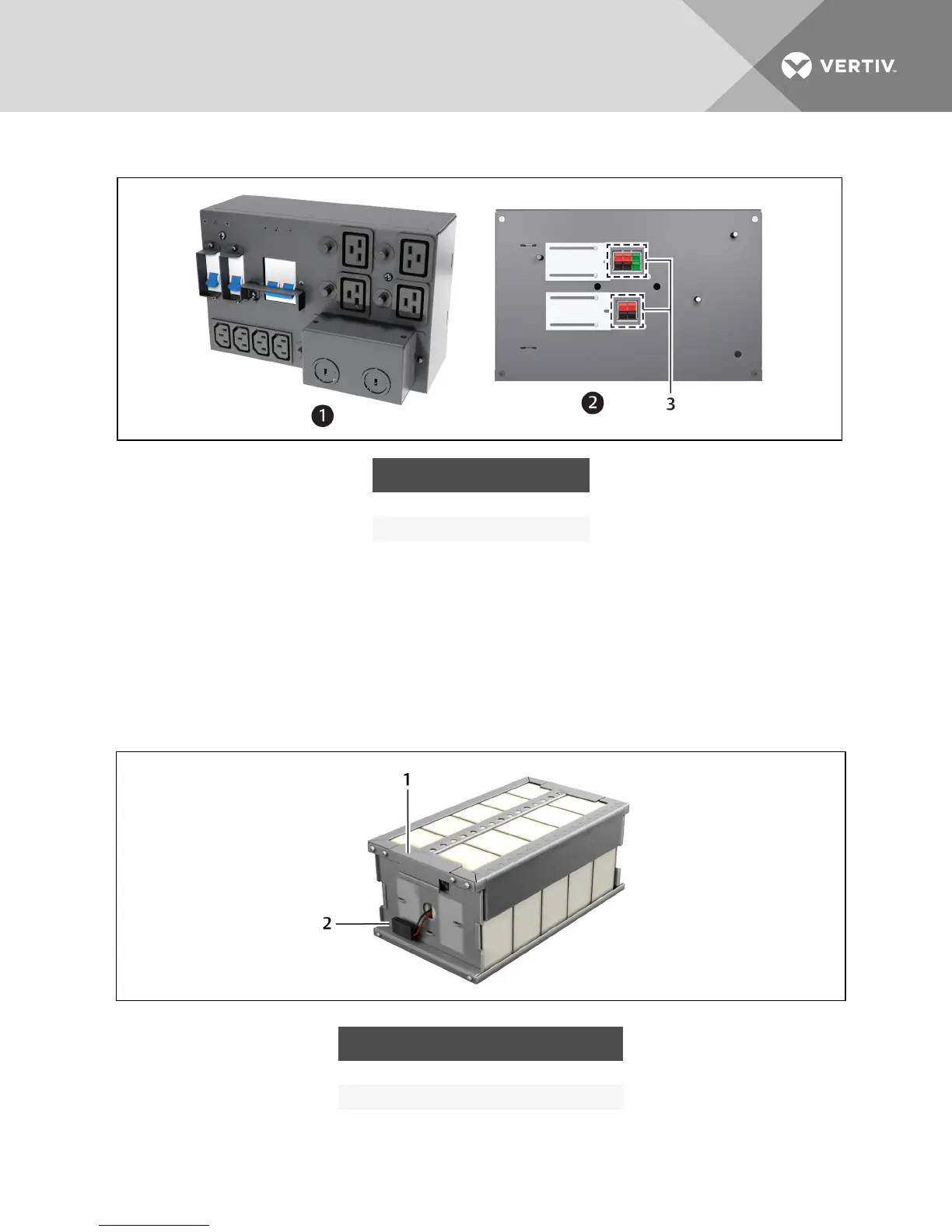

Figure 2.5 Power distribution box for 10,000VA models
NO. DESCRIPTION
1 Front view, PD2-CE10HDWRMBS
2 Inner-surface view
3 Quick-connects
2.6 Internal Battery Packs
The UPS has two internal battery packs behind a battery-access door on the front of the unit. Each
internal battery pack is fitted with a connector to link to the UPS.
GXT4 10,000-VA battery pack shown is shown in the figure. 5000-VA and 6000-VA battery packs have
the same features.
Figure 2.6 Internal battery pack with connector
NO. DESCRIPTION
1 Battery handle
2 Battery connector
Vertiv | Liebert GXT4 Installer/User Guide | 15
