2.3 Front Panel and Controls
The Liebert GXT4 rack/tower models in various power ratings have the same general appearance,
controls and features as shown in the following figure. The various rack/towermodels differ largely in the
type of receptacles each has.

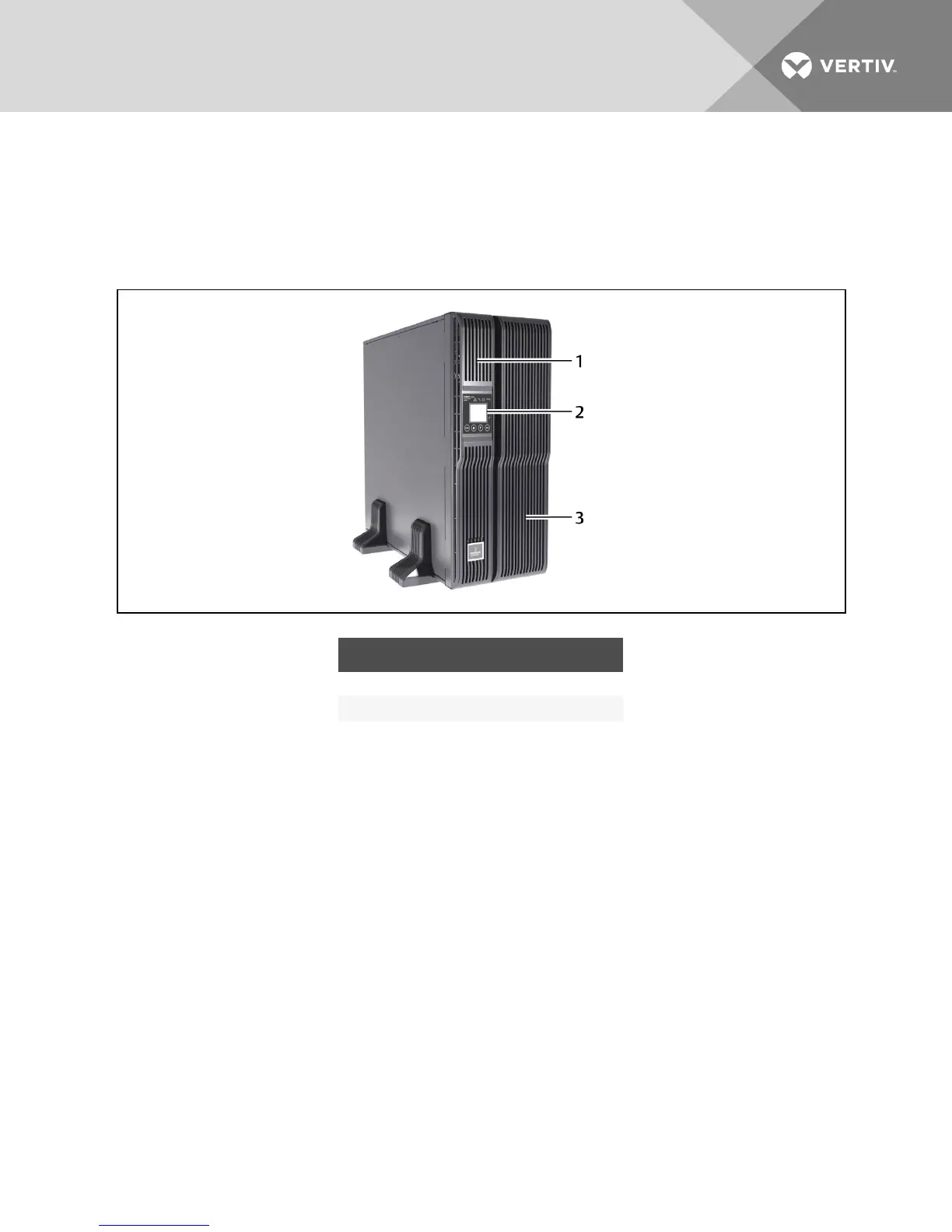

Figure 2.1 Front view
NO. DESCRIPTION
1 Upper bezel
2 Operation and display panel
3 Lower bezel and battery-access door
2.4 Rear Panel Features
The rear panel of the Liebert GXT4 has these features:
• Liebert IntelliSlot® Port
• USB port
• Input Circuit Breaker
• Maintenance Bypass Circuit Breaker
• REPO connection
• Input Receptacle
• General Output Receptacles
• External Battery Connector
• Cooling Fan
• Terminal Block Communication
• Output Circuit Breakers )
Vertiv | Liebert GXT4 Installer/User Guide | 12
