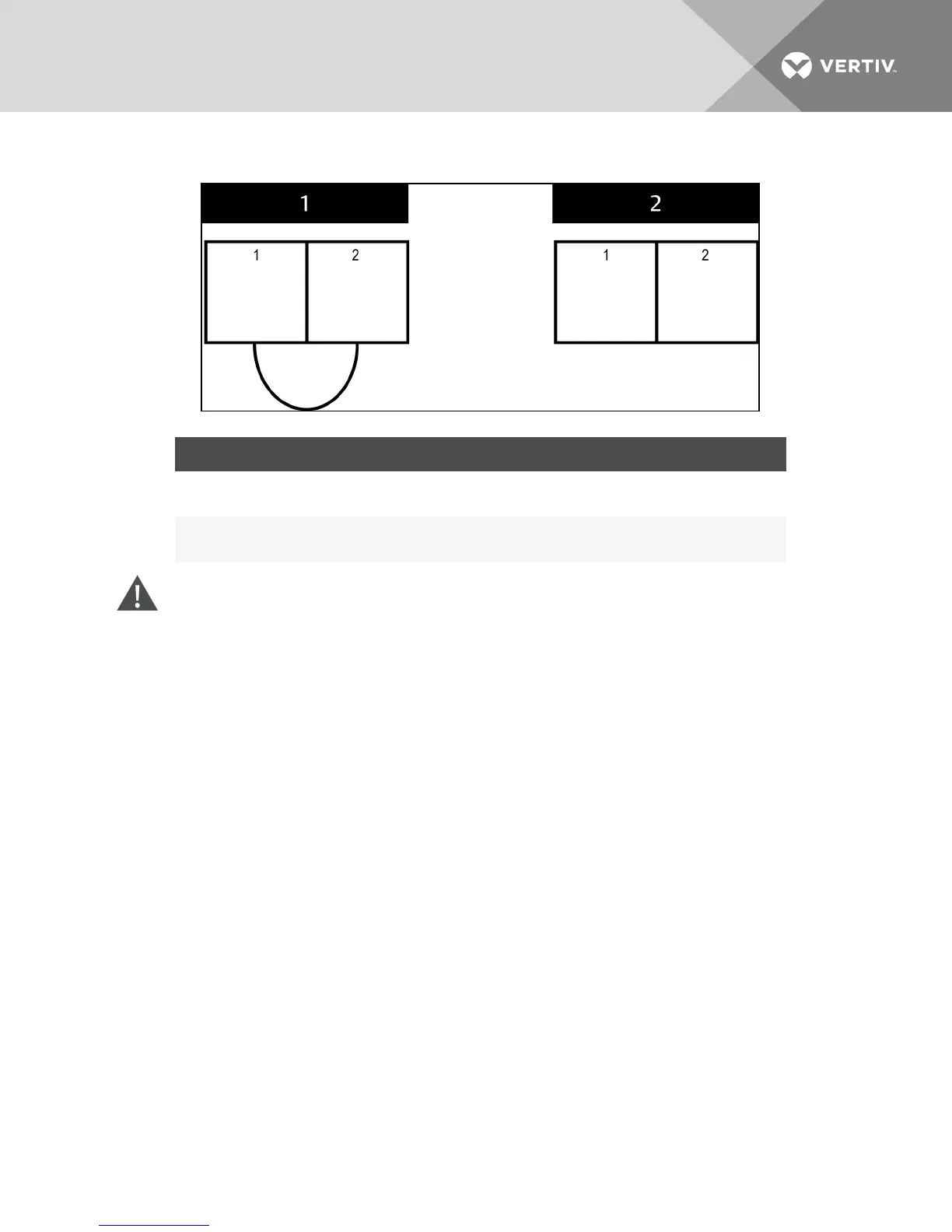

Figure 6.2 REPO switch connection diagram
NO. DESCRIPTION
1
UPS ships with REPO jumper installed, allowing the UPS to operate.
Normally-closed switch system (fail-safe)
2
Opening the REPO connection disables the UPS.
Manual restart using the front panel is required after the REPO connection is closed again.
CAUTION: To maintain safety (SELV) barriers and electromagnetic compatibility, signal cables
should be shielded and run separately from power cables.
Vertiv | Liebert GXT4 Installer/User Guide | 47
