Liebert EXL S1 Preparation For Use
User Manual 10H52226UM60 - Rev. 1 - 01/2017 13
2.4. Liebert EXL S1 1000/1200kVA cabinets assembly procedure
(in case of cabinets shipped separated)
The Liebert EXL S1 1000/1200kVA is composed by two cabinets, one contains the modules and one
contains the switches, and they must be assembled and connected together as first step of the
installation following the below procedure.

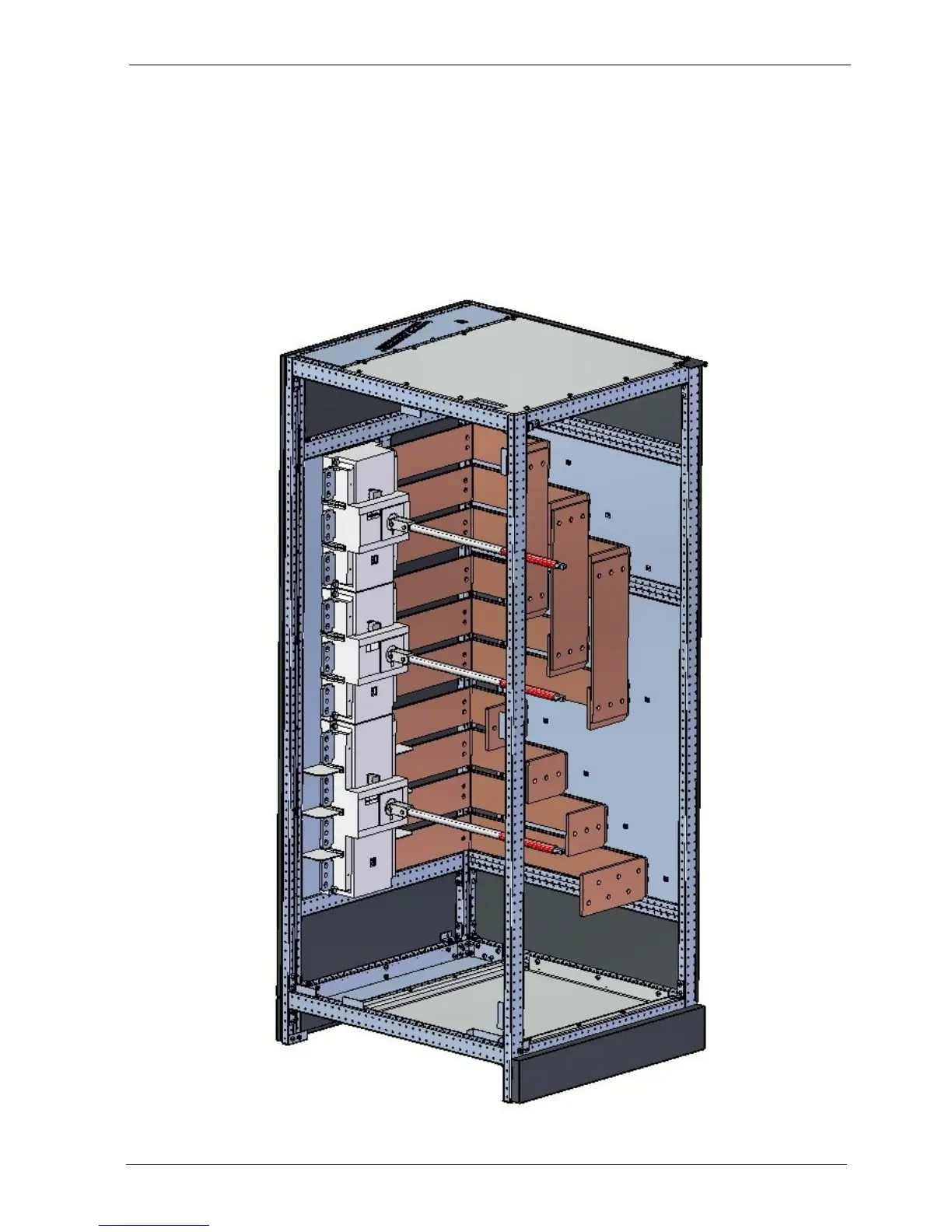

1 In the switches cabinet, remove the external door and the secondary access panels.
