Liebert EXL S1 CONNECTIVITY PANELS
User Manual 10H52226UM60 - Rev. 1 - 01/2017
66
4. CONNECTIVITY PANELS
4.1. LCD touch screen

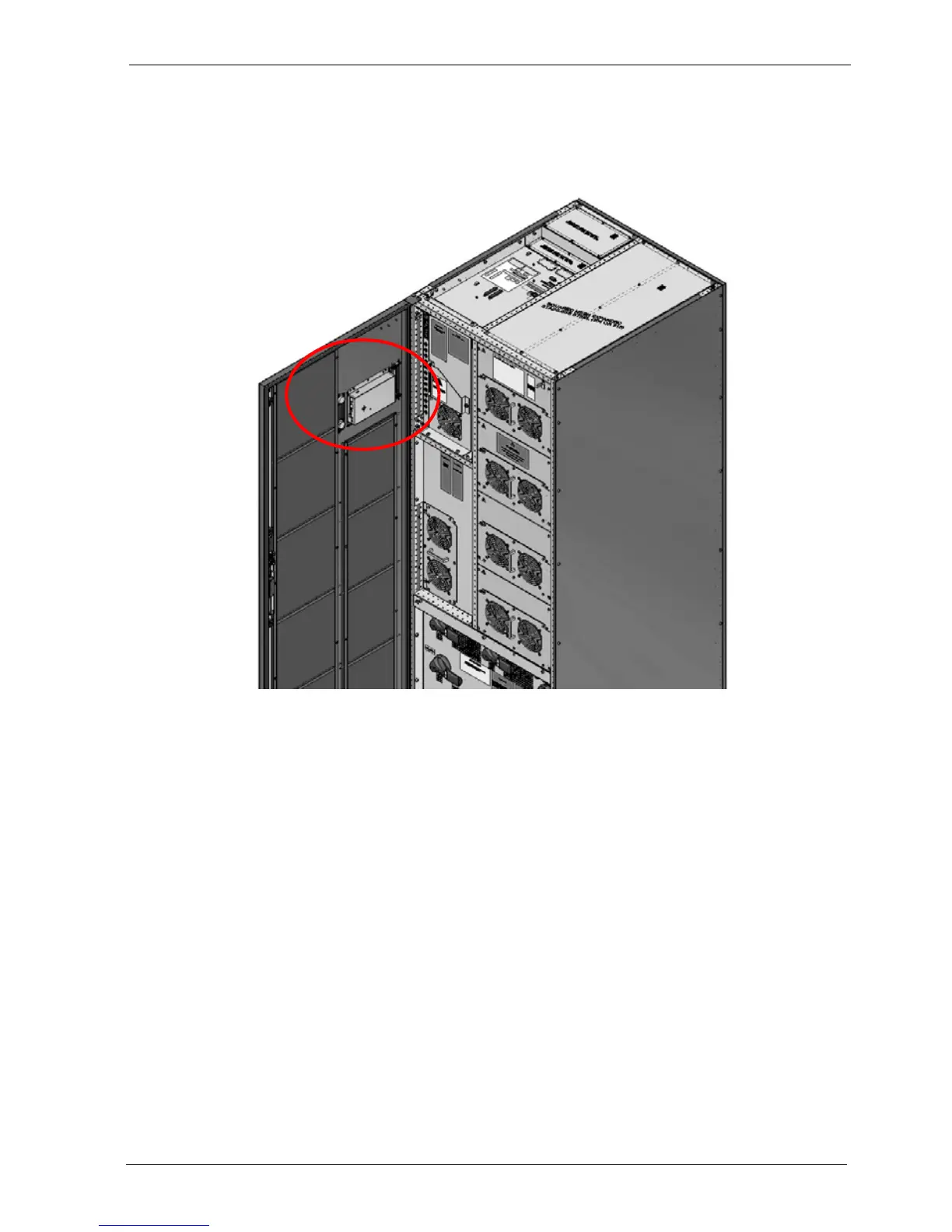

LCD is placed on the door as shown in Fig. 39.
Figure 39 - LCD touch
screen Liebert EXL S1 is equipped with the following interfaces:
• ETHERNET 2 - provision for future options
• ETHERNET 1 - RJ-45 Ethernet Interface for Service and Placement into service only
4.1.1. ETHERNET 2 - provision for future options
4.1.2. ETHERNET 1 - RJ-45 Ethernet Interface for Service and Placement into
service only
This interface is a 10/100 MBit autonegotiation full/half duplex Ethernet Interface for LAN
communication with Vertiv service software. This allows the setup and implementation of UPS
parameters such as Battery detail and performance of the UPS.
The Interface is SELV - isolated from UPS primary circuits.
