Liebert EXL S1 Options
User Manual 10H52226UM60 - Rev. 1 - 01/2017
98

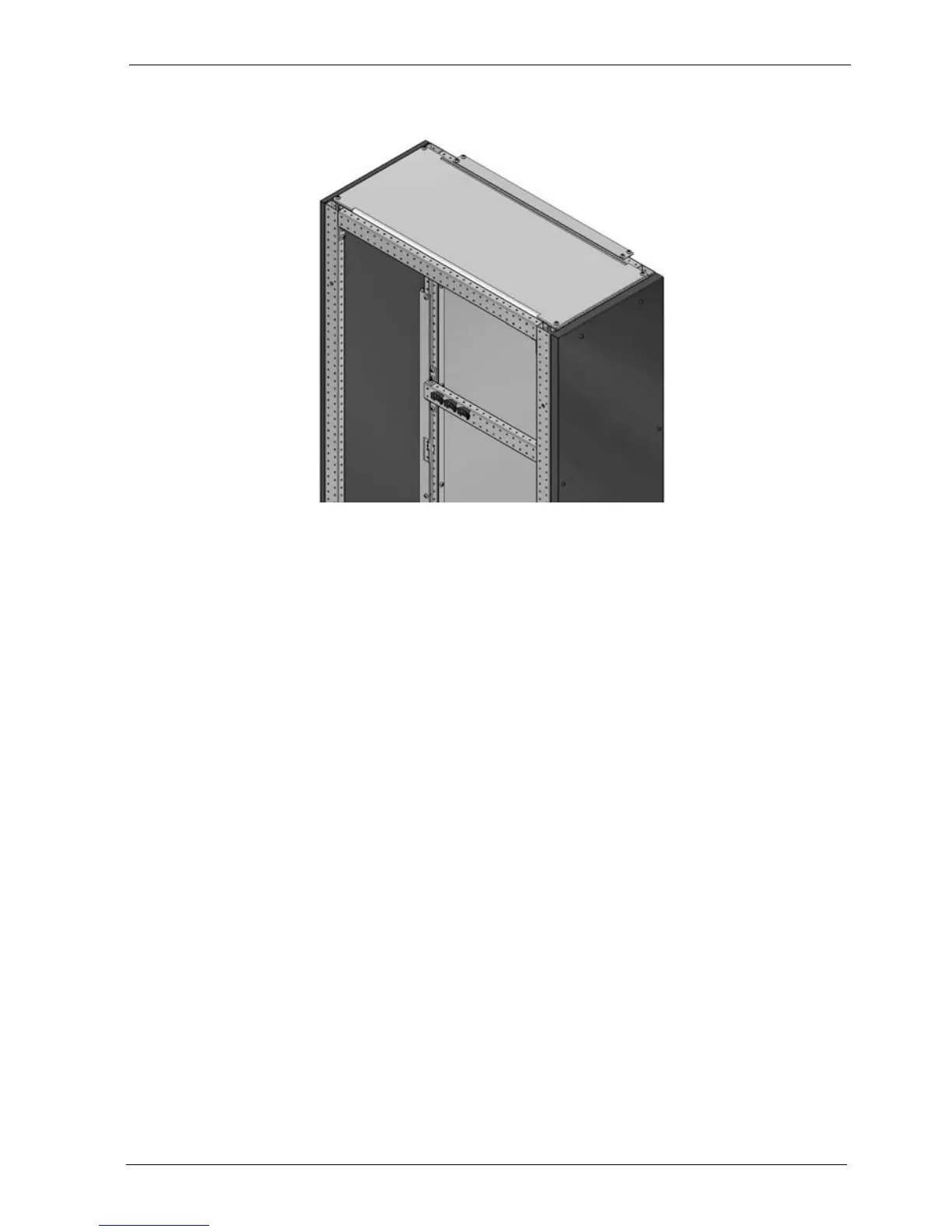

If necessary, fix the cables to the mounting using the base cable fixing. These materials are loose
supplied.
Mount the lateral painted panel previously removed on the side of TCE.
8.3. Empty battery compartment
These compartments consist of:
• Compartment
• Disconnecting device
•Safety panel
• Connection terminals
8.4. MopUPS shutdown and monitoring software
For details, see http://connectivity.chloridepower.com
8.5. ManageUPS adapter
For details, see http://connectivity.chloridepower.com
8.6. MBSM (up to 6 UPS)
The MBSM is a device which is basically studied to provide on its outputs a frequency reference signal
(spitted in a certain number of channels = normally 6). This signal is a square wave generated by an
incoming source reference or by an internal quartz. Each UPS connected to the MBSM is able to
receive the frequency reference signal and, under particular conditions, to automatically phase lock
the inverter.
Each UPS composing the system is supplied by a common electrical bus; the UPS Synchronization
source (reference) is per default the power source connected on its reserve input and, as a
consequence, being the power source common to all the UPS, the inverters outputs will be in
synchronism.
