Liebert EXL S1 Installation
User Manual 10H52226UM60 - Rev. 1 - 01/2017
48

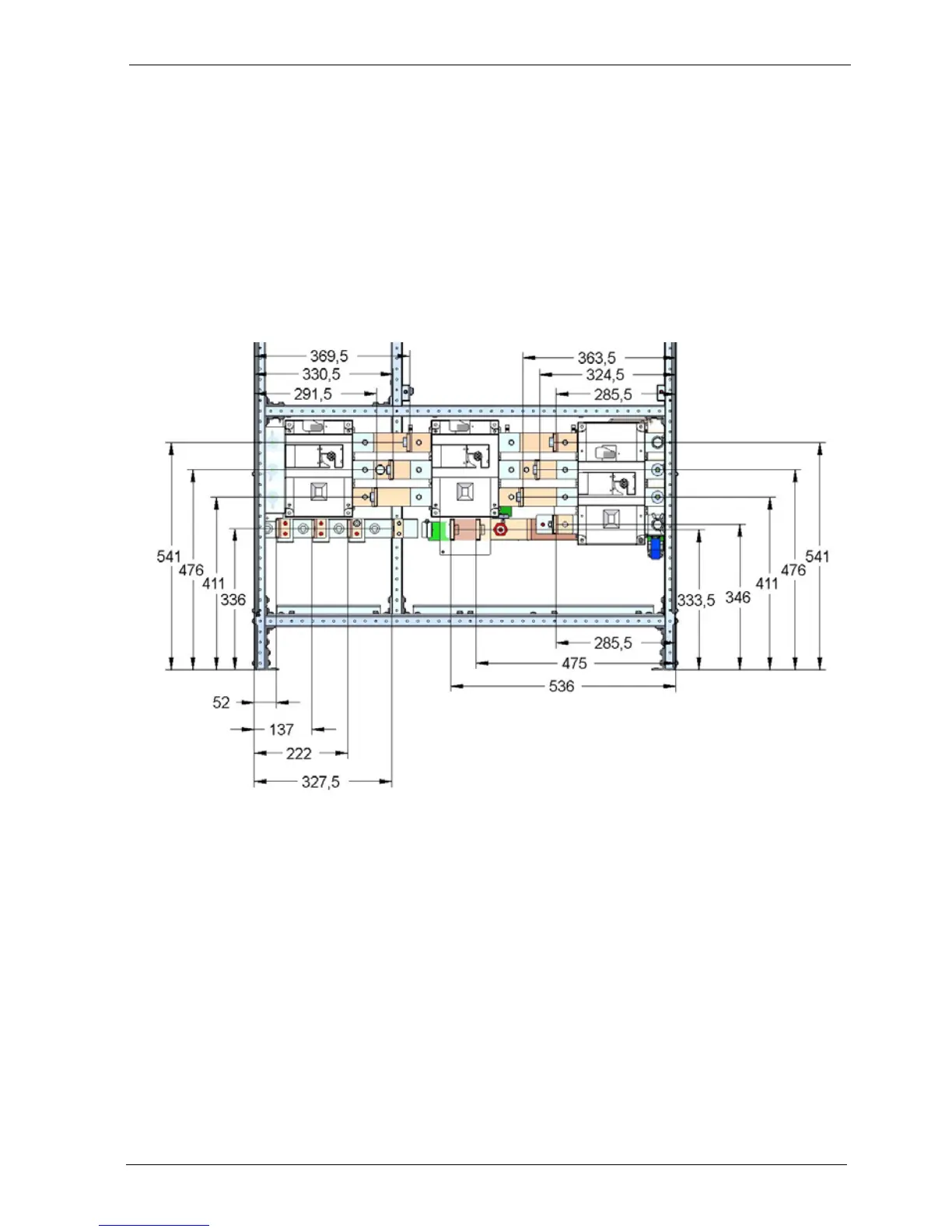

Figure 24 - Liebert EXL S1 300/400 kVA
Customer power connections (front view)
W1
V1
U1
U
V
W
W2
V2
U2
PE
D-
C+
N
