Liebert EXL S1 CONNECTIVITY PANELS
User Manual 10H52226UM60 - Rev. 1 - 01/2017
68
Liebert EXL S1 is equipped with the following interfaces:
• XS3 - Slot for Connectivity Products
• XS6 - Slot for LIFE
TM
modem
• XP6 - Serial Interface for external LIFE
TM
• XP10 - EPO connector
• XP11 - Input Connector
• XP12 - Output Connector
• XP31 - RJ-45 Interface for synchronization with external signal
• X29 - 3 pole screw connector for Backfeed output contact
• XP4 - 2 pole Battery Area Temperature sensor (input)
• XP19A/B - 2x37 pole connectors for parallel UPS connection

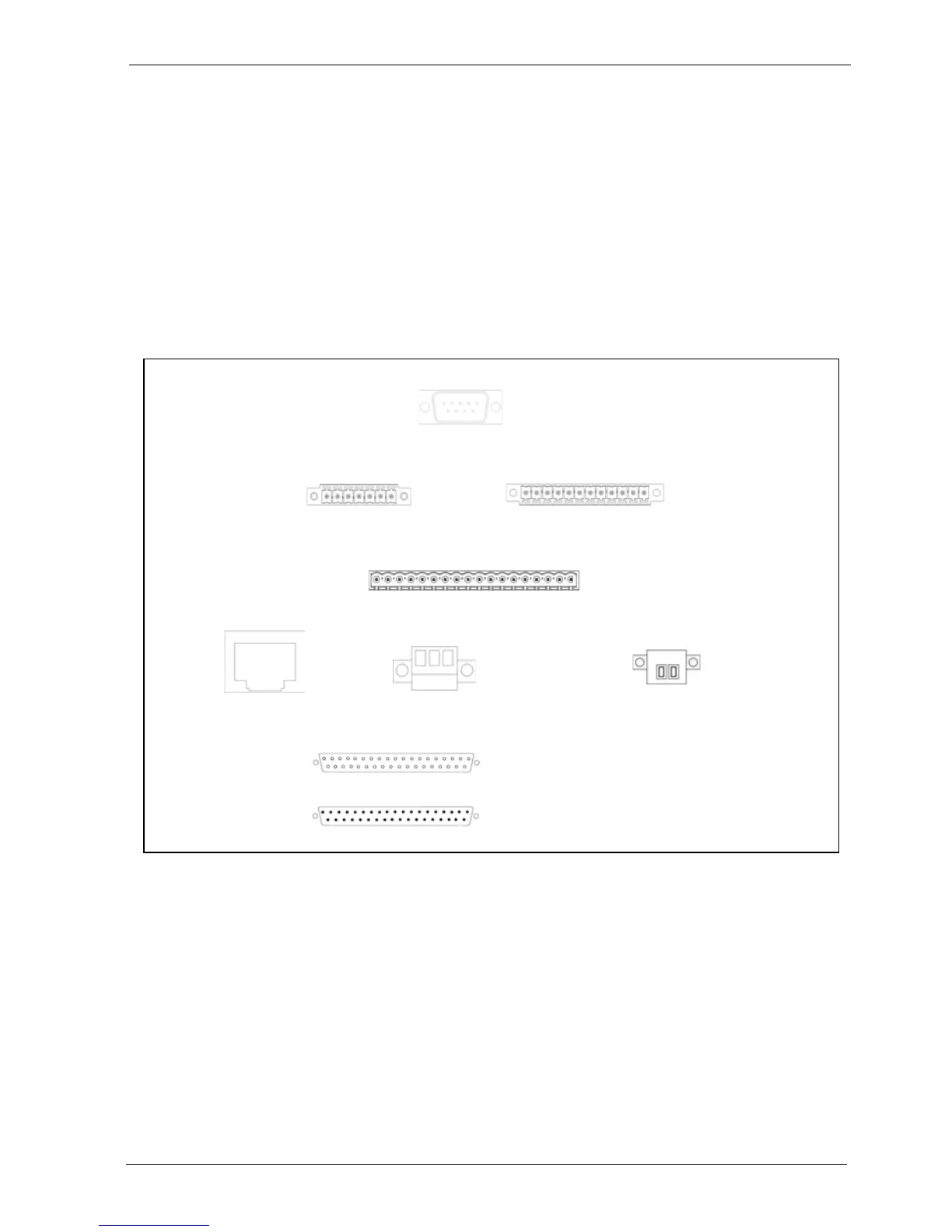

Figure 41 - Connector/terminal identification
XP31 - RJ-45
X29 - screw connector, 3-pole
1
XP6 - SUB-D 9-pin male
1
9
1
XP10 - 7 pin male
1
XP11 - 12 pin male
1
XP12 - 18 pin male
XP4 - screw connector, 2-pole
XP19A - SUB-D 37-pin female
XP19B - SUB-D 37-pin male
1
1
37
1
37
