3.3.2 Installation Clearances
Maintain at least 4in.(100mm) clearance in the front and rear of the UPS. Do not obstruct the air inlets on
the front panel and rear panel of the UPS. Blocking the air inlets reduces ventilation and heat dissipation,
shortening the service life of the unit.
3.4 Installing the UPS
The UPS may be installed as a tower or in a rack, depending on available space and use considerations.
Determine the type of installation and follow the appropriate instructions. See Tower Installation below or
Rack Installation on the facing page.
NOTE: When installing the UPS or making input and output connections, comply with all relevant
safety codes and standards
3.4.1 Tower Installation
To install the GXT4 as a tower:
1. Take the support bases out of the accessories box.

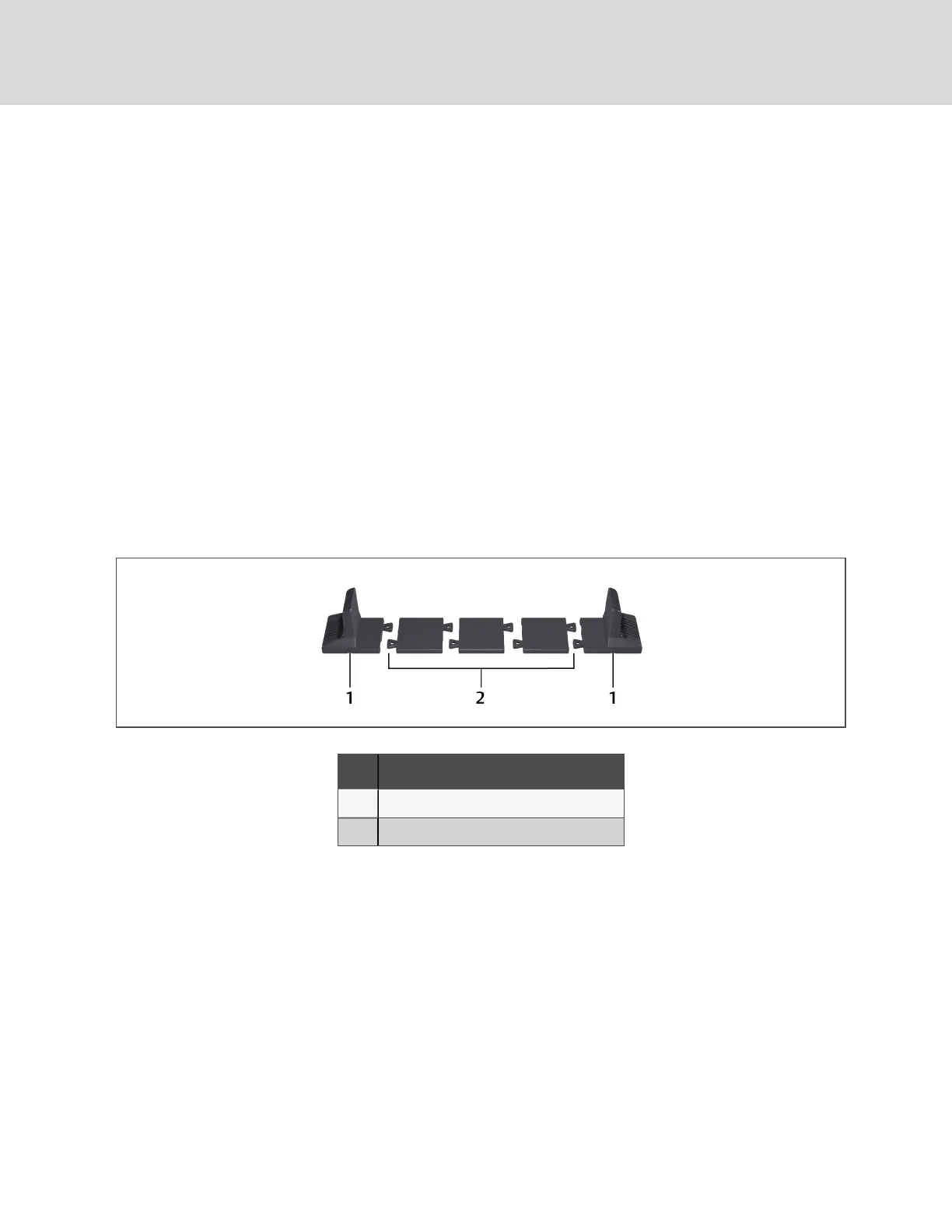

Figure 3.1 Support bases
NO. DESCRIPTION
1 Support bases
2 Spacers with connectors
2. If optional, Liebert® external battery cabinets will be connected, take out the spacers shipped
with the battery cabinet.
3. Connect the spacers and the support bases as shown in Figure 3.1 above. Each GXT4 requires
2support bases, one in the front and one in the rear.
4. Adjust the direction of the operation and display panel and logo on the GXT4.
a. Remove the front plastic bezel cover as shown the following figure.
b. Pull the operation and display panel gently, rotate it 90 degrees clockwise and snap it
back into position, as shown.
c. Pull the logo on the front plastic bezel cover gently, rotate it 90 degrees clockwise and
snap it back into position.
d. Replace the front plastic bezel cover.
The operation and display panel and logo have been rotated 90 degrees clockwise, for
upright viewing.
