Model #
Figure #in Figure 10.3 on
the previous page
Importance Factor I
ρ
= 1.0 Importance Factor I
ρ
= 1.5
Maximum
Compressive
Reaction lb
Maximum Anchor
Maximum
Compressive
Reaction lb
Maximum Anchor
Tensile
lb
Shear
lb
Tensile
lb
Shear
lb
MCL165
Single Circuit
without Receiver
Figure 6 158 39 62 181 73 93
Single Circuit with
Receiver
Figure 7 153 38 65 170 73 97
* All loads are calculated per ASCE 7-05, Chapter 13.6 Sds = 2.0, R
ρ
= 6.0, a = 2.5
Source: DPN002414 Rev. 3
Table 10.3 Seismic anchoring loads for a three-fan Liebert MC

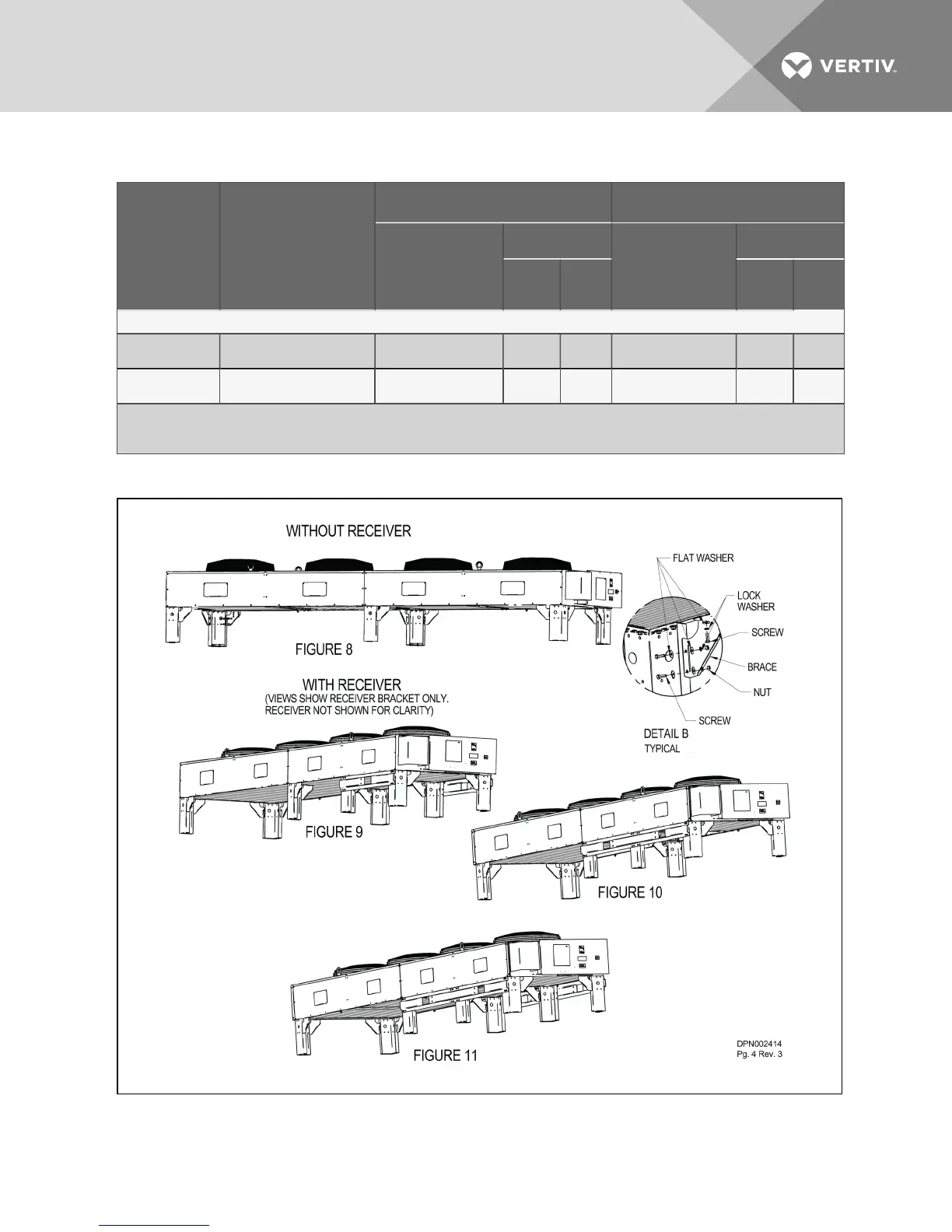

Figure 10.4 Seismic anchorage loads for a four-fan Liebert MC
Vertiv | Liebert® MC™ Installer/User Guide | 104
