5.2.1 Field Piping Guidelines foraLiebertDXSystemandLiebertMCCondenser

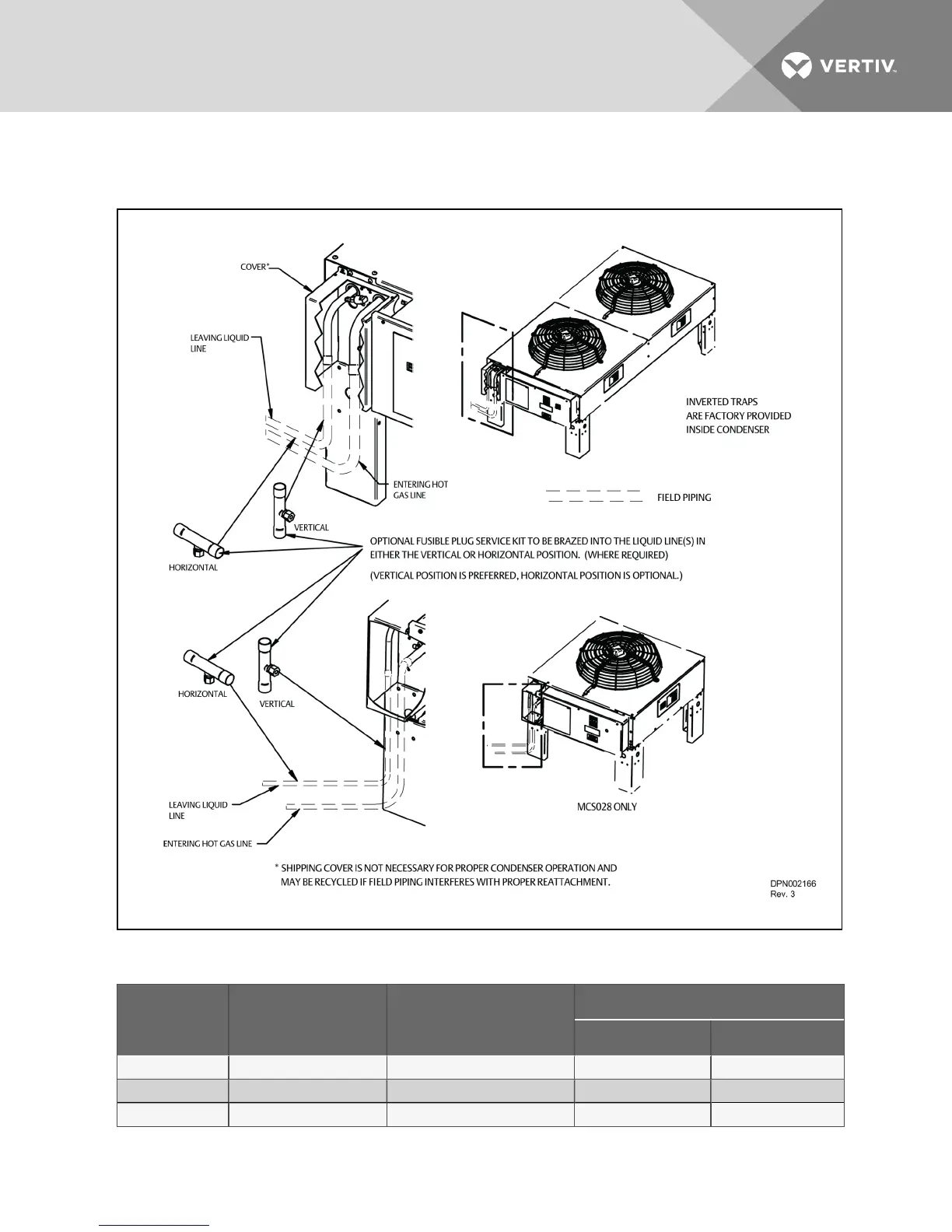

Figure 5.7 Liebert MC Condenser piping—Single-circuit, 1-, 2-, 3- and 4-fan units
Model No. Number of Fans Condenser Circuits
Connection Sizes, OD, in (mm)
Hot Gas Line Liquid Line
MCS028 1 1 7/8 5/8
MCM040 1 1 7/8 5/8
MCM080 2 1 1-1/8 7/8
Table 5.1 Liebert MC Condenser piping sizes—Single-circuit units
Vertiv | Liebert® MC Installer/User Guide | 62
