Model No. Number of Fans Condenser Circuits
Connection Sizes, OD, in (mm)
Hot Gas Line Liquid Line
MCL055 1 1 1-1/8 7/8
MCL110 2 1 1-3/8 1-1/8
MCL165 3 1 1-3/8 1-1/8
MCL220 4 1 1-5/8 1-3/8
Source: DPN002166, Rev. 3
Table 5.1 Liebert MC Condenser piping sizes—Single-circuit units (continued)

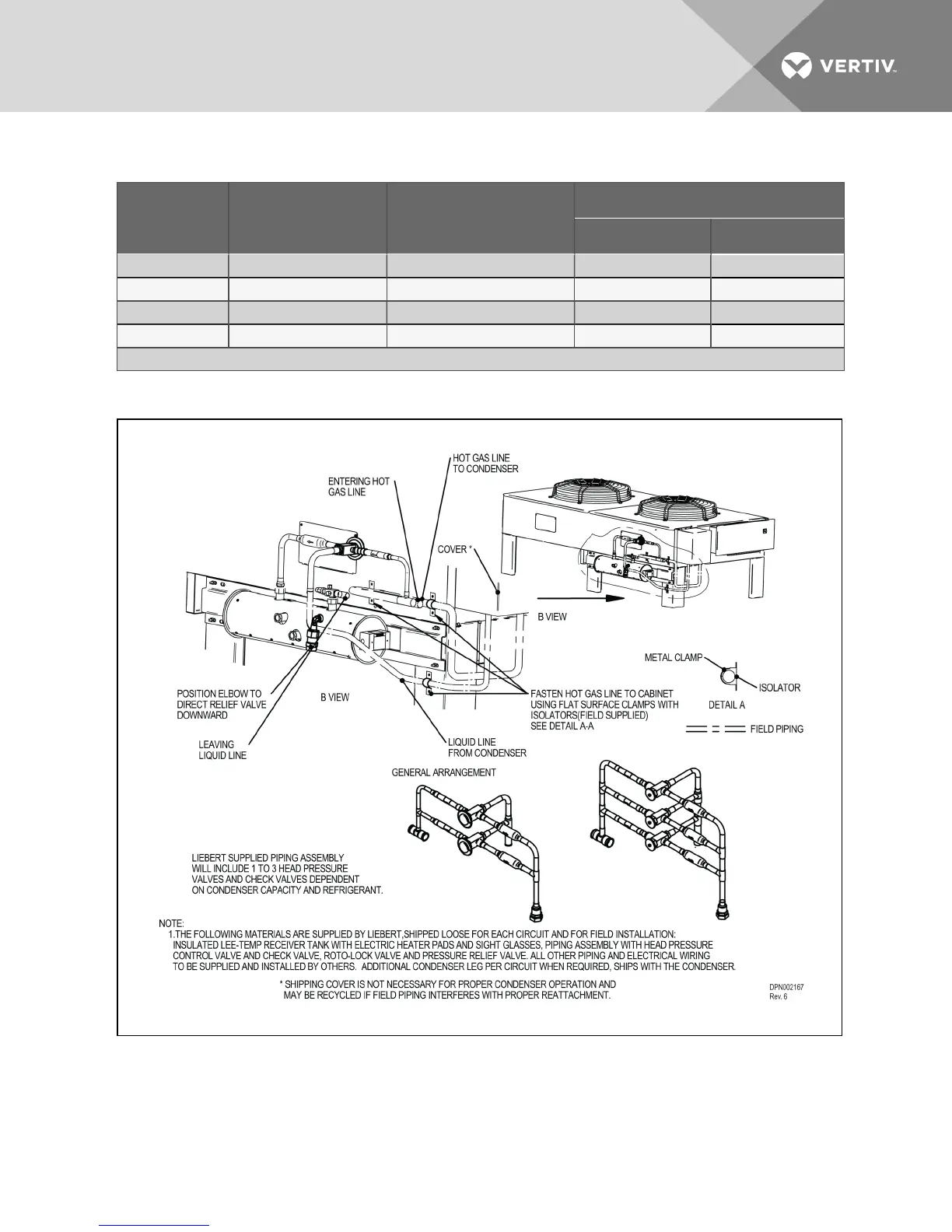

Figure 5.8 Condenser piping for single-circuit condensers (with Liebert Lee-Temp
™
)
Vertiv | Liebert® MC™ Installer/User Guide | 63
