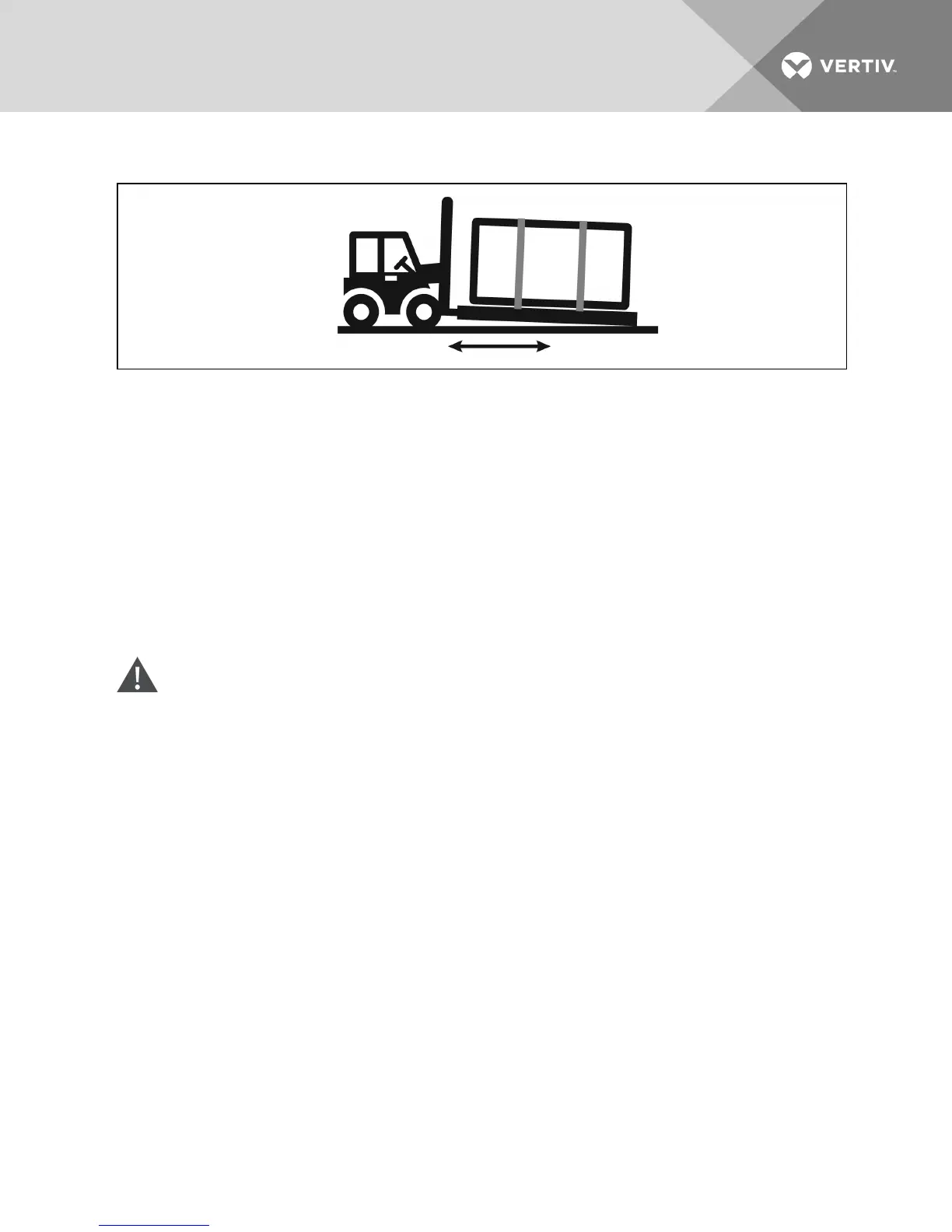

Figure 3.2 Forklift position with 1- to 4-fan condensers
Using a Crane
• Vertiv™ recommends using slings rated for the unit weight.
• Spreader bars must be used for sling stability and to keep the slings from pressing against the
unit. Make sure spreader bars are wider than the unit.
• Place the slings near the ends of the unit, under the top deck boards of the skid.
3.3 Unit Storage
Store the condenser in the original packaging in an area protected from excessive dirt, debris and
contact damage until final installation.
3.4 Unpacking the Condenser—All Unit Sizes
CAUTION: Risk of contact with sharp edges, splinters and exposed fasteners. Can cause
personal injury.
Only properly trained and qualified personnel wearing appropriate safety headgear, gloves,
shoes and glasses should attempt to move, lift, remove packaging from or prepare unit for
installation.
Refer to Figure 3.3 on the next page for the following steps:
1. Remove the fence for domestic packaging (for export packaging, remove the crate).
2. Remove the exterior foam from around the unit and the electric box.
3. Remove the steel straps securing the unit to the skid.
4. Set the legs aside, but keep accessible if legs are shipped together with the unit.
• Depending on the number of fans, more or less steel straps may be removed at this step.
5. Remove corrugated panels covering the condenser’s coil(s).
6. Remove the bolts securing unit to the skid.
7. Remove the bolts securing the brackets to the unit and recycle the brackets.
Vertiv | Liebert® MC™ Installer/User Guide | 29
