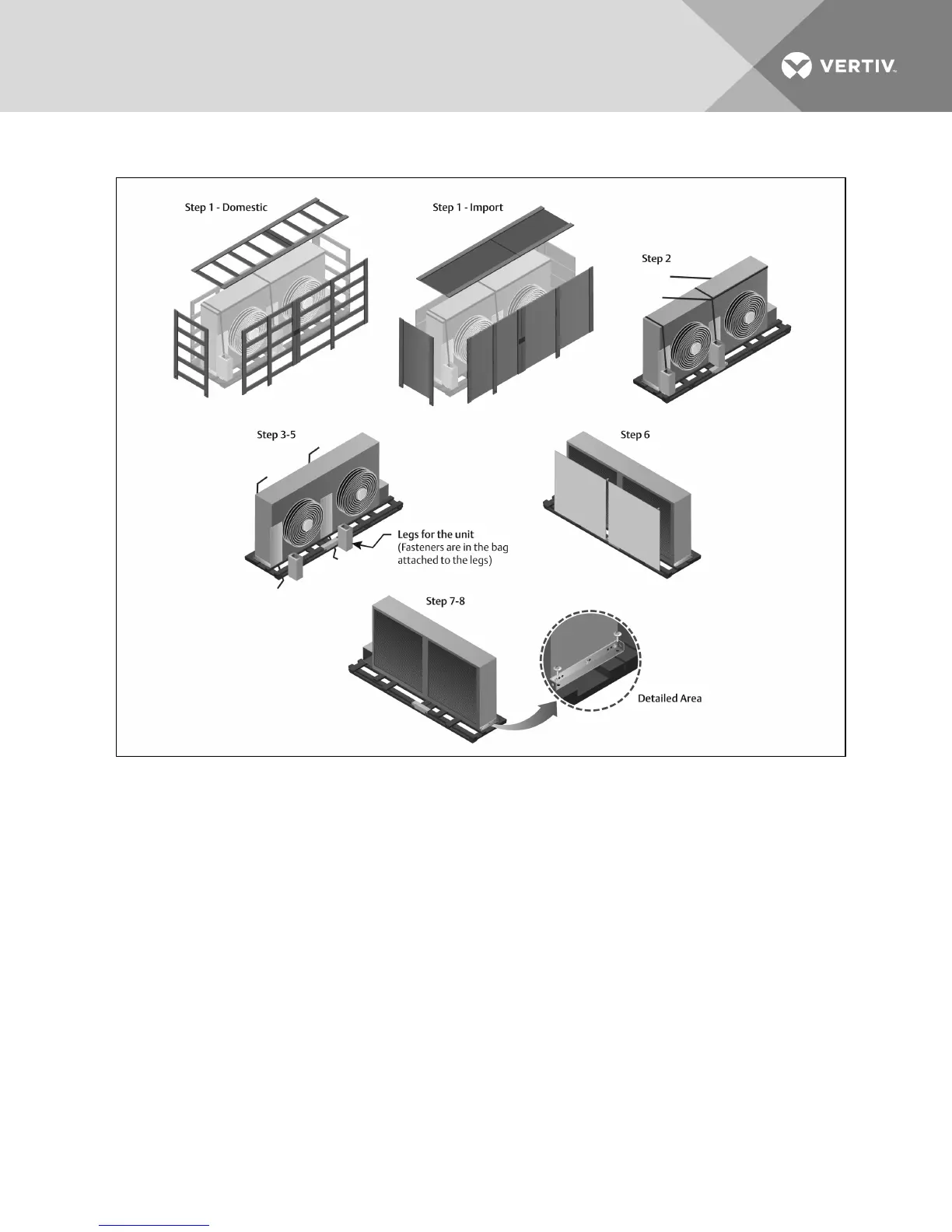

Figure 3.3 Removing protective material
3.5 Preparing a Condenser for Moving and Installation
The following procedure is one method for removing a Liebert condenser from its shipping skid. Other
methods may be used, provided that they are safe for personnel, the condenser and other equipment.
3.5.1 Attaching 18" (457mm) Legs, RemovingtheSkidandAttachingSlings
NOTE: Units supplied with 36-60” (914-1524mm) legs go to Attaching36to60in.
(914to1524mm)Legs, RemovingtheSkidandAttaching Slings on page33.
1. Attach legs to the unit at indicated locations, using the fasteners provided with the legs.
• Recommended tools for attachment is a 1/2” (13mm) socket and ratchet.
• More legs may be available for installation than are shown. This will depend on the unit
type and number of fans.
Vertiv | Liebert® MC™ Installer/User Guide | 30
