Vertiv Liebert MCM080 - Attaching 36 to 60 In. (914 to 1524 MM) Legs, Removing the Skid and Attaching Slings

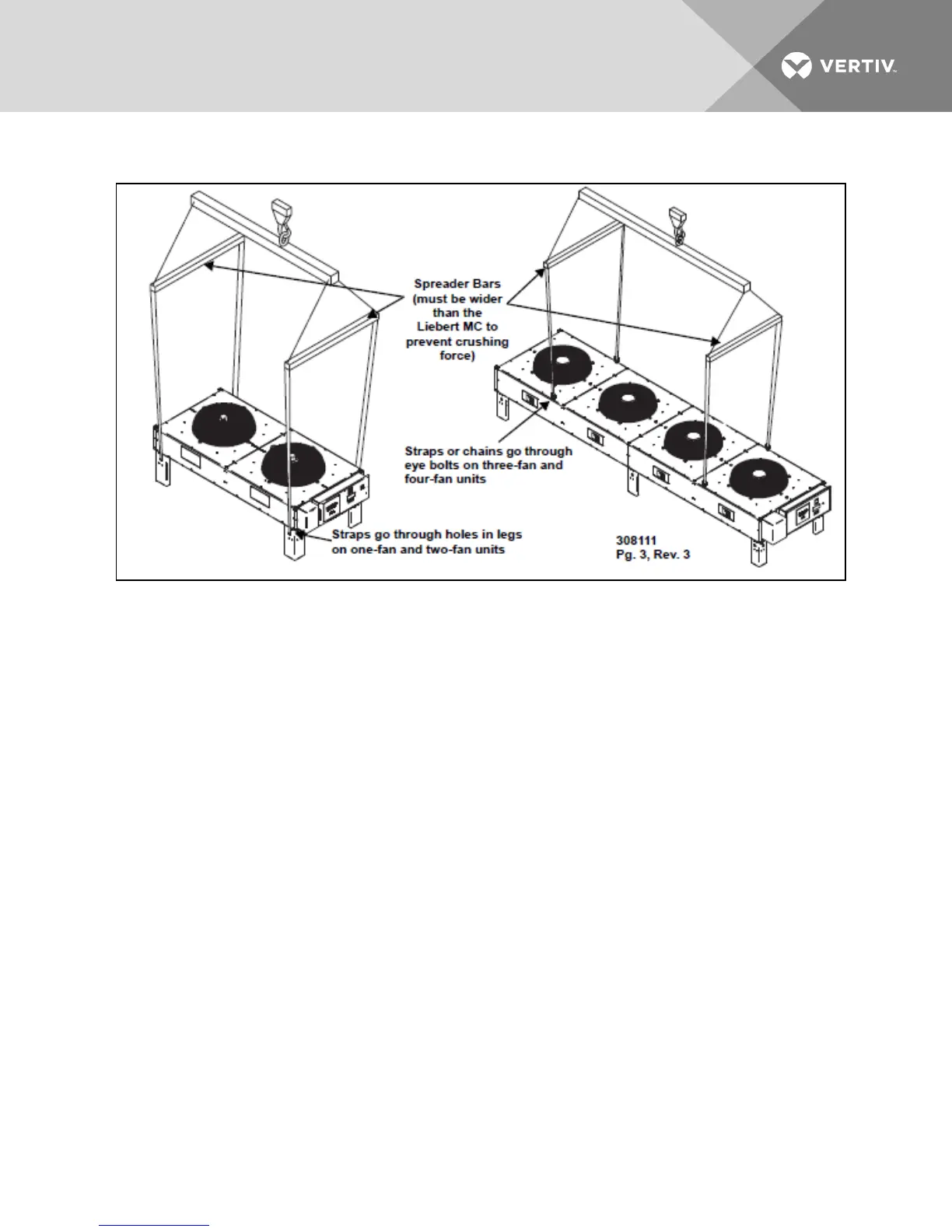

Figure 3.7 Rigging to lift condensers
3.5.2 Attaching36to60in.(914to1524mm)Legs, RemovingtheSkidandAttaching
Slings
1. Install bolts for sling-containment guides during lifting/rotation:
• Locate the recommended bolt locations shown in Figure 3.8 on the next page.
• Insert 4 leg bolts, 2 on each end, leaving approximately 1/4in. (6mm) of the fastener
threads exposed.
• Do not inser bolt in the secondary bolt locations. These are used to attached the legs
after the unit is moved into the installation location.
2. Assemble the leg structure according to the instructions supplied with the legs. Cross-bracing
for 4legs is shown in Figure 3.8 on the next page.
NOTE: When assembling the leg structure, DO NOT tighten the cross-brace hardware until the
condenser cabinet is fastened to the legs.
Vertiv | Liebert® MC™ Installer/User Guide | 33
