4. Lift the unit 24" (610mm) off the top deck of the skid.
5. Remove the skid from under the unit.
6. To rotate the unit, a mechanized method is recommended, but if one is not available, use a
minimum of four properly-protected individuals to rotate the elevated unit 90 degrees so the
unit legs are pointing toward the ground, Figure 3.6 below.
7. Set the upright unit on the ground so the legs support unit weight.
8. Remove the straps from around unit.

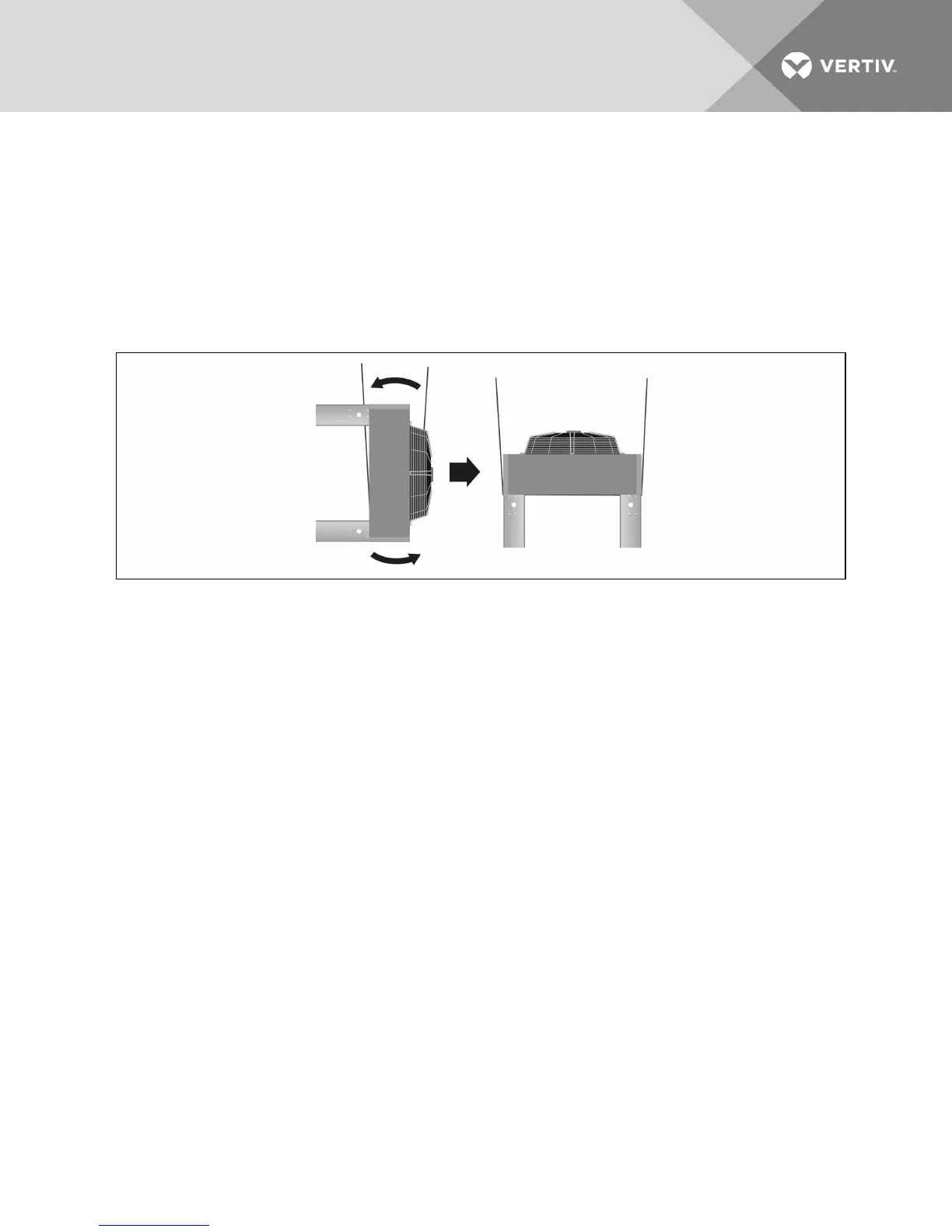

Figure 3.6 Rotate and set condenser on floor
9. Refer to Figure 3.7 on the facing page to attach rigging for lifting.
Spreader bars are still required. Make sure that the spreader bars are wider than the unit to
prevent crushing force.
• 1-fan and 2-fan units: Route the straps through the large holes in the side of the legs.
• 3-fan and 4-fan units: Secure straps or chains to the eye bolts on top of the unit.
NOTICE
Risk of improper lifting. Can cause equipment damage.
Make sure that the spreader bars wider are than the unit. If the spreader bars are too short, the slings may
crush the unit.
The unit is ready to be lifted and moved to its installation location.
