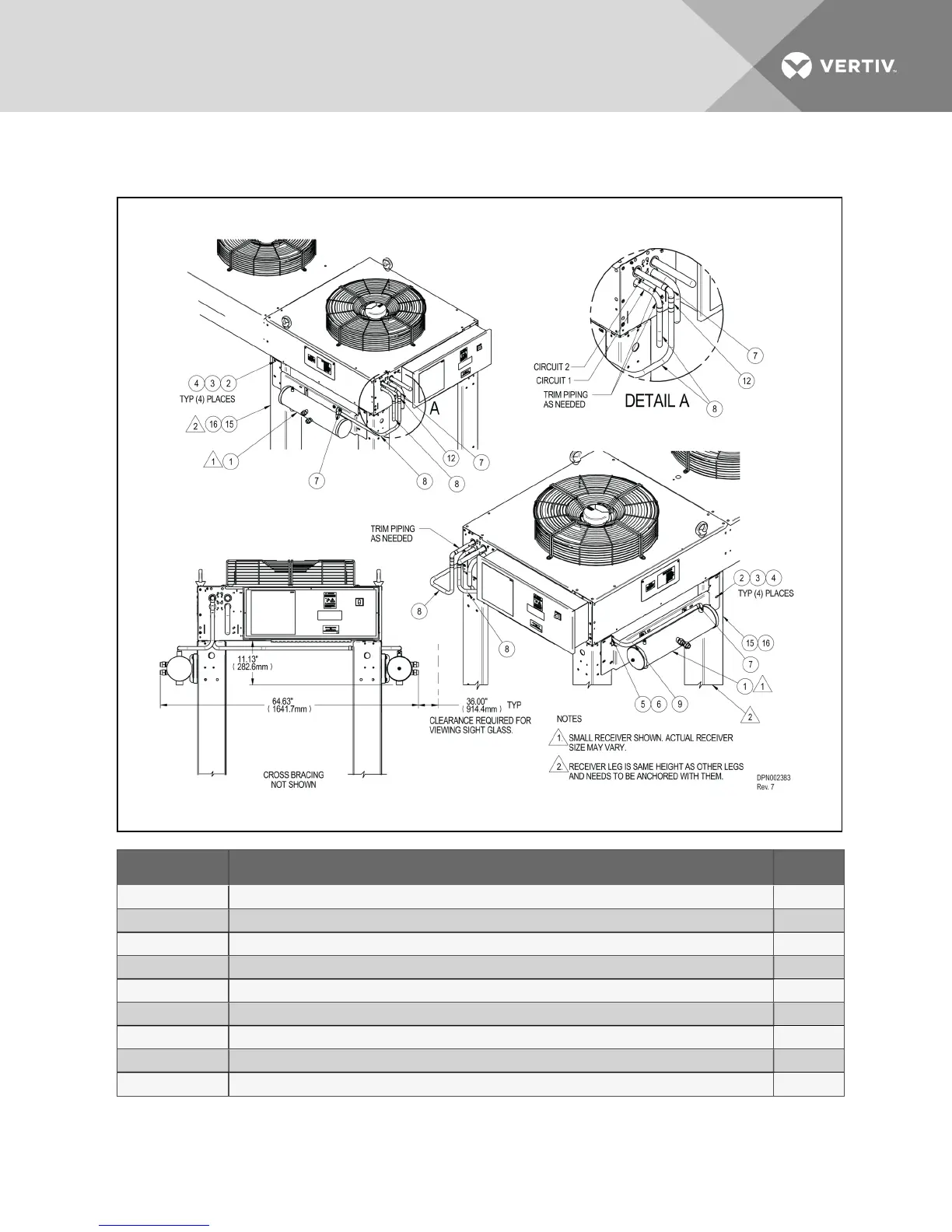

Figure 5.16 Typical receiver Liebert DSE mounting, MCM160 dual-circuit condenser,
twooutletreceivers
Item No. Description Qty
1 Receiver and Bracket Assembly 2
2 Cap Screw HXDIN933M8-1.25X25A2 12
3 Fender Washer DIN9021 M8X24 A2 20
4 Lock Nut Hex NYL INSR M8 12
5 Clamp Omega 7/8” 1
6 Screw SD HWH YZ 10-16 x 5/8 2
7 90° Elbow FTGXC 7/8” Copper 3
8 Copper Formed Tube 7/8” 2
9 Copper Formed Tube 7/8” 1
